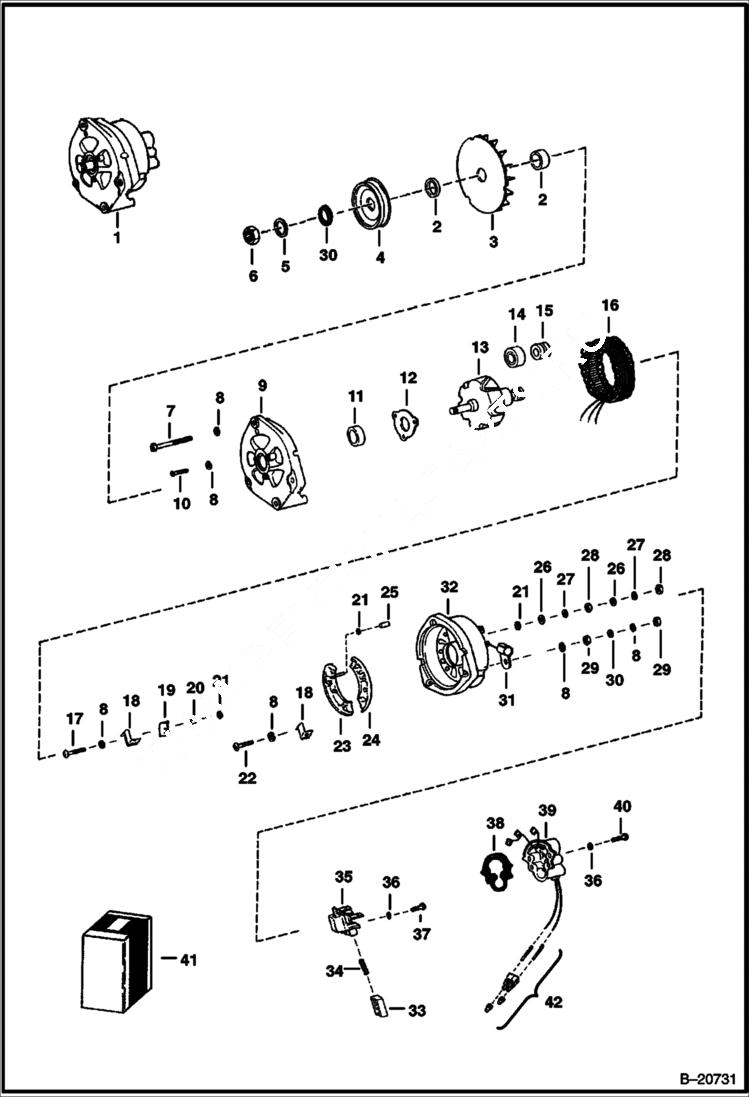

Запчасти Bobcat Articulated Loaders ALTERNATOR (Melroe) ELECTRICAL SYSTEM

1

6632211

ALTERNATOR Less Fan & Pulley

2

6632210

WASHER

3

6632209

FAN

4

6646599

PULLEY Was 6632386 - A

5

6632208

WASHER

6

NUT NLA - Was 6632207 - A

7

6632222

BOLT thru

8

WASHER NSS

9

6632224

BRACKET W/Ref. 8 & 10-12

10

SCREW NSS

11

BEARING NSS

12

RETAINER NSS

13

6632229

ROTOR W/Ref. 14 & 15

14

BEARING NSS

15

SLIP RING NSS

16

6632230

STATOR

17

BOLT NSS

18

CLAMP NSS

19

MOLD-U NSS

20

BUSHING NSS - insulation

21

WASHER NSS - insulation

22

SCREW NSS

23

HEATSINK NSS

24

HEATSINK NSS

25

BUSHING NSS - insulation

26

WASHER NSS

27

WASHER NSS

28

NUT NSS

29

NUT NSS

30

6632323

WASHER

31

6632242

CONDENSER

32

6632231

BRACKET W/Ref. 8 & 17-31

33

BRUSH NSS

34

SPRING NSS

35

6632248

BRUSH HOLDER W/Ref. 33 & 34

36

WASHER NSS

37

SCREW NSS

38

6632253

GASKET

39

6632384

KIT regulator - W/Ref. 36 & 38-40

40

SCREW NSS

41

6632381

KIT bearing - W/Ref. 11, 14 & 15

41

6632382

KIT external hardware - W/Ref. 8, 21, 26-30, 36, 37 & 40

41

6632383

KIT internal - W/Ref. 8, 17-22 & 25

41

6632385

KIT brush holder - W/Ref. 33-37

42

6577456

KIT weather-pak connector includes both male & female parts
