Запчасти Bobcat Articulated Loaders BRAKE (SY-TEC) MICO/(S/N 13190 & Above) HYDROSTATIC SYSTEM

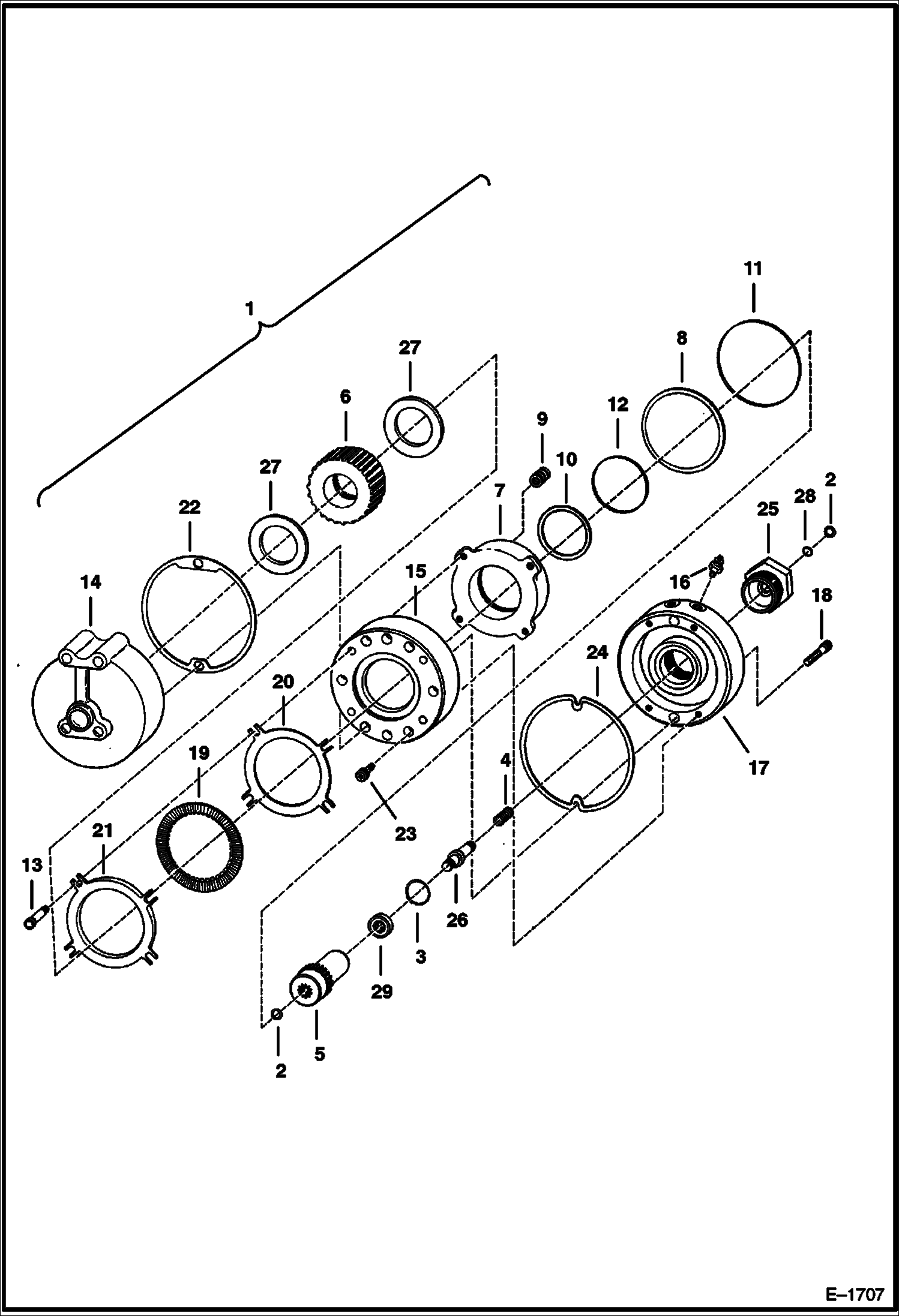

Схема запчастей Bobcat Articulated Loaders - BRAKE (SY-TEC) MICO/(S/N 13190 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6585588

BRAKE ASSY

2

710779

RING

3

664140

RING

4

6632014

SPRING

5

6632011

SHAFT

6

6632010

SPLINE

7

6631999

PISTON

8

6632016

RING back-up

9

6672576

SPRING Was 6632015 - A

10

6632017

RING back-up

11

25K40408

O RING 10

12

25K40224

O RING 10

13

6564599

BOLT

14

6632018

COVER

15

PLATE NSS - Was 6632019 - A

16

6632021

SCREW

17

PLATE NLA - Was 6632020 - A

18

73G740

BOLT

19

6646663

ROTOR Was 6632022 - A

20

6646661

STATOR Was 6632023 - A

21

6646660

PRIMARY Was 6632024 - A

22

6632025

SEAL

23

6632029

BOLT

24

6632028

SEAL

25

6632027

NUT

26

ROD NLA - Was 6632026 - A

27

6632012

WASHER thrust

28

25K20016

O RING 10

29

6632013

BEARING

Выбрано товаров: 29
