Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY (S/N 13061 & Above) HYDROSTATIC SYSTEM

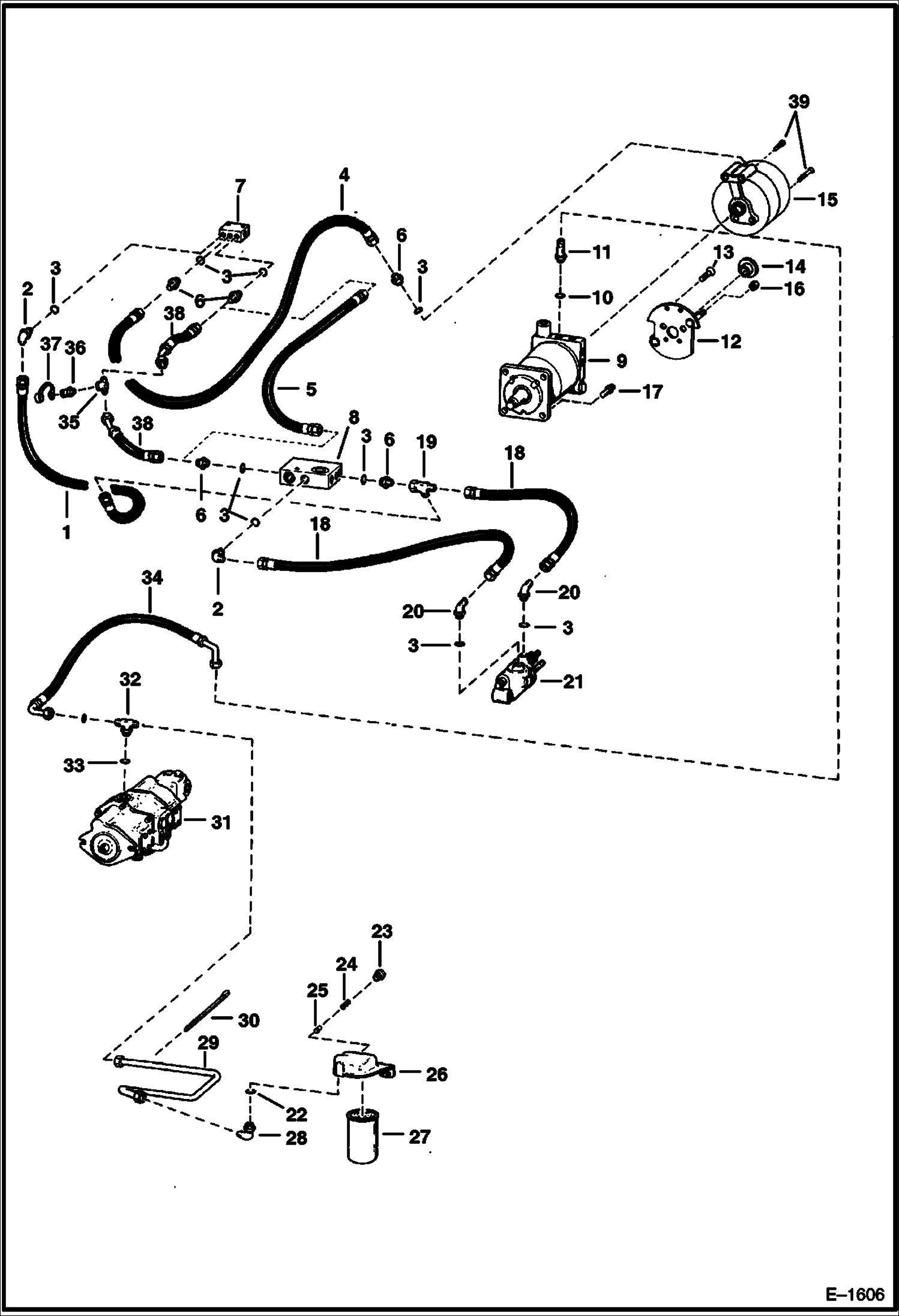

Схема запчастей Bobcat Articulated Loaders - HYDROSTATIC CIRCUITRY (S/N 13061 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

1902362

HOSE

2

17K3

ELBOW W/Ref. 3

3

79K4

O RING 10

4

1516790

HOSE

5

6584484

HOSE

6

18K3

ELBOW W/Ref. 3

7

VALVE See Illustration BRAKE LINKAGE/ C2380 BRAKE

8

BLOCK See Illustration PORT BLOCK/ C2873 PORT

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1590A

10

79K8

O RING 10

11

16K6

FITTING W/Ref. 10

12

PLATE NLA - Was 6584866 - A

13

95G816

SCREW

14

6584867

BUSHING pilot

15

BRAKE See Illustration BRAKE (SY-TEC)/ E1707 See Illustration BRAKE (AUSCO)/ C2834 See BTI227

15

6585588

BRAKE ASSY

16

85D8

NUT, 5

17

94G820

BOLT

18

1516789

HOSE

19

21K3

CONNECTOR W/Ref. 3

19

13K3

TEE Use W/15K-3 Adapter

20

18K3

ELBOW W/Ref. 3

21

SERVO See Illustration SERVO/ B20720 See Illustration SERVO/ D1587

22

79K10

O RING 10

23

6557476

PLUG

24

6553897

SPRING

25

6515078

POPPET

26

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

27

6515541

ELEMENT

28

17K7

ELBOW W/Ref. 22

29

6584500

TUBE Was 6584373 - A

30

6624289

STRAP, TIE

31

PUMP See Illustration HYDROSTATIC PUMP/ B20618

32

6561477

TEE W/Ref. 33

33

79K12

O RING 10

34

6584106

HOSE

35

TEE NLA - Was 99F000003B - A

36

6630813

COUPLER diagnostic

37

6630367

CAP

38

6584484

HOSE

39

73G832

BOLT W/Ref. 15 (6585588 brake)

Выбрано товаров: 41
