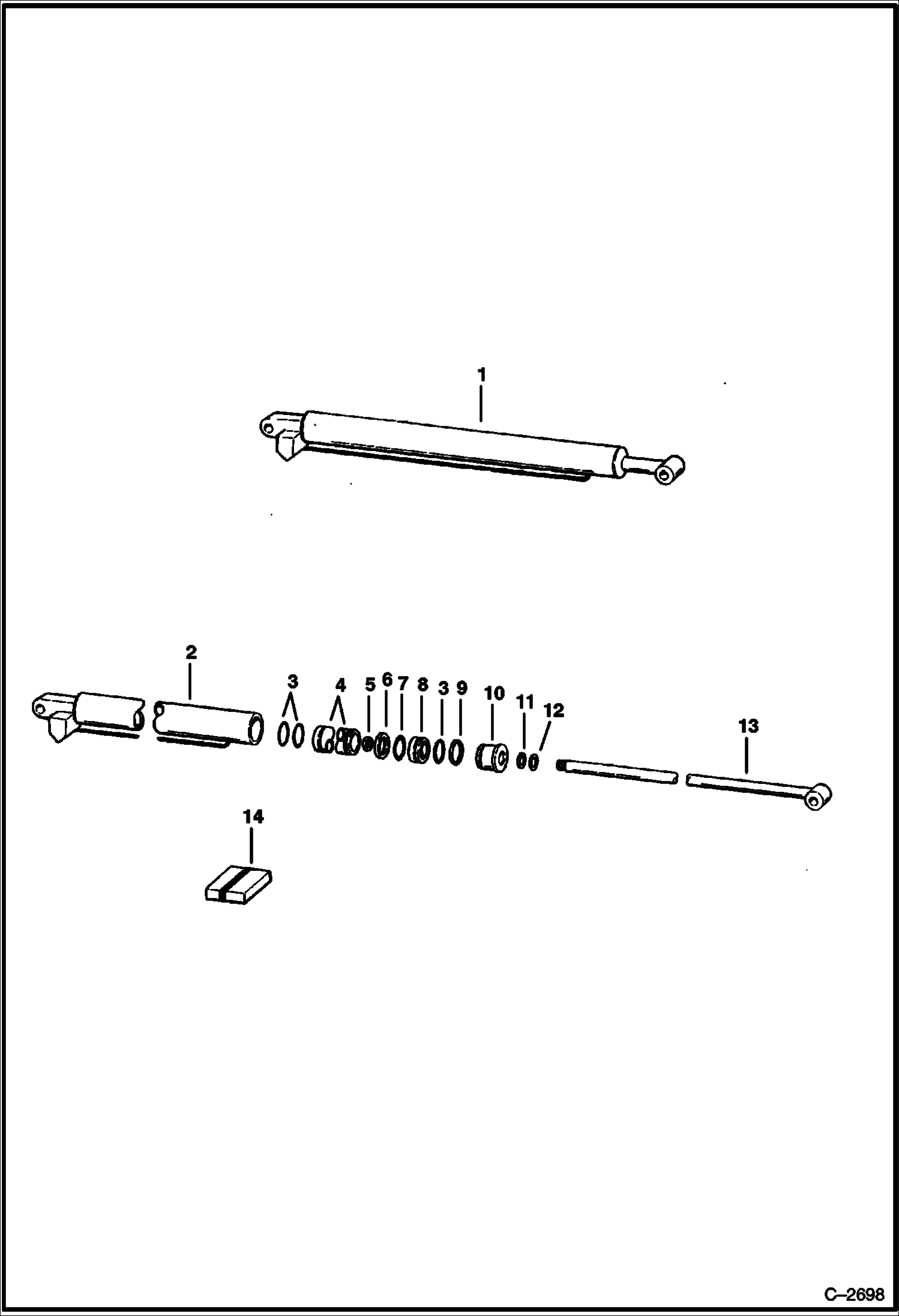

Запчасти Bobcat Articulated Loaders TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Was 6561154 - A

2

6592049

CASE

3

25K40224

O RING 10 Was 54K040224B - B

4

6591664

STOP

5

6810539

NUT Was 6804592 - A

6

947088

RING, BACK-UP

7

25K30218

O RING 10 Was 54K030218B - B

8

6803870

PISTON Was 6553912 - A

9

73K232

RING, BACK-UP back-up - Was 80K000232B - B

10

6588912

HEAD Was 6530332 - A

11

6667326

SEAL U-Cup - Was 6538141 - B

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6591663

SHAFT

14

7135537

SEAL KIT W/Ref. 3, 6, 7, 9, 11 & 12 - Was 6804702 - A
