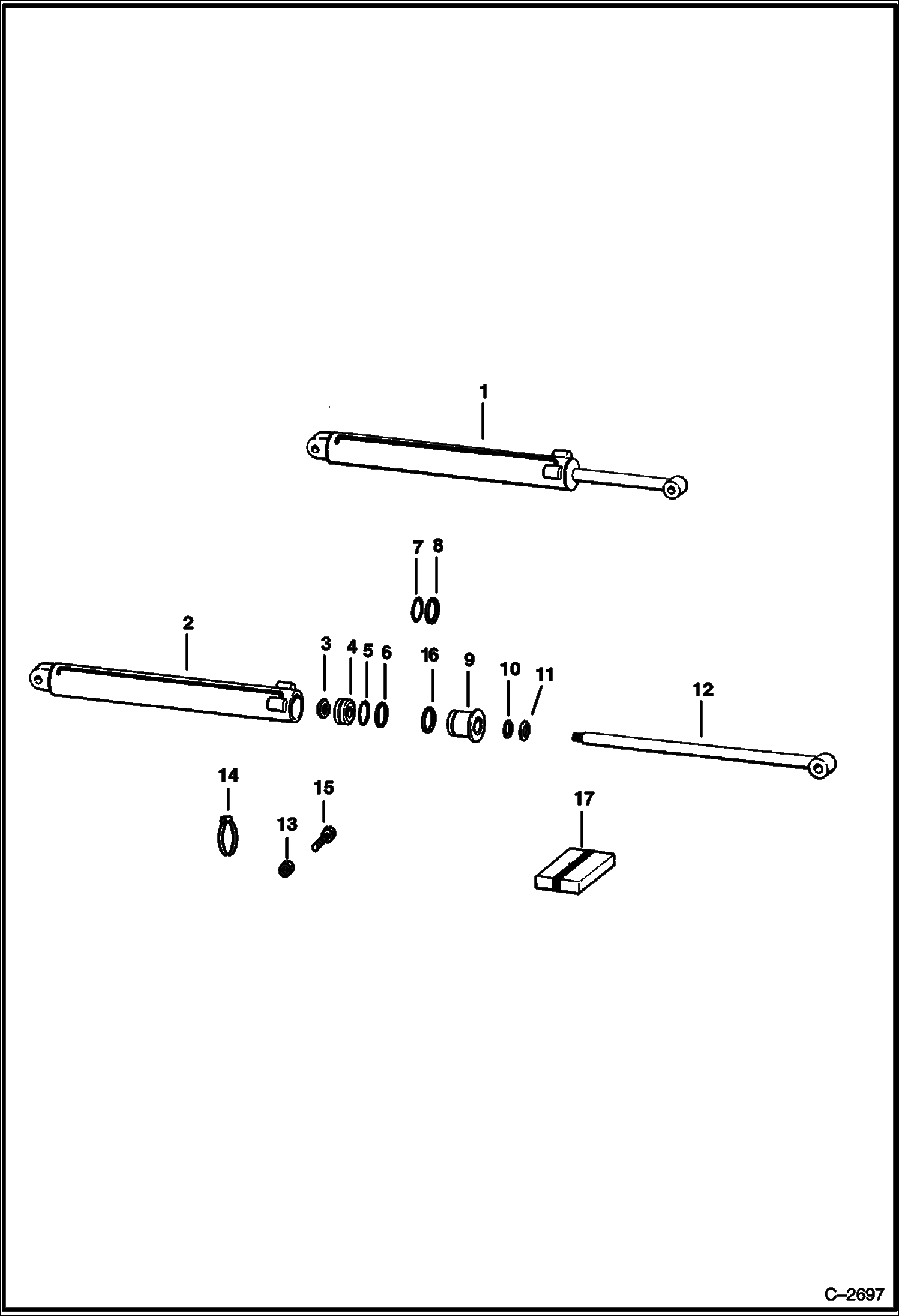

Запчасти Bobcat Articulated Loaders LIFT CYLINDER HYDRAULIC SYSTEM

1

6584227

CYLINDER

2

6592050

CASE

3

6810539

NUT Was 6804592 - A

4

6546505

PISTON

5

25K30300

O RING 10 Was 54K30300 - A

6

1530265

PISTON SEAL

7

O RING 10 NLA - Order Ref. 16 - Was 58K338 - B

8

RING NAp - Order Ref. 16 - Was 73K338 - B

9

6544544

HEAD

10

6671153

SEAL Was 6519867 - A

11

6686998

WIPER, ROD CYL Was 6666545 - A

12

6591659

ROD

13

85D5

NUT 5

14

6585283

CLAMP

15

17C516

BOLT

16

7008353

SEAL, QUAD

17

7196893

KIT, SEAL Ref. 3, 5, 6, 10, 11 & 16 - Was 7137575 - A
