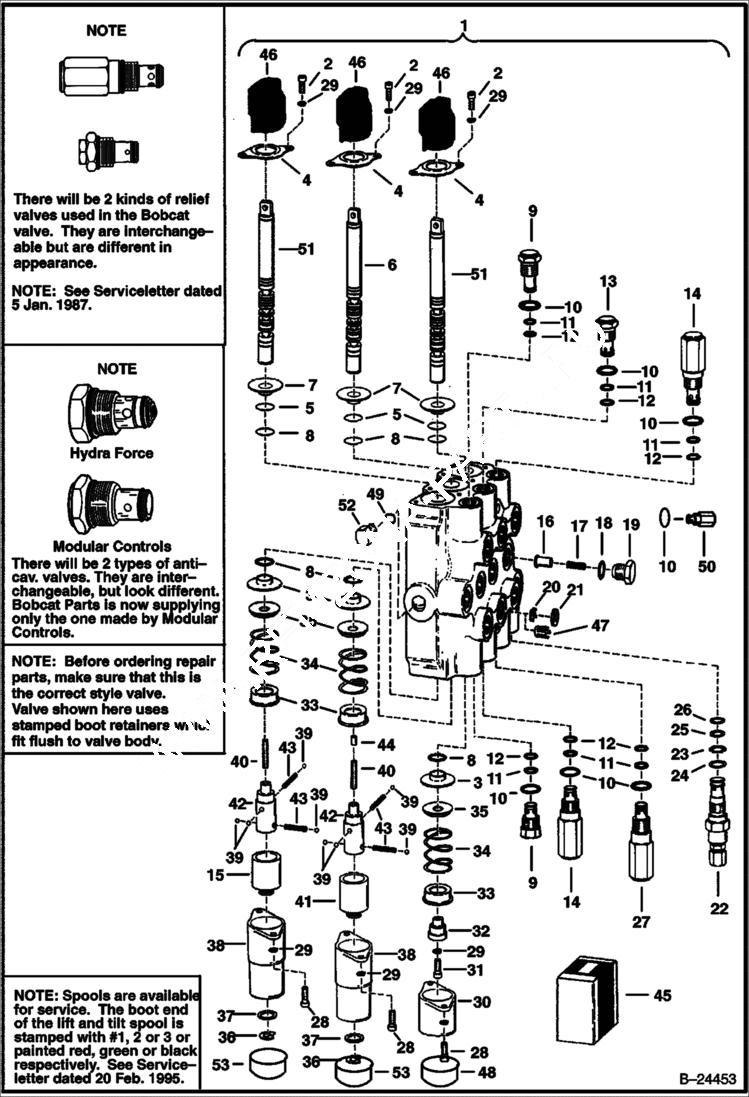

Запчасти Bobcat Articulated Loaders CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE NLA Ref. 2-45

1

SHORT BLOCK NLA - Ref. 2-8, 15 & 44 - Order Ref. 1

2

29G412

BOLT

3

6595663

BUSHING W/ Part No. 6595663 Stamped On Port

4

6589564

RETAINER

5

1K127

O-RING 10 Was 93K127 - A

6

6666582

SPOOL Lift - #1 Or Red

6

6666583

SPOOL Lift - #2 Or Green

6

6666584

SPOOL Lift - #3 Or Black

7

6589565

BUSHING

8

6665846

SEAL

9

6592720

PLUG W/Ref. 10-12

10

79K10

O RING 10

11

80K14

BACK-UP WASHER Was 73K000014B - B

12

58K014

O-RING 10 back-up washer required

12

6677106

O-RING BACK-UP WASHER NOT REQUIRED

13

6667549

VALVE Anti-cavity Check - SEE NOTE - W/Ref. 10-12

14

6599161

RELIEF VALVE Relief - SEE NOTE - W/Ref. 10-12

15

6593349

SLEEVE Aux.

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT Load Check

20

6592112

ORIFICE .187/.195

21

6593680

RETAINER

22

6659328

VALVE Main Relief

23

WASHER NSS - Back-up

24

O-RING NSS

25

WASHER NSS - Back-up

26

O-RING NSS

27

6682568

VALVE Relief - SEE NOTE - W/Ref. 10-12

28

29G416

BOLT

29

22E4

WASHER

30

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

31

30G416

BOLT

32

6592109

ADAPTER

33

6592100

COLLAR

34

6587580

SPRING

35

7211397

WASHER, SPRING Was 6587523 - A

36

799119

RING

37

6592098

WASHER

38

6589226

COVER, END 0.63'' flange

39

6592105

BALL

40

6586918

SCREW

41

6592096

SLEEVE Lift

42

6587575

ADAPTER

43

6592107

SPRING

44

6596807

PLUG plastic - 0.46'' long

44

54K20002

O'RING 10

45

6803606

SEAL KIT See BTI374 - Ref. 4, 6, 9,12-14, 19, 23-26 & 29 - Was 6803606 - A

45

6816250

KIT, SEAL See BTI374 - Ref. 8, 28 & 46 - For One Spool - Was 6803605 - A

45

6661328

SEAL KIT Ref. 23-26

45

6809425

SEAL KIT Ref. 10-12 & 18

46

6587763

BOOT SEE NOTE

47

6587318

RESTRICTOR .187/.195

48

6662848

CAP

49

95K10

O-RING

50

6664373

VALVE Relief - W/Ref. 10 - 2500PSI - Used In Tilt Cyl. Base End Part

51

6666585

SPOOL Tilt Or Aux. - #1 Or Red

51

6666586

SPOOL Tilt Or Aux. - #2 Or Green

51

6666587

SPOOL Tilt Or Aux. - #3 Or Black

52

90K7

PLUG .875-14 - W/Ref. 10 - Was 90KN00007B - A

53

6660644

CAP
