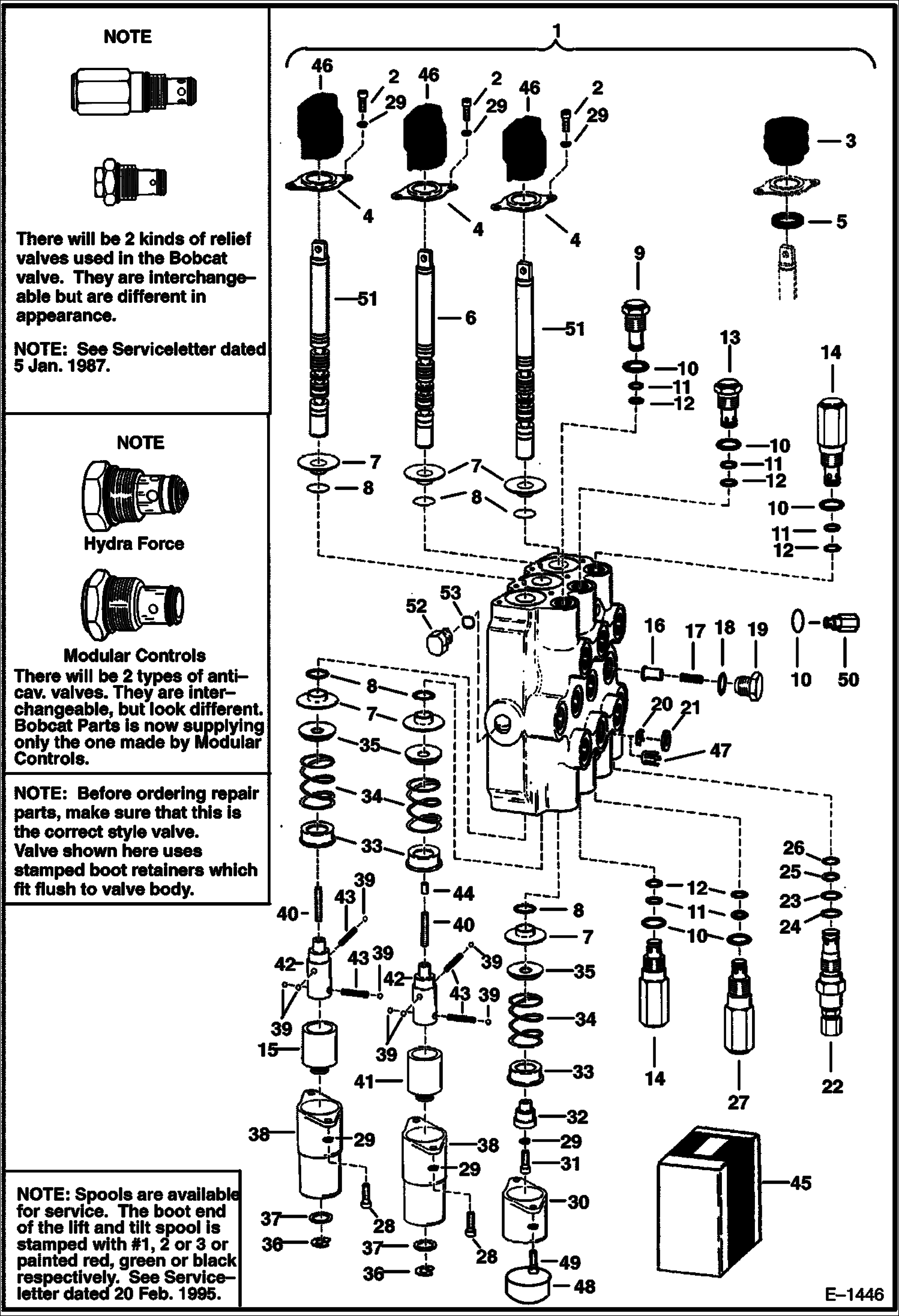

Запчасти Bobcat Articulated Loaders CONTROL VALVE (Bobcat) HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-45 - Order 6804460 - Was 6587383 - A

1

SHORT BLOCK NLA - Ref. 2-8, 15 & 44 - Order Ref. 1 - Was 6537937 - A

2

6588165

SCREW Was 73G-410 - B

3

BOOT NLA - 0rder Ref. 46 - Was 6592122 - A

4

6592123

RETAINER

5

FILTER NLA - sintered - 0rder Ref. 46 - Was 6592124 - A

6

6666582

SPOOL Lift - #1 or Red

6

6666583

SPOOL LIft - #2 or Green

6

6666584

SPOOL LIft - #3 or Black

7

6592103

BUSHING See Serviceletter 5 Jan. 87

7

6538466

BUSHING With part no. 6538466 stamped on top

8

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

8

6646372

SEAL See BTI374 quad ring seal

9

6592720

PLUG W/Ref. 10, 11 & 12

10

79K10

O RING 10 Was 79K000008B - B

11

80K14

BACK-UP WASHER Was 73K000014B - B

12

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

12

6677106

O-RING BACK-UP WASHER NOT REQUIRED

13

6667549

VALVE Anti-Cavity Check - W/Ref. 10, 11 & 12 - SEE NOTE - Was 6661345 - A

14

6599161

RELIEF VALVE W/Ref. 10, 11 & 12 - SEE NOTE

15

6593349

SLEEVE aux.

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

6592112

ORIFICE .187/.195

21

6593680

RETAINER

22

VALVE NLA - Main Relief - Pressure Preset At Factory - Was 6649322 - A

22

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

O-RING NSS

27

6682568

VALVE Relief - W/Ref. 10, 11 & 12 - SEE NOTE - Was 6599162 - A

28

6588163

SCREW Was 69G000412B - A

29

22E4

WASHER

30

BONNET NLA - W/.25''(6.35 mm) Flange - Order 6587633 , 6662848 & (2) of 6588164 - Was 6592097 - A

30

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

31

6588166

SCREW Was 74G-416 - B

32

6592109

ADAPTER

33

6592100

COLLAR

34

6587580

SPRING Was 6592106 - A

35

7211397

WASHER, SPRING Was 6587523 - A

36

799119

RING

37

6592098

WASHER

38

BONNET NLA - W/ .25 in. Flange - Order 6589226, 6660644 & (2) of 29G-416 - Was 6592094 - A

38

6589226

COVER, END 0.63'' flange

39

6592105

BALL

40

6586918

SCREW Was 6632374 - A

41

6592096

SLEEVE lift

42

6587575

ADAPTER Was 6592099 - A

43

6592107

SPRING

44

PLUG NLA - Plastic - Order 6596807 Plug & 54K-20002 O-Ring - Was 6592752 - A

44

6596807

PLUG plastic - 0.46'' long

44

54K20002

O'RING 10

45

6803606

SEAL KIT See BTI374 - Ref. 4, 6, 9,12-14, 19, 23-26 & 29 - Was 6803606 - A

45

6816250

KIT, SEAL See BTI374 - Ref. 8, 28 & 46 - For One Spool - Was 6803605 - A

45

6661328

SEAL KIT ref. 23-26 - Was 6592474 - A

45

6809425

SEAL KIT Ref. 10-12 & 18 - Was 6586461 - A

46

6587763

BOOT Remove Ref. 5 Filter When Installing Boot

47

6587318

RESTRICTOR .187/.195

48

6662848

CAP Use with 6587633 bonnet

49

6588164

SCREW

50

6664373

VALVE relief - W/Ref. 10 - 2500PSI - used in tilt cyl. base end part

51

6666585

SPOOL Tilt or Aux. - #1 or Red

51

6666586

SPOOL Tilt or Aux. - #2 or Green

51

6666587

SPOOL Tilt or Aux. - #3 or Black

52

47K7

PLUG .875-14 - W/Ref. 10

52

47K9

PLUG 1.187-12 - W/Ref. 53

53

79K14

O RING 10
