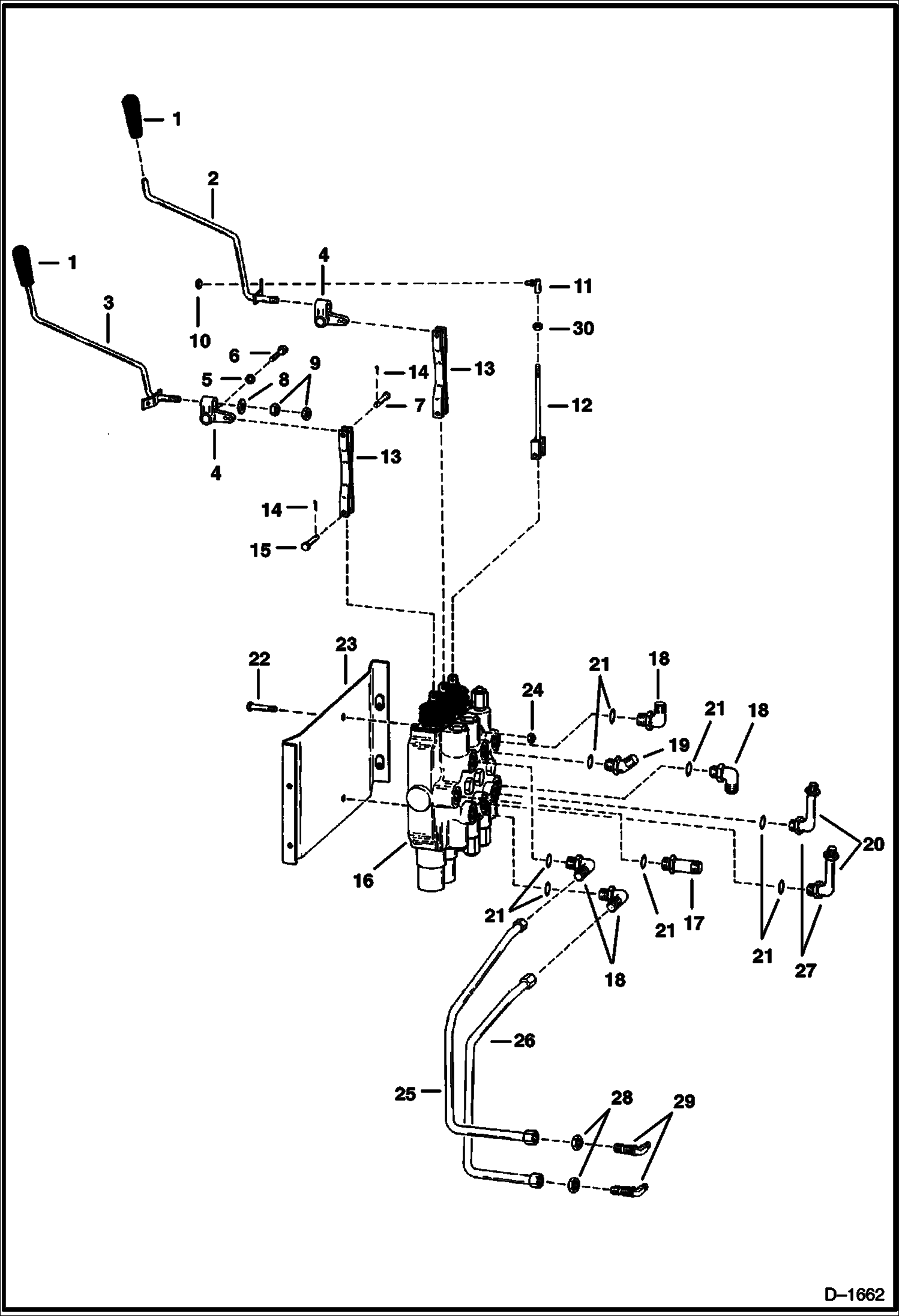

Запчасти Bobcat Articulated Loaders CONTROL LINKAGE & CIRCUITRY HYDRAULIC SYSTEM

1

GRIP NLA - Was 6514867 - A

2

6561788

LEVER

3

6561839

LEVER

4

6591949

BLOCK block

5

25E16

WSHR

6

17C510

BOLT

7

6560872

PIN

8

6599359

WASHER

9

61D8

NUT 5

10

86D5

NUT

11

6512356

BALL JOINT

12

6584990

LINKAGE

13

6584989

LINKAGE valve

14

1F308

PIN, COTTER

15

1304227

PIN

16

6592120

VALVE See Illustration CONTROL VALVE/ E1446

17

16K7

FITTING W/Ref. 21

18

17K7

ELBOW W/Ref. 21

19

18K7

FITTING W/Ref. 21

20

6584055

TUBE

21

79K10

O RING 10

22

17C560

BOLT

23

6584993

MOUNT valve

24

85D5

NUT 5

25

6585911

TUBE

26

6585912

TUBE

26

6584434

TUBE

27

15K7

FITTING W/Ref. 21

28

86F7

LOCK NUT

29

88F7

ELBOW

30

8D5

NUT
