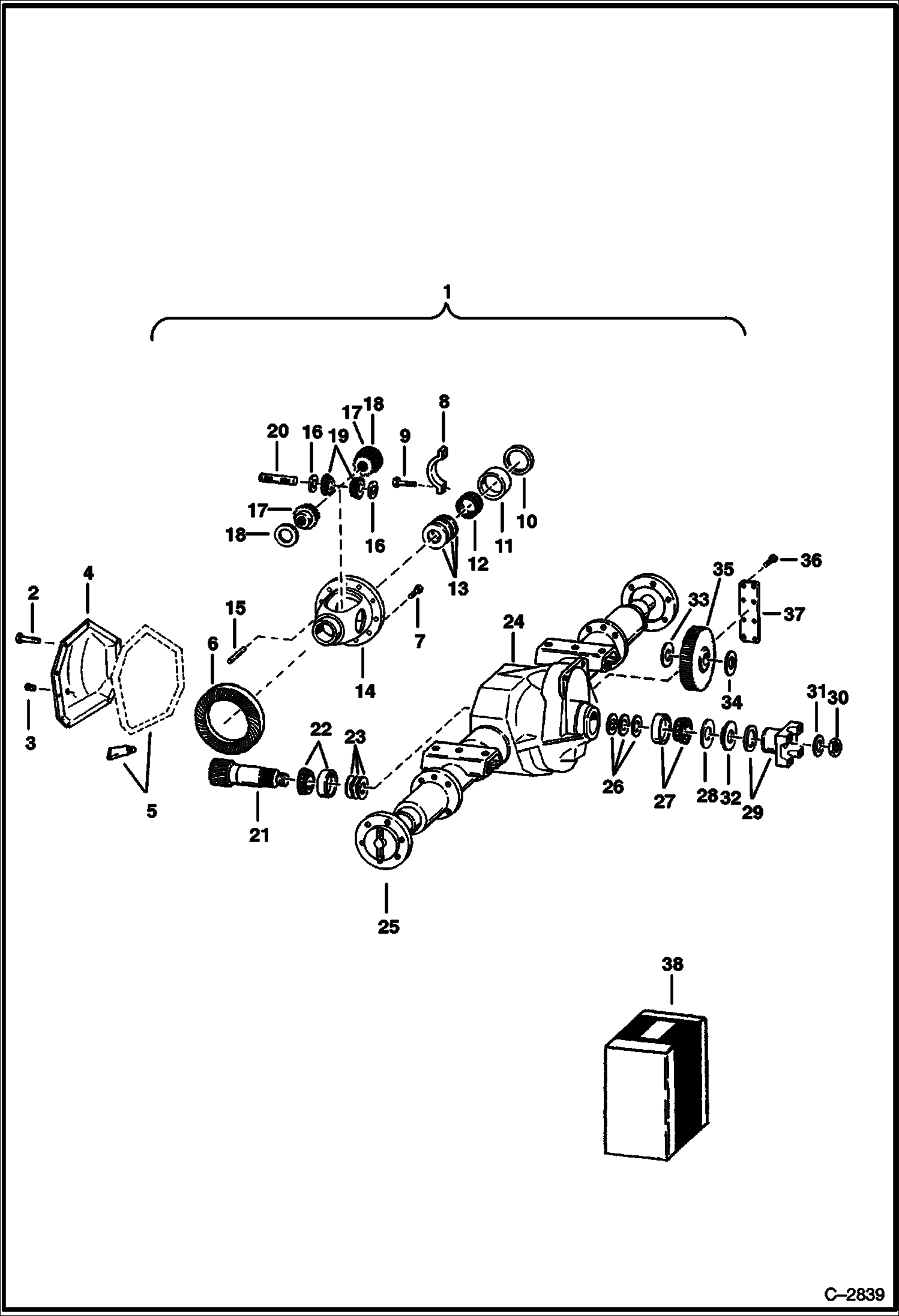

Запчасти Bobcat Articulated Loaders REAR DIFFERENTIAL (Standard) DRIVE TRAIN

1

DIFFERENTIAL NLA - Order (2) 6584528, (1) 6584774, (4) 61D-8 & Hand Weld Together - Was 6584529 - A

2

6598449

BOLT

3

PLUG NLA - Was 6598452 - A

4

COVER NSS

5

SEALANT NLA - Purchase Locally

6

DRIVE GEAR NSS

7

6598453

BOLT

8

CAP NSS - see Ref. 24

9

6598849

BOLT

10

SPACER NSS

11

742240

CUP

12

675546

CONE

13

SHIM NSS

14

CASE NSS

15

6598852

SHAFT

16

WASHER NSS - thrust

17

GEAR NSS

18

WASHER NSS - thrust

19

GEAR NSS

20

SHAFT NSS

21

PINION NSS

22

6598773

BEARING Std.

23

SHIM NSS

24

6598765

HOUSING W/Ref. 8

25

AXLE See Illustration REAR DIFFERENTIAL & HUB ASSY./ C2690

26

SHIM NSS

27

6598774

BEARING

28

6598454

SLINGER

29

6598766

YOKE

30

6598445

NUT

31

6598455

WASHER

32

6598448

SEAL

33

SPACER NLA - Was 6598457 - A

34

6598456

SPACER

35

6598776

GEAR

36

6598460

BOLT

37

6598459

COVER

38

KIT NLA - drive gear & pinion - Ref. 6, 21 & 30 - Was 6598466 - A

38

6598467

KIT case - W/Ref. 5, 7, 10-12 &14-20

38

6598472

KIT diff. - W/Ref. 5, 7 & 15-20

38

KIT NLA - cover - W/Ref. 2,3,4 & 5 - A

38

6598473

KIT shim - W/Ref. 5, 23, 26, 30 & 31

38

6598469

KIT shim - W/Ref. 5, 10 & 13

38

6598474

KIT shim - W/Ref. 5, 10, 13, 23 & 26
