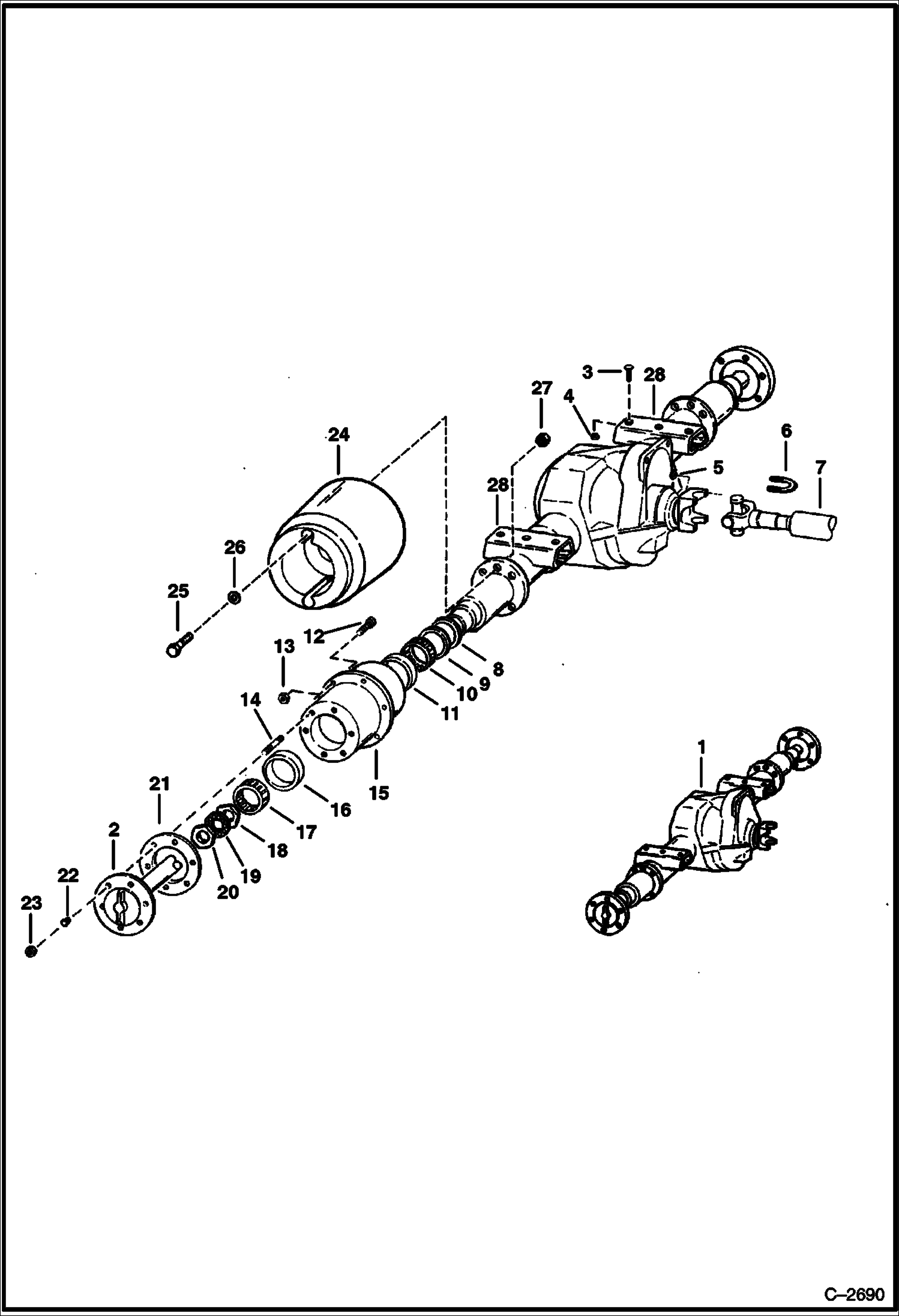

Запчасти Bobcat Articulated Loaders REAR DIFFERENTIAL & HUB ASSY. DRIVE TRAIN

1

DIFFERENTIAL See Illustration REAR DIFFERENTIAL/ D1588 See Illustration REAR DIFFERENTIAL/ C2839 NLA - REAR - REF. 1, 2 & 28 ONLY - Order (2) 6584528, (1) 6584774 & (4) 61D-8 & WELD TOGETHER - WAS 658

2

AXLE NLA - Was 6598450 - A

3

17C1224

BOLT

4

85D12

NUT, 5

5

86D6

NUT

6

954530

U BOLT Was 954530B - A

7

6598357

SHAFT drive

8

6584010

WASHER seal

9

5203689

SEAL

10

710791

CONE

11

710790

BEARING

12

6709170

BOLT, WHEEL Was 6559502 - A

13

6564669

NUT, 10 Was 6519169 - A

14

6584009

STUD

15

6584007

HUB

16

660181

CUP

17

1313674

BEARING

18

6584032

NUT

19

6584034

WASHER

20

6584033

NUT

21

GASKET NLA - Use 6983289 - Was 6584068 - A

22

6584036

WASHER cone

23

86D8

NUT

24

6584982

WEIGHT

25

17C836

BOLT

26

25E22

WASHER

27

85D8

NUT, 5

28

6584528

BRACKET
