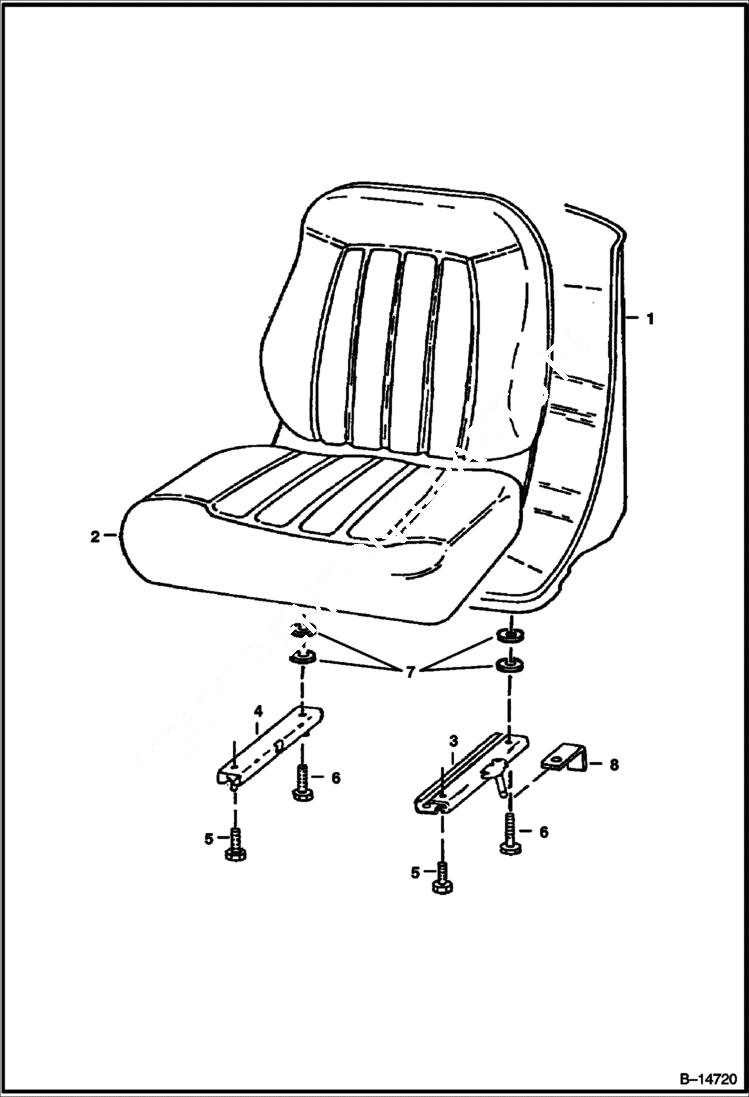

Запчасти Bobcat Articulated Loaders SEAT MAIN FRAME

1

SEAT NLA - W/Ref. 2-5 & 8 - Order 6669135 Seat - Was 6667684 - A

1

6669135

SEAT, OPERATOR VINYL W/Ref. 2-7

2

6670160

CUSHION W/edging, clip & (2) grommets

2

EDGING NSS

2

CLIP NSS

3

TRACK NLA - L.H. - W/ 10 in. (254 mm) Latch - Was 6669088 - A

3

6674013

TRACK LH - W/ 8'' (203,2 mm) latch

4

6669089

TRACK RH - W/O latch

5

25G512

SCREW 6669135 Seat Uses (2)

6

25G520

SCREW

7

6672715

SPACER Was 7000010 - A

8

6668953

BRACKET See Service Letter Dated 16 April 96
