Запчасти Bobcat Articulated Loaders REAR DOOR MAIN FRAME

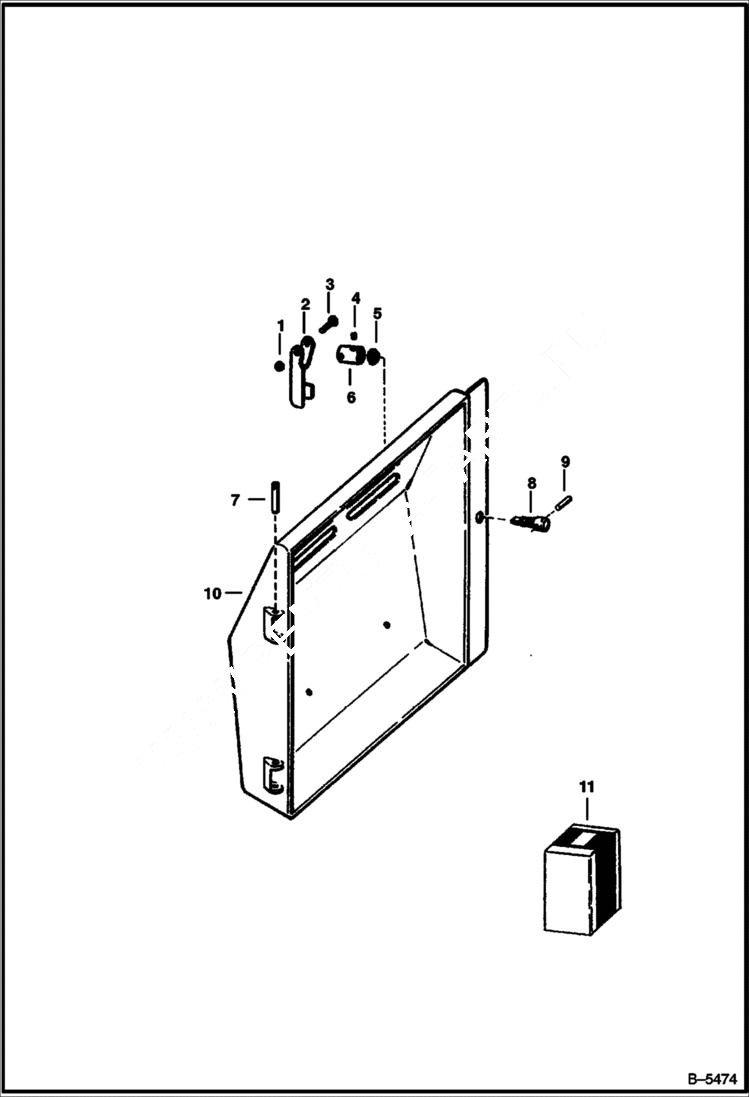

Схема запчастей Bobcat Articulated Loaders - REAR DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

85D5

NUT 5

2

6563681

HANDLE

3

38C624

BOLT 5 Was 6564599 - A

4

33G404

SET SCRW5

5

6563624

NUT 5/8'' Coarse Thread

5

6565627

NUT 5/8'' Fine Thread

6

NUT NLA - 5/8'' Coarse Thread - Order 6565627 , 6565628 & 6565629

6

6565628

NUT 5/8'' Fine Thread

7

6564340

PIN

8

SCREW NLA - 5/8'' Coarse Thread - Order 6565627 , 6565628 & 6565629

8

6565629

SCREW 5/8'' Fine Thread

9

6599361

PIN

10

6704328

REAR DOOR Was 6565073 - A

11

6579448

LATCH KIT Ref. 1 - 6, 8 & 9
