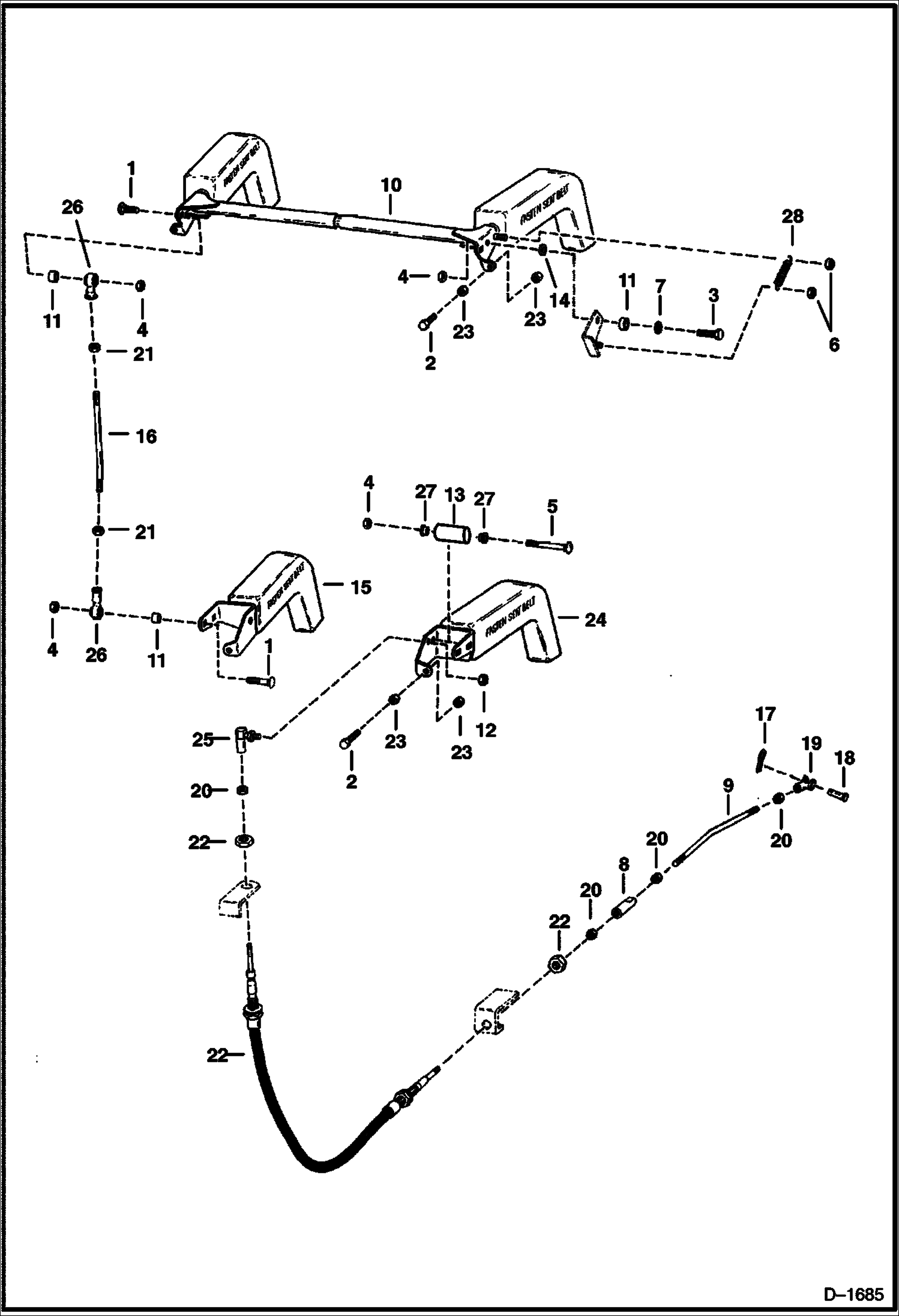

Запчасти Bobcat Articulated Loaders SEAT BAR (S/N 13092 & Above) MAIN FRAME

1

37C624

BOLT Was 7C624 - A

2

17C620

BOLT

3

17C624

BOLT 5

4

85D6

NUT, 5

5

7C672

BOLT

6

85D8

NUT, 5

7

25E18

WASHER

8

6584439

COUPLER

9

6584438

ROD

10

6584446

SEAT BAR Upper

11

6584582

BUSHING

12

86D4

NUT

13

6585477

BUSHING

14

6584435

SPACER

15

6584448

SEAT BAR L.H.

16

6584436

ROD

17

1F208

PIN

18

4F4051

PIN

19

2J4200

CLEVIS

20

8D4

NUT

21

8D6

NUT 5

22

6584437

CABLE

23

7D6

NUT

24

6584447

SEAT BAR R.H.

25

6554858

BALL JOINT

26

6512954

ROD END R.H. threads

27

6631646

BUSHING

28

6584584

SPRING
