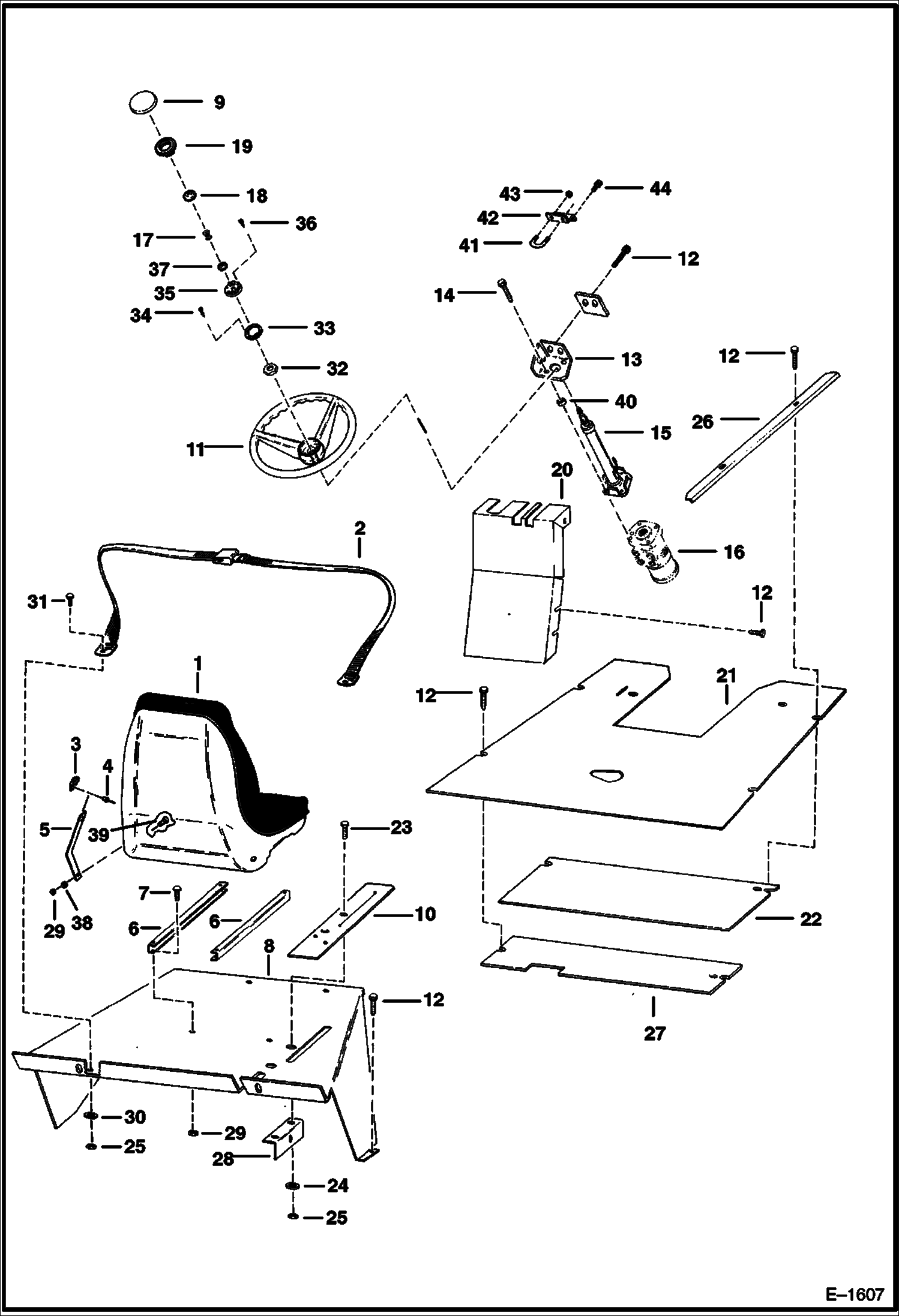

Запчасти Bobcat Articulated Loaders SEAT & STEERING CONTROL (S/N 13061 & Above) MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

3

GUIDE NLA - Order 6703703 - Was 6565355

4

1662965

RIVET

5

GUIDE ASSY. NLA - R.H. - Order 6584583

5

GUIDE ASSY. NLA - L.H. - Order 6584583

5

6584583

GUIDE ASSY. W/Ref. 3 & 4 - Bolt to Seat

6

6584997

CHANNEL

7

17C612

BOLT 5

8

6585900

MOUNT

9

1692980

COVER Horn - Was 6641346 - B

10

6584897

FOAM

11

STR WHEEL NLA - steering - Was 1790800 - A

12

84G3716

SCREW 5

13

6583967

MOUNT

14

17C620

BOLT

15

6584876

COLUMN steering

16

6561100

VALVE See Illustration STEERING CONTROL VALVE/ C2692 STEERING CONTROL

17

728968

SPRING

18

CAP NLA - Was 728966B - A

19

664882

CAP horn

20

6583963

COVER

21

6584877

FLOOR MAT

22

6584351

COVER front

23

17C820

BOLT

24

27E8

WASHER 10

25

85D8

NUT, 5

26

6584126

BRACKET

27

6583949

COVER rear

28

6584011

MOUNT throttle

29

85D6

NUT, 5

30

25E21

WASHER 5

31

17C816

BOLT

32

664880

NUT

33

1692979

INSULATIN

34

18G1010

SCREW

35

664883

PLATE

36

18G1008

SCREW Was 18G-1006 - D

37

CAP NLA - Contact - Was 728967 - A

38

25E17

WASHER 5

39

17C610

BOLT

40

6620724

SPACER

41

6612940

U-BOLT

42

6529465

BRACKET

43

6624416

NUT

44

84G3712

BOLT 5
