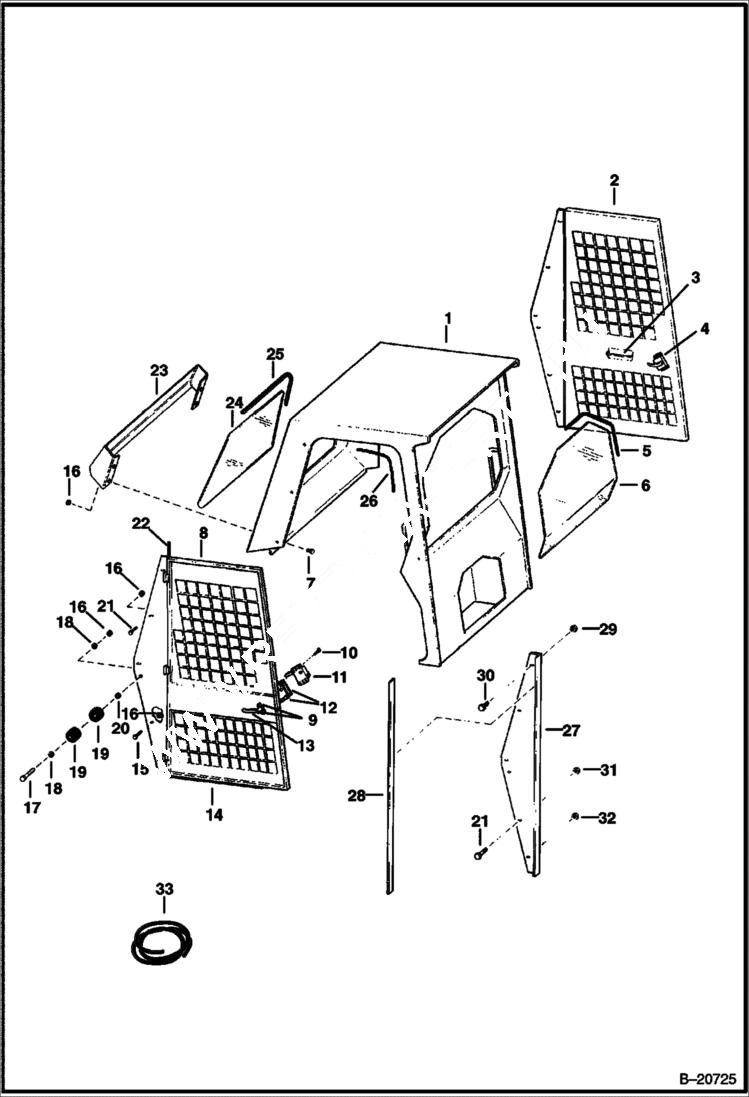

Запчасти Bobcat Articulated Loaders OPERATOR CAB MAIN FRAME

1

6561437

CAB operator

2

6584325

DOOR ASSY. L.H.

3

6583990

STRIP rubber

4

6611678

LATCH door - L.H.

5

SEAL NLA - Window - order 115'' (2921mm) of Ref. 33

6

6561214

WINDOW front

7

17C612

BOLT 5

8

6584322

DOOR ASSY. R.H.

9

32G1012

SCREW

10

18G1012

SCREW

11

6611679

LATCH door - R.H.

12

6583992

SPACER latch

13

HANDLE NLA - Door - Was 6511993 - A

14

SEAL NLA - Order 10 ft. of 6584051

15

31C610

BOLT

16

83D6

NUT 5

17

1C636

BOLT cap

18

25E17

WASHER 5

19

6584225

BUMPER rubber

20

61D6

NUT 5

21

84G3712

BOLT 5

22

SEAL NLA - Order 5 ft. of 6584050

23

6584359

DEFLECTOR

24

6561234

WINDOW rear

25

6561563

SEAL window

26

6630422

MOLDING bulk - Sold Per Foot

27

6529534

PLATE R.H.

27

6529535

PLATE L.H.

28

6630422

MOLDING 55'' (1397 mm) - Was 6529536 - A

29

6519524

NUT lock

30

35C610

BOLT 5

31

85D6

NUT, 5

32

84G3710

SCREW

33

6514301

SEAL window - bulk - Sold Per Foot - Was 6561562 - A
