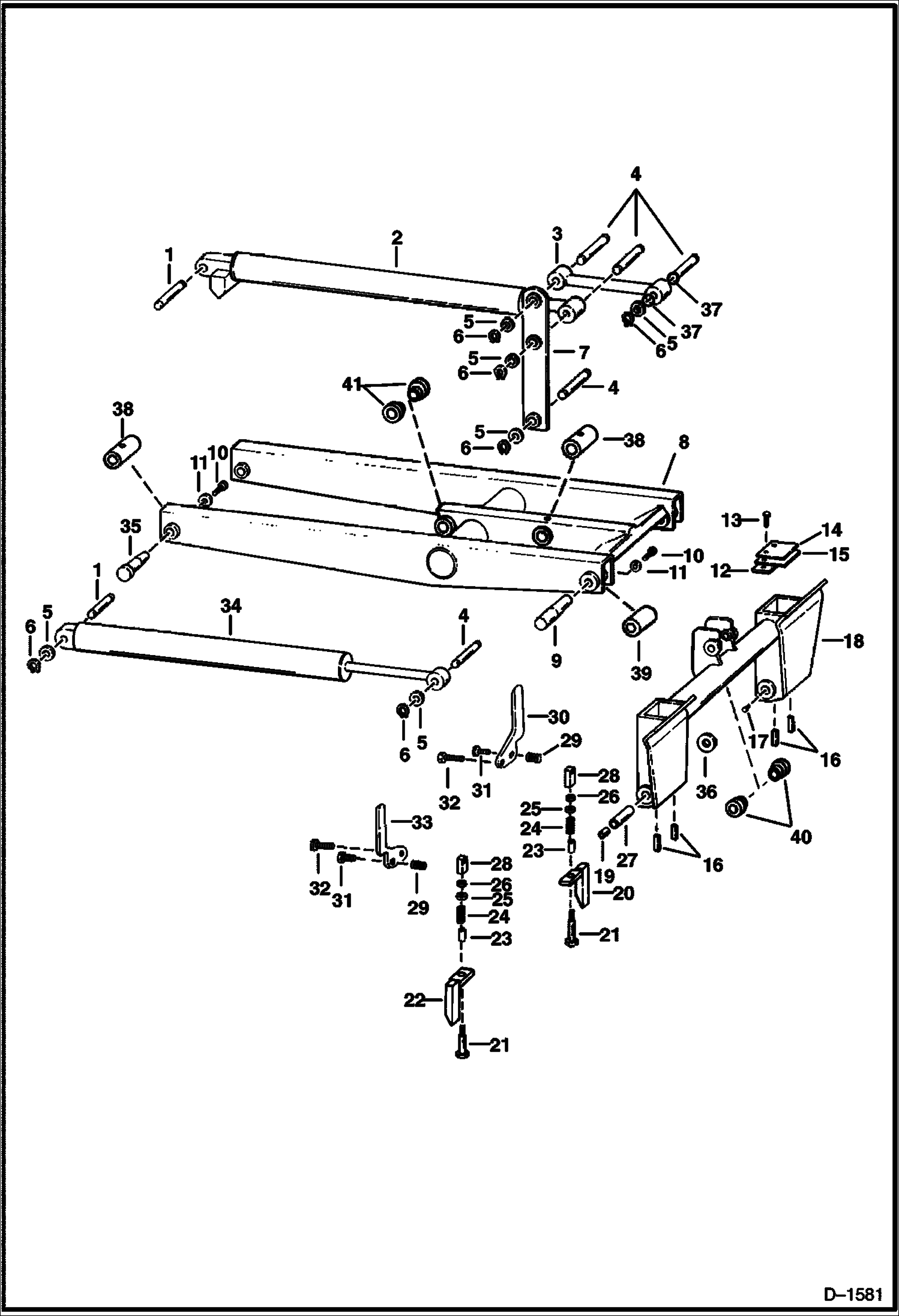

Запчасти Bobcat Articulated Loaders LIFT ARM & BOB-TACH MAIN FRAME

1

6560350

PIN

2

CYLINDER See Illustration TILT CYLINDER/ C2698 TILT

3

LINK NLA - Also Order (2) 6630099 Seals - Was 6585304 - A

4

6561326

PIN

5

6584872

WASHER

6

6538285

LOCK RING Was 1305943B - A

7

6584001

LINK

8

6583973

LIFT ARM

9

6559018

PIN, PIVOT BOB-TACH

10

31C1228

BOLT

11

6576033

WASHER Was 6558465 - A

12

6583933

COVER

13

84G3716

SCREW 5

14

6583931

COVER

15

6583932

COVER

16

6562026

INSERT

17

743332

FITTING, GREASE 5

18

6561247

FRAME See Illustration DECALS/ B20734 BOB-TACH - Also Order 6561383 DECAL

19

6730997

BUSHING, WELD-ON Was 711273 - A

20

6565190

WEDGE

21

17C884

BOLT

22

6565189

WEDGE

23

6562019

GUIDE

24

6578253

SPRING, COMPRESSION Was 6562018 - A

25

25E21

WASHER 5

26

7D8

NUT 5

27

6563436

BUSHING Weld On

28

6565186

BLOCK, BOB-TACH WEDGE Use Only W/17C-884 Bolt

29

6503387

SPRING

30

6563106

LEVER Was 6563104 - A

31

35C610

BOLT 5

32

661846

BOLT

33

6563107

LEVER Was 6563105 - A

34

6584227

CYLINDER See Illustration LIFT CYLINDER/ C2697 LIFT

35

6561343

PIN

36

6584873

WASHER Between Bob-Tach & Boom

37

6654117

SEAL, OIL 51 mm (2'') OD - Was 6630099 - A

37

225855

SEAL, OIL 10 38 mm (1.5'') OD

38

6561345

BUSHING Weld On

39

6559838

BUSHING Weld On

40

6561213

BUSHING Weld On

41

6583972

BUSHING Weld On
