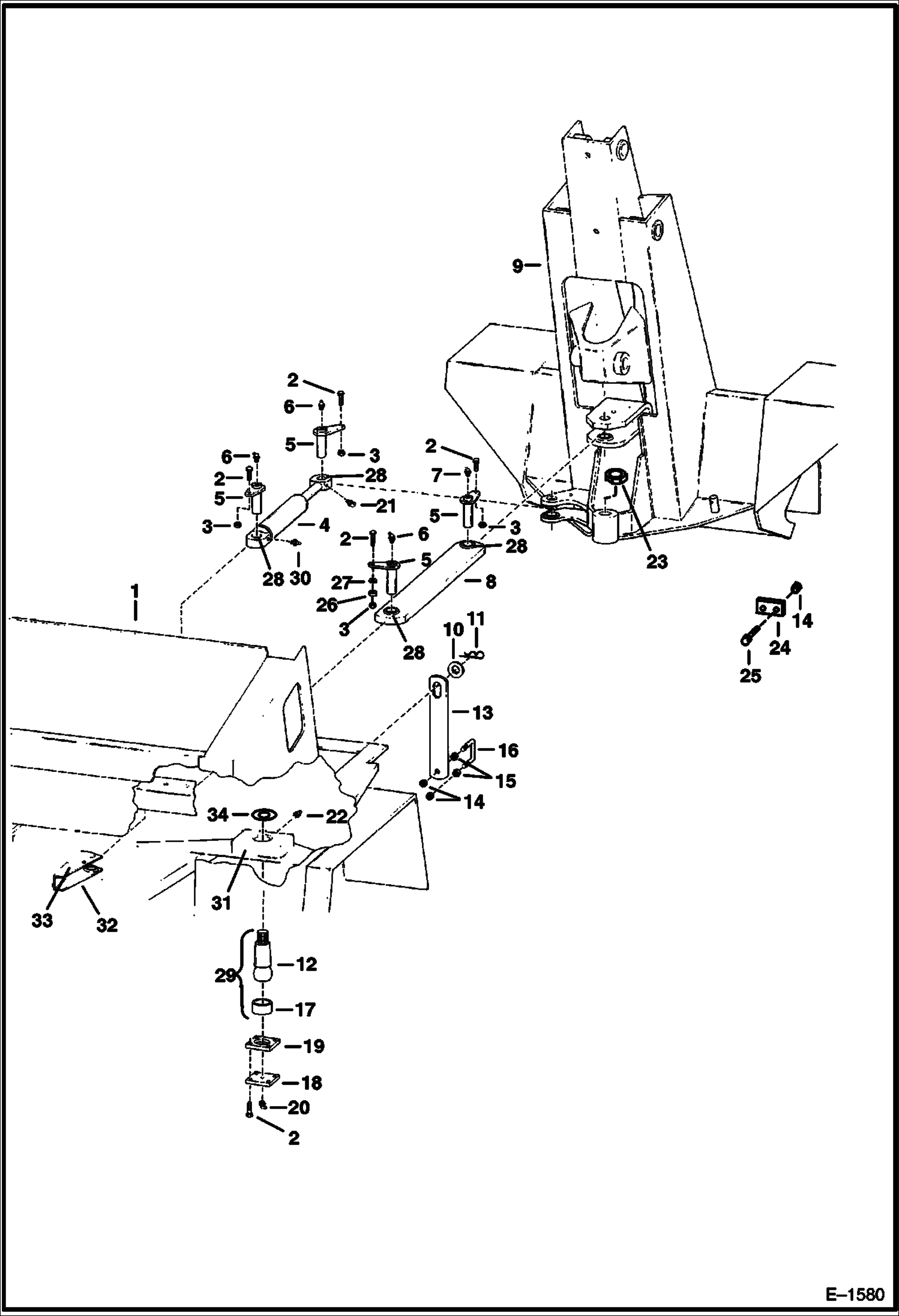

Запчасти Bobcat Articulated Loaders FRAME & ARTICULATION UNIT (S/N 13061 & Above) MAIN FRAME

1

6584852

FRAME rear

2

17C624

BOLT 5

3

85D6

NUT, 5

4

CYLINDER See Illustration STEERING CYLINDER/ C2844 See Illustration STEERING CYLINDER/ C2699

5

6538261

PIN ASSY. Was 6584560 - A

6

12H15

FITTING, GREASE 5 Was 12H000025B - B

7

10H25

FITTING, GREASE 5 Was 10H000035B - B

8

6584847

LINK Includes qty. 2 of Ref. 28

9

FRAME NLA - Front - Was 6584850 - A

10

25E31

WASHER

11

1318566

PIN

12

SHAFT NSS - order Ref. 29

13

6584780

BAR

14

85D8

NUT, 5

15

7D8

NUT 5

16

6584779

U-BOLT

17

RACE NSS - W/6599970 Seal - order Ref. 29

17

SEAL NSS - order Ref. 29 - Was 6599970 - A

18

6585292

CAP

19

6585293

MOUNT

20

12H15

FITTING, GREASE 5

21

16F2

PLUG hex socket

22

10H25

FITTING, GREASE 5

23

85D20

NUT

24

6584781

PAD boom stop

25

17C832

BOLT

26

616783

WASHER Was 6591440 - A

27

25E18

WASHER

28

669928

BEARING self-aligning

29

SHAFT & RACE NLA - Assy. - Ref. 12, 17 & 23 - Order 6588696 - Was 6530787 - A

29

6588696

SHAFT & RACE Assy. - W/Ref. 12, 17 & 23 - Also Order 6588949

30

33G404

SET SCRW5 socket

31

6561516

MOUNT pivot

32

6584843

MOUNT

33

6584845

MOUNT

34

6588949

SEAL Ball joint
