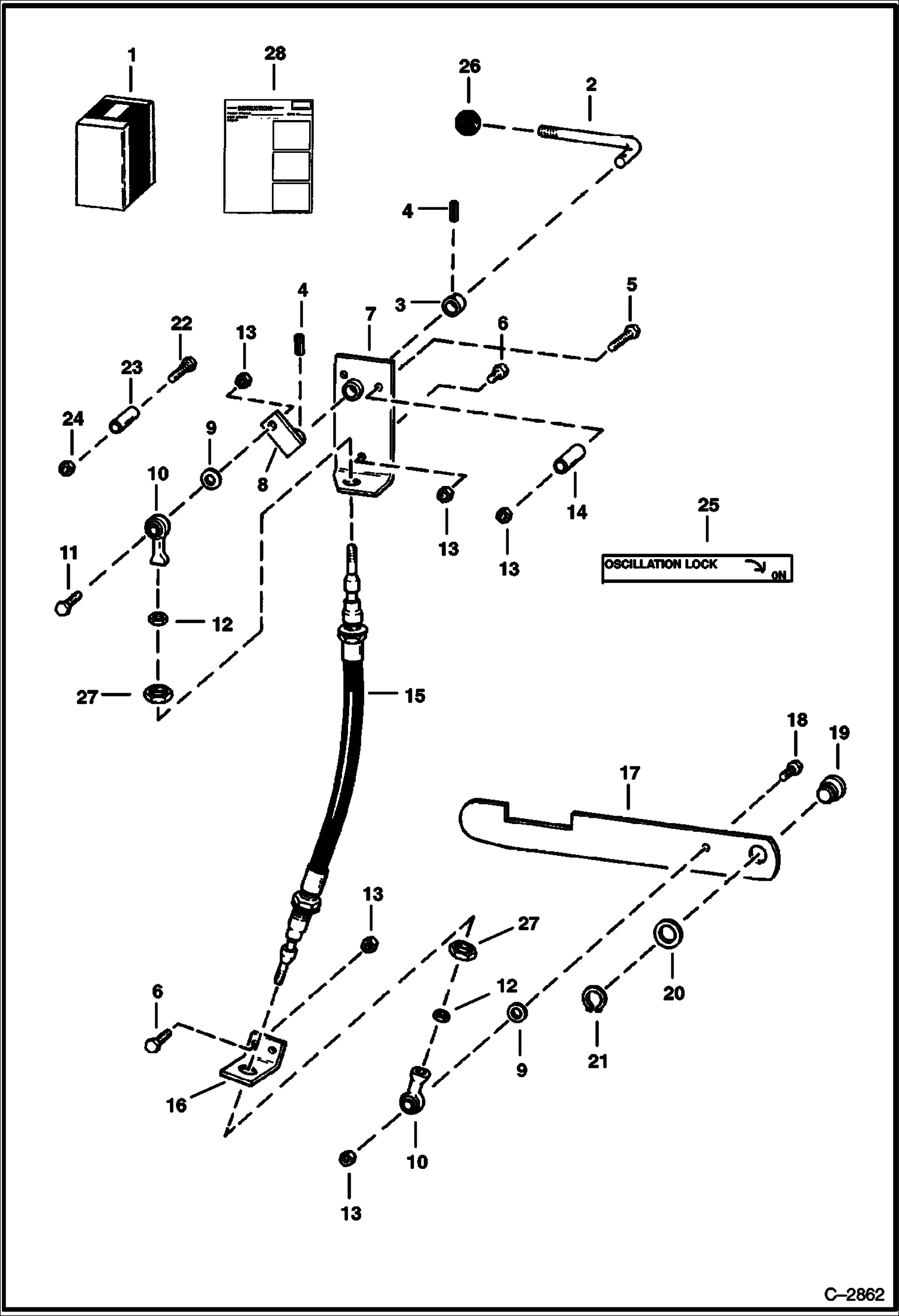

Запчасти Bobcat Articulated Loaders OSCILLATION LOCK KIT ACCESSORIES & OPTIONS

1

6584419

KIT ref. 2-28

2

6584454

LEVER

3

6584464

COLLAR

4

14J1514

PIN

5

17C536

BOLT

6

17C512

BOLT 5

7

6584463

MOUNT

8

6584461

PIVOT

9

25E15

WASHER

10

1300247

ROD END

11

17C516

BOLT

12

8D5

NUT

13

85D5

NUT 5

14

6584460

STOP

15

CABLE W/Ref. 27 NLA - W/Ref. 27 - Was 6584457 - A

16

6584456

MOUNT

17

6584459

BAR lockout

18

17C524

BOLT

19

6584458

WASHER

20

6505046

WASHER

21

1320431

RING, SNAP Was 6538286 - A

22

17C644

BOLT

23

6504392

SPACER

24

85D6

NUT, 5

25

6584888

DECAL

26

6515888

KNOB

27

8D12

NUT

28

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566714 - A
