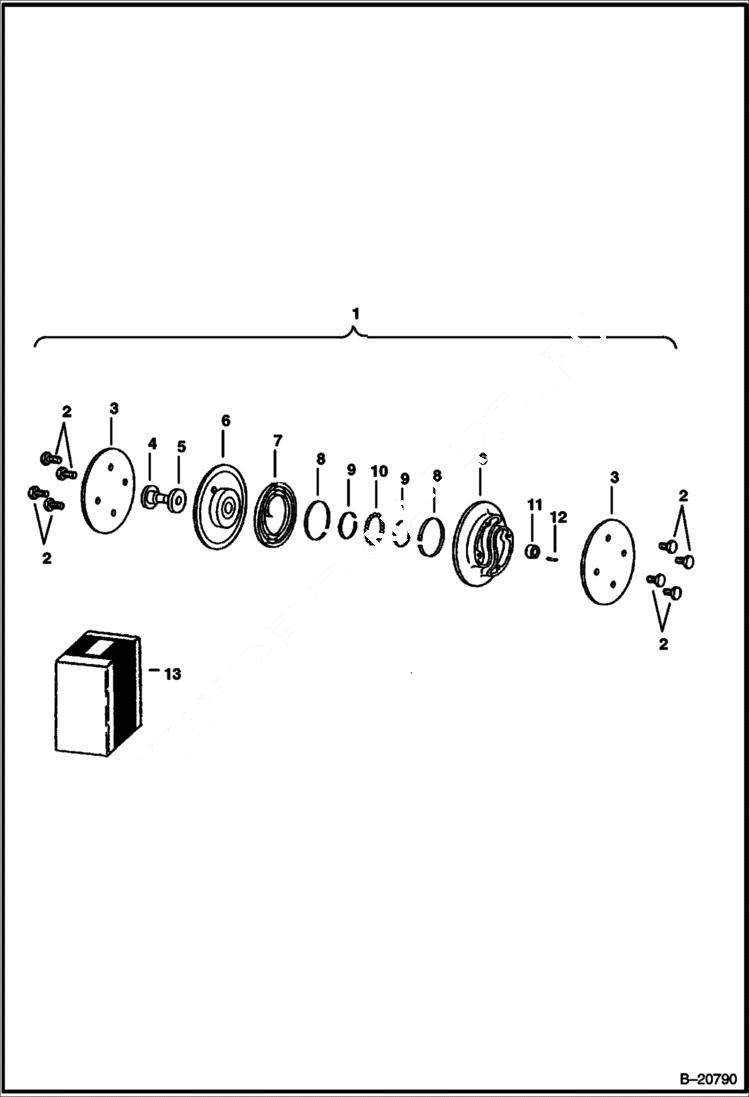

Запчасти Bobcat Articulated Loaders HOSE REEL ACCESSORIES & OPTIONS

1

REEL NLA - Ref. 2-12 - Was 6630692 - A

2

17C508

BOLT

3

6630693

COVER

4

PIN NSS

5

6630701

BUSHING

6

6630691

HOUSING

7

SPRING NSS

8

6630694

RACE Outer

9

6630695

RACE Inner

10

6630696

BALL

11

NUT NSS

12

PIN NSS - Roll

13

6630702

KIT spring repair - Ref. 4, 7, 11 & 12
