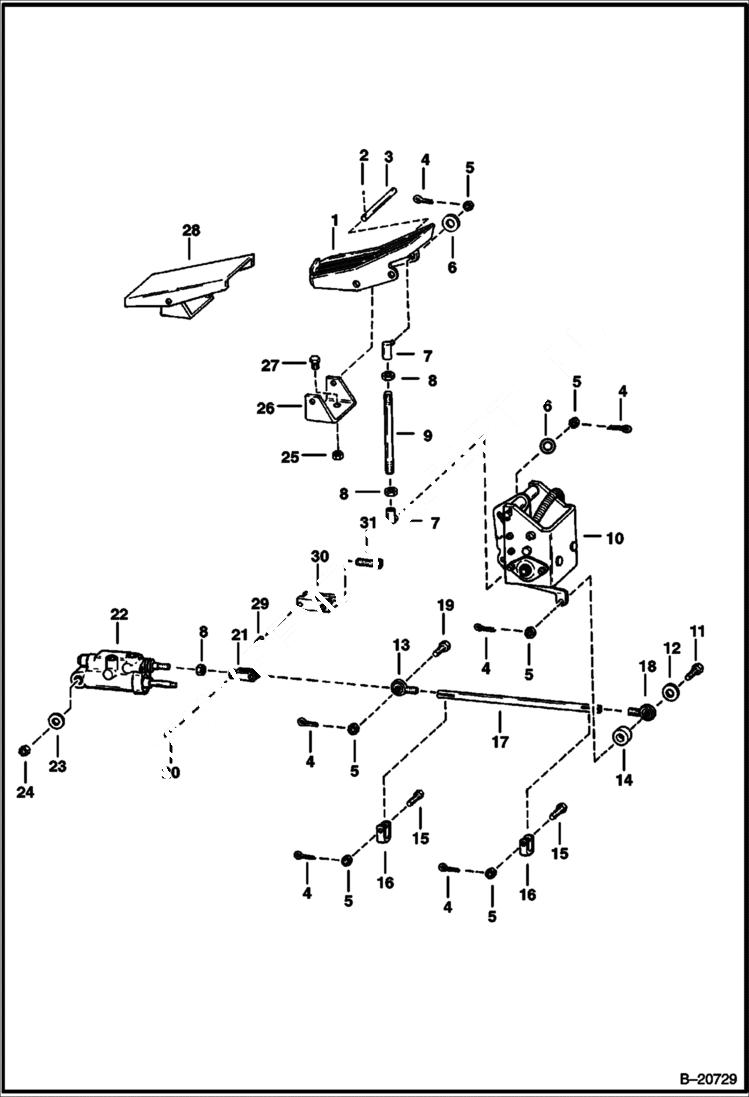

Запчасти Bobcat Articulated Loaders HYDROSTATIC CONTROLS HYDROSTATIC SYSTEM

1

6584790

PEDAL Cast

2

1F416

PIN

3

6585458

PIN Was 6584792 - A

4

1F316

PIN

5

4D6

NUT

6

25E17

WASHER 5

7

6584795

BALL JOINT

8

8D6

NUT 5

9

6584739

ROD

10

MECHANISM See Illustration CENTERING MECHANISM/ D1597 See Illustration CENTERING MECHANISM/ C2942 See Illustration CENTERING MECHANISM/ C2874

11

6584729

BOLT

12

27E6

WASHER 5

13

710852

BEARING R.H. thread

14

616783

WASHER

15

6584744

BOLT

16

6584742

CLAMP

17

6584743

ROD

17

6584874

ROD

18

6599745

ROD END L.H. thread

19

6584745

BOLT

19

6585423

SCREW

20

COTTER PIN

21

6585434

CLEVIS

22

SERVO See Illustration SERVO/ B20720 See Illustration SERVO/ D1587

23

6584265

WASHER

24

85D10

NUT, 5

25

85D6

NUT, 5

26

6584791

MOUNT

27

17C612

BOLT 5

28

PEDAL NLA - order Ref. 1

29

33G404

SET SCRW5

30

6584741

CLEVIS

31

94G524

BOLT 5
