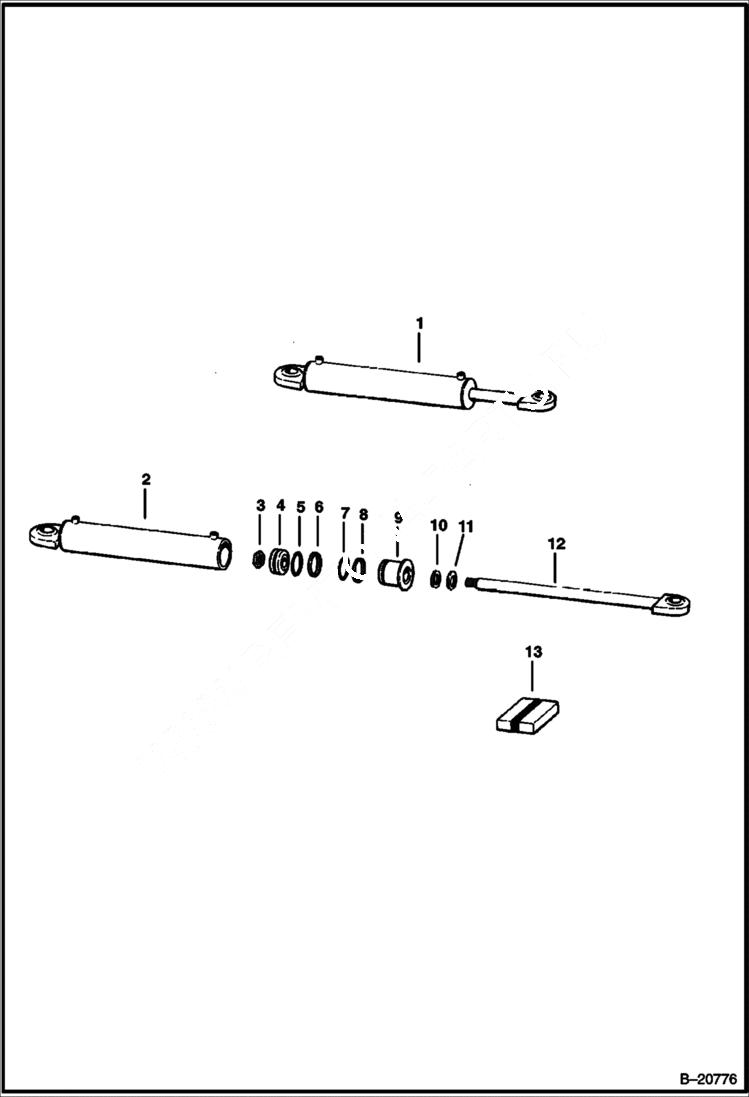

Запчасти Bobcat Articulated Loaders TILT CYLINDER HYDRAULIC SYSTEM

1

6585910

CYLINDER Ref. 2-12

2

6592048

CASE

3

92D14

NUT Was 86D000014B - A

4

6593092

PISTON

5

25K30202

O RING 10

6

1522534

SEAL wear

7

25K40208

O RING 10

8

73K228

BACK-UP RING

9

HEAD NLA - Was 6537762 - A

10

6665184

SEAL Was 6655426 - A

11

6665208

SEAL Was 1657085B - A

12

6584954

ROD

13

6591670

SEAL KIT seal - W/Ref. 5-8, 10 & 11
