Запчасти Bobcat Articulated Loaders CONTROL LINKAGE & CIRCUITRY HYDRAULIC SYSTEM

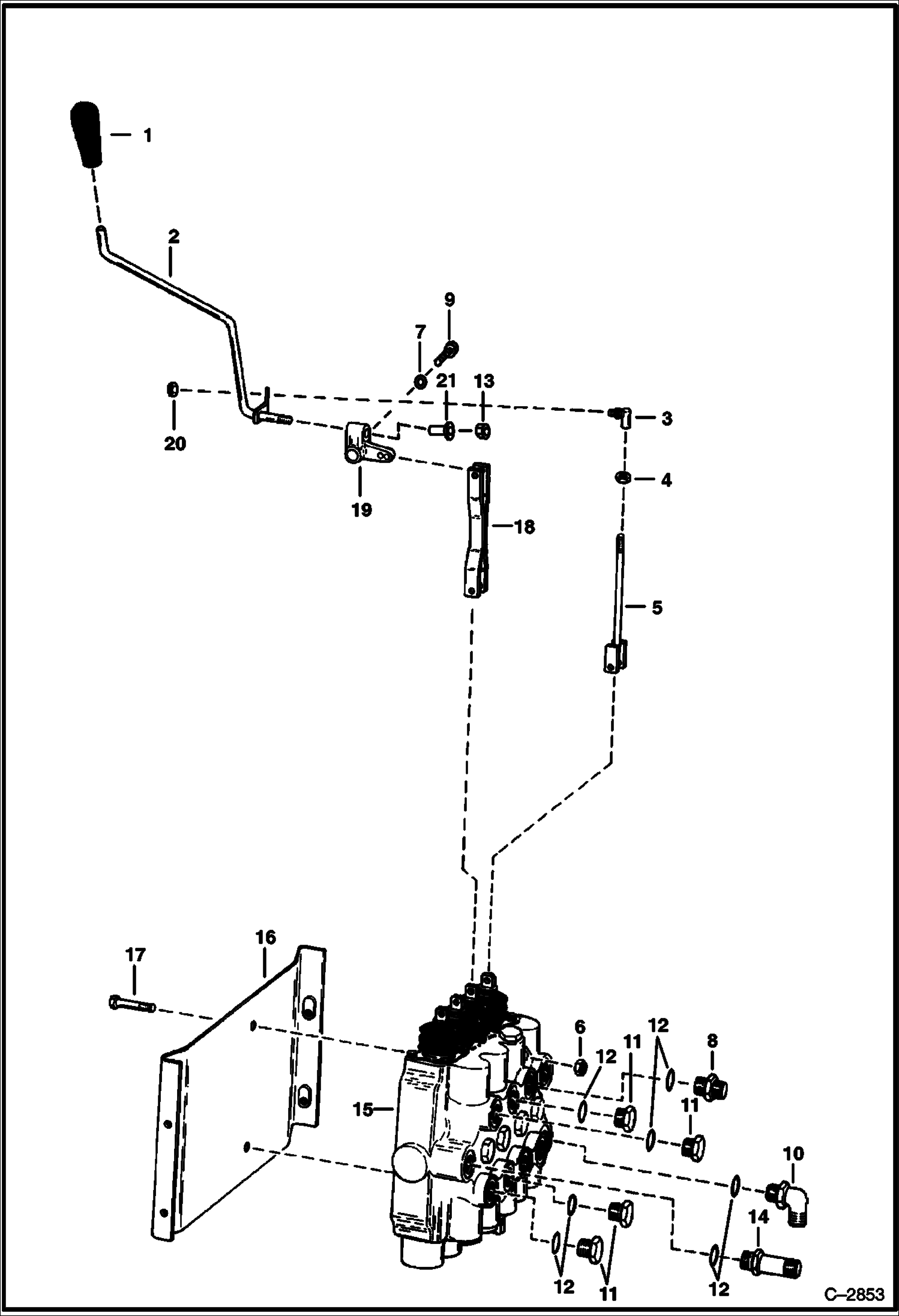

Схема запчастей Bobcat Articulated Loaders - CONTROL LINKAGE & CIRCUITRY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

GRIP NLA - Was 6514867 - A

2

6561788

LEVER

3

6512356

BALL JOINT ball

4

8D5

NUT

5

6584990

LINKAGE

6

85D5

NUT 5

7

25E16

WSHR

8

731795

CONNECTR W/Ref. 12

9

17C510

BOLT

10

17K7

ELBOW W/Ref. 12

11

24K7

PLUG W/Ref. 12

12

79K10

O RING 10

13

61D8

NUT 5

14

16K7

FITTING W/Ref. 12

15

VALVE See Illustration CONTROL VALVE/ E1609 See Illustration CONTROL VALVE/ E1573

16

6584993

MOUNT valve

17

17C560

BOLT

18

6584989

LINKAGE

19

6591949

BLOCK block

20

86D5

NUT

21

6599359

WASHER

Выбрано товаров: 21
