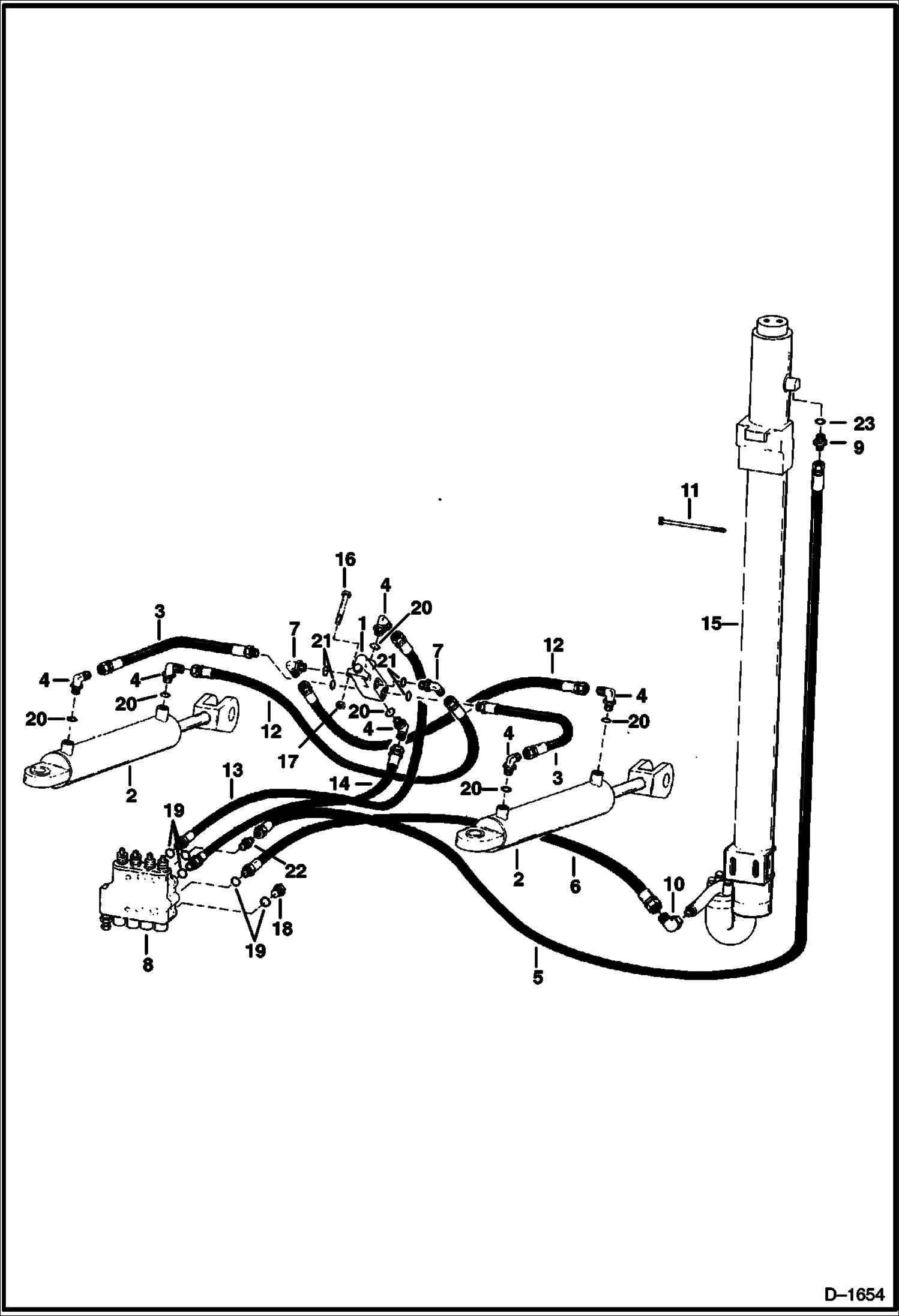

Запчасти Bobcat Articulated Loaders MAST HYDRAULICS HYDRAULIC SYSTEM

1

VALVE, See Illustration COUNTERBALANCE VALVE/ B7289 See Illustration COUNTERBALANCE VALVE/ B6952

2

6585910

CYLINDER See Illustration TILT CYLINDER/ B20776

3

6584946

HOSE tilt

4

17K6

ELBOW W/Ref. 22

5

6584947

HOSE lift - For 10' mast

5

6585925

HOSE lift - For 14' mast

6

6584953

HOSE lift

7

17K5

ELBOW W/Ref. 23

8

VALVE See Illustration CONTROL VALVE/ E1609 See Illustration CONTROL VALVE/ E1573

9

6002341

ADAPTER W/Ref. 23

10

6599639

FITTING

11

6630587

STA-STRAP cable

12

1326024

HOSE

13

6584917

HOSE

14

6584918

HOSE

15

CYLINDER See Illustration MAST CYLINDER/ C2832 MAST

16

17C648

BOLT 5

16

17C628

BOLT

17

85D6

NUT, 5

18

24K7

PLUG W/Ref. 21

19

79K10

O RING 10

20

79K8

O RING 10

21

79K6

O RING 10

22

731795

CONNECTR W/Ref. 19

23

79K4

O RING 10
