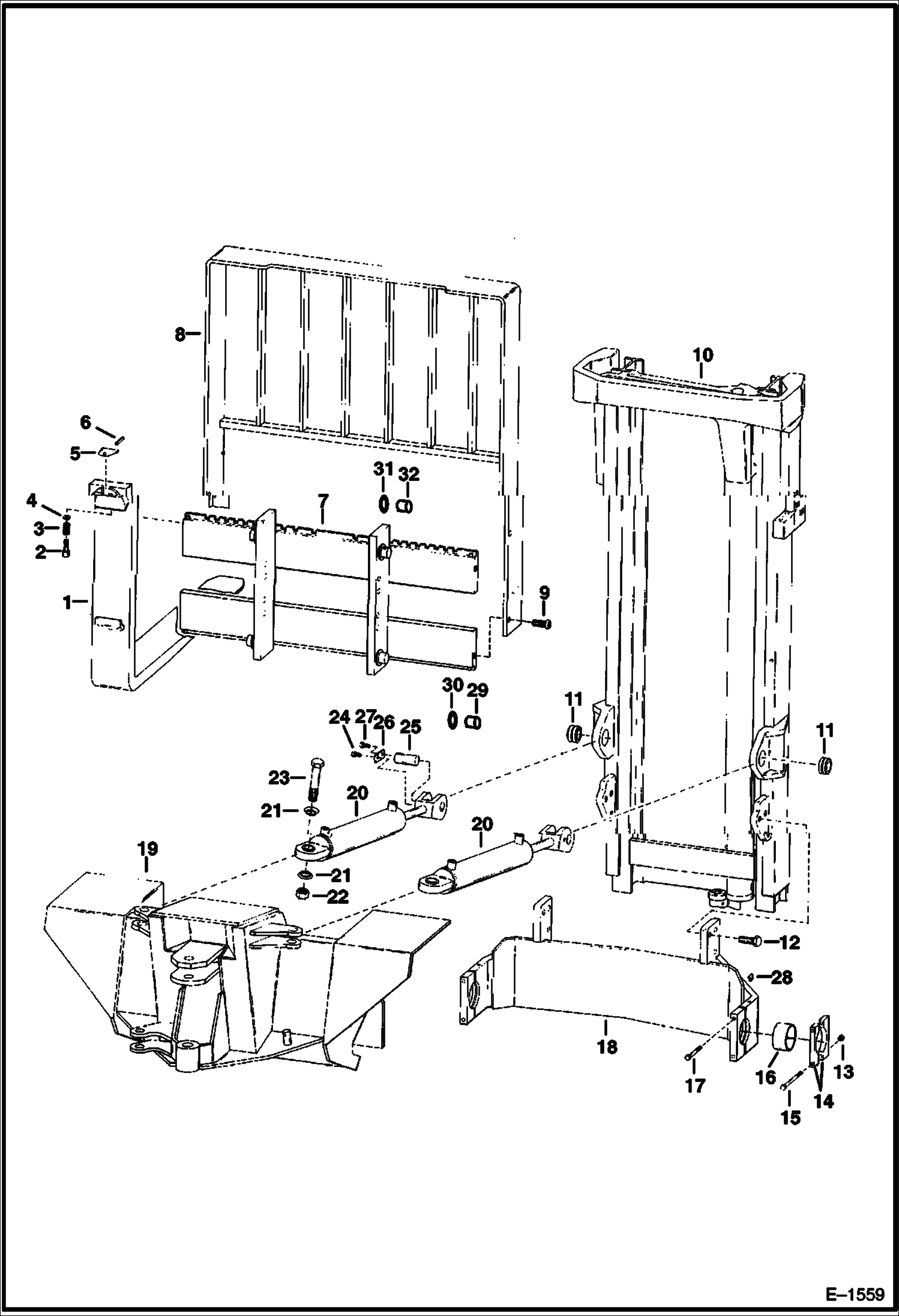

Запчасти Bobcat Articulated Loaders FRONT FRAME & MAST ASSY. MAIN FRAME

1

FORK W/Ref. 2-6 - Was SALES - A

2

PIN NLA - Order 6680122 - Was 756447B - A

3

6517882

SPRING

4

867750

WASHER

5

LEVER NLA - Order 6665216 - Was 756446B - A

6

654618

PIN Roll

7

2371063

CARRIAGE

8

2359653

BACKREST load

9

2760123

BOLT

10

6584943

MAST See Illustration MAST & ATTACHING PARTS/ E1558 10 FT.

10

6584949

MAST See Illustration MAST & ATTACHING PARTS/ E1558 14 FT.

11

2366176

BRG,SPHER

12

7CM2050

BOLT

13

85D4

NUT 5

14

6584919

CLAMP

15

BOLT NLA - Was 17C488 - A

16

BUSHING NLA - bearing - Was 6584984 - A

17

31C864

BOLT

18

6584934

UPRIGHT axle mnt. assy.

19

6584925

FRAME front

20

6585910

CYLINDER See Illustration TILT CYLINDER/ B20776 TILT

21

6583929

SPACER

22

85D20

NUT

23

17C2060

BOLT

24

18C612

BOLT

25

2366174

PIN

26

6585914

RETAINER

27

1CM1016

SCREW

28

11H15

GREASE FITTING grease

29

2357723

BRG

30

2359551

SHIM

31

ROLL BRG NLA - Was 2359625 - A

32

2359626

SHAFT
