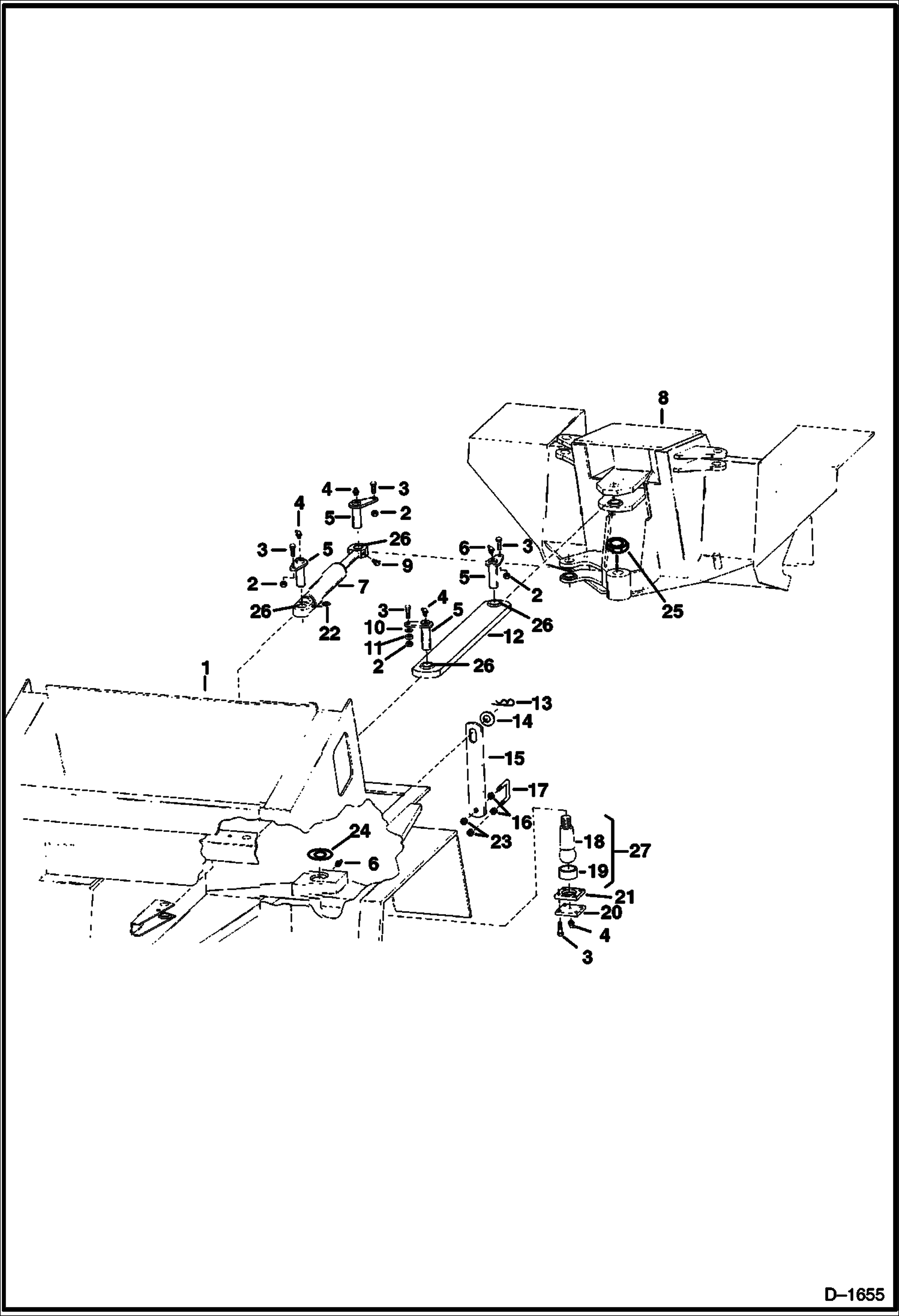

Запчасти Bobcat Articulated Loaders FRAME & ARTICULATION UNIT (S/N 15021 & Above) MAIN FRAME

1

6585948

FRAME Rear

2

85D6

NUT, 5

3

17C624

BOLT 5

4

12H15

FITTING, GREASE 5 Was 12H000025B - B

5

6538261

PIN ASSY. Was 6584560 - A

6

10H25

FITTING, GREASE 5 Was 10H000035B - B

7

CYLINDER See Illustration STEERING CYLINDER/ C2844

8

6584925

FRAME Front

9

16F2

PLUG hex socket

10

25E18

WASHER

11

616783

WASHER Was 6591440 - A

12

6584847

LINK

13

1318566

PIN

14

25E31

WASHER

15

6584780

BAR

16

7D8

NUT 5

17

6584779

U-BOLT

18

SHAFT NSS - Order Ref. 27

19

RACE NSS - W/6599970 SEAL - Order Ref. 27 - WAS 6514045 - A

19

SEAL NSS - Order Ref. 27 - WAS 6599970 - A

20

6585292

CAP

21

6585293

MOUNT Was 616783B - B

22

33G404

SET SCRW5 socket

23

85D8

NUT, 5

24

6588949

SEAL Ball joint

25

85D20

NUT

26

669928

BEARING self-aligning

27

SHAFT & RACE NLA - Assy. - Ref. 18, 19 & 25 - Order 6588696 - Was 6530787 - A

27

6588696

SHAFT & RACE Assy. - Ref. 18, 19 & 25 - Also Order 6588949 Seal
