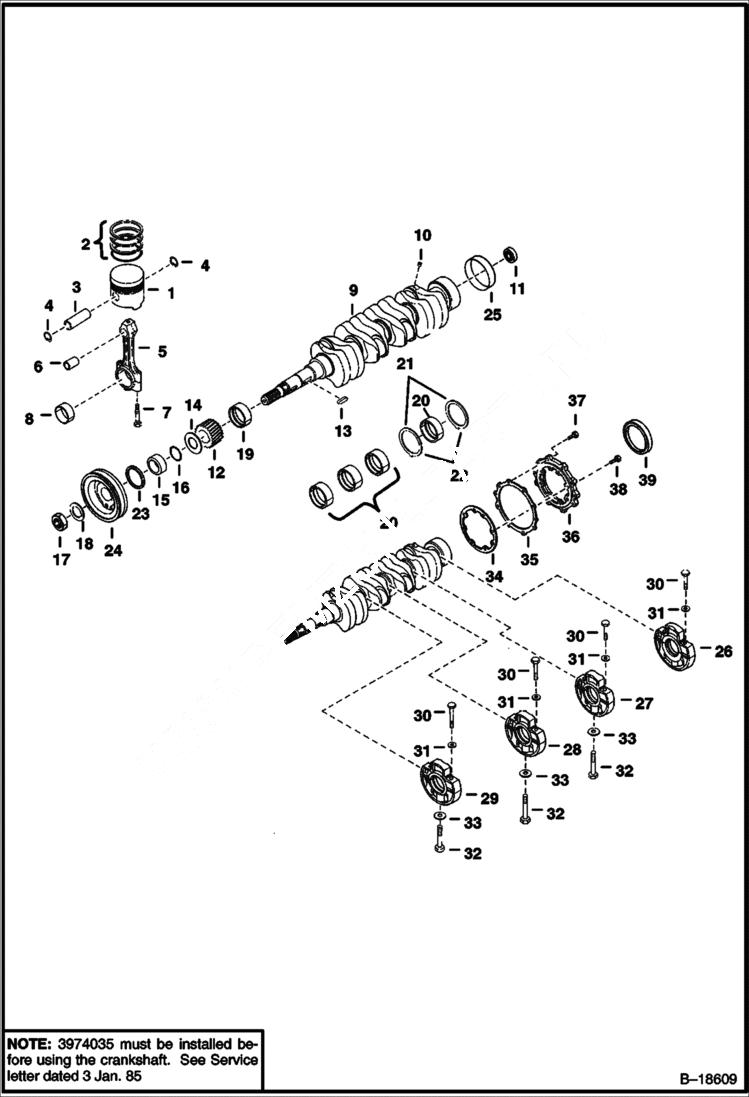

Запчасти Bobcat Articulated Loaders PISTON & CRANKSHAFT POWER UNIT
№
Артикул
Название
Примечание
Количество
1
6598762
PISTON
1
6599914
PISTON, ENG (0,5 mm) - .0197
2
6598110
RINGS piston - Std.
2
6599913
RINGS piston - (0,5 mm) - .0197
3
3974937
PIN PISTN
4
3974561
SNAP RG 5
5
3974938
ROD, CONNECTING connecting - W/Ref. 6, 7 & 8
6
3974939
BUSHING
7
BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs
8
6598699
BEARING Rod - Std. - Was 3974567B - A
8
3975025
ROD BRG rod (0,2mm - .0079)
8
3975026
ROD BRG rod (0,4mm - .0157)
9
7013228
CRANKSHAFT, ASSY See Note - Ref. 10 & 25 - Was 6649299 - A
10
3974035
PLUG pin
11
3974571
BEARING
12
6598142
GEAR
14
6653861
SLINGER, OIL Was 6598141 - A
15
3975337
COLLAR Was 3974576B - A
16
3974577
O RING
17
3974671
NUT
18
3974672
WASHER
19
3975017
MAIN BRG main (0,2 mm - .0079)
19
6655239
BEARING main (0,4 mm - .0157) - Was 3975018B - A
20
6655186
BEARING main (Std.) - Was 3974579B - A
20
6655240
BEARING main (0,2 mm - .0079) - Was 3975019B - A
20
3975020
MAIN BRG main (0,4 mm - .0157)
21
3974945
WASHER, THRUST thrust (Std.)
21
3975021
WASHER thrust (0,2 mm - .0079)
21
3975022
WASHER, THRUST thrust (0,4 mm - .0157)
22
6653865
WASHER, THRUST thrust (Std.) - Was 3974946B - A
22
3975023
WASHER thrust (0,2 mm - .0079)
22
3975024
WASHER thrust (0,4 mm - .0157)
24
6648764
PULLEY Was 6598186 - A
26
6655886
CASE main bearing - Was 3974897B - A
27
6598122
CASE main bearing
28
3974901
BEAR CASE main bearing
29
6653816
CASE main bearing - Was 3974900B - A
30
BOLT NLA - without washer - Order 6653813 - Was 3974898B - A
30
6653813
BOLT with washer - Was 6653585 - A
31
3974899
WASHER
32
6653821
BOLT Was 3974902B - A
33
3974903
WASHER
34
3974471
GASKET
35
6666787
GASKET Was 3974473B - A
36
6653814
COVER Was 3975336B - A
37
1CM825
BOLT Was 4CM825 - A
38
1CM825
BOLT Was 4CM825 - A
Выбрано товаров: 52
