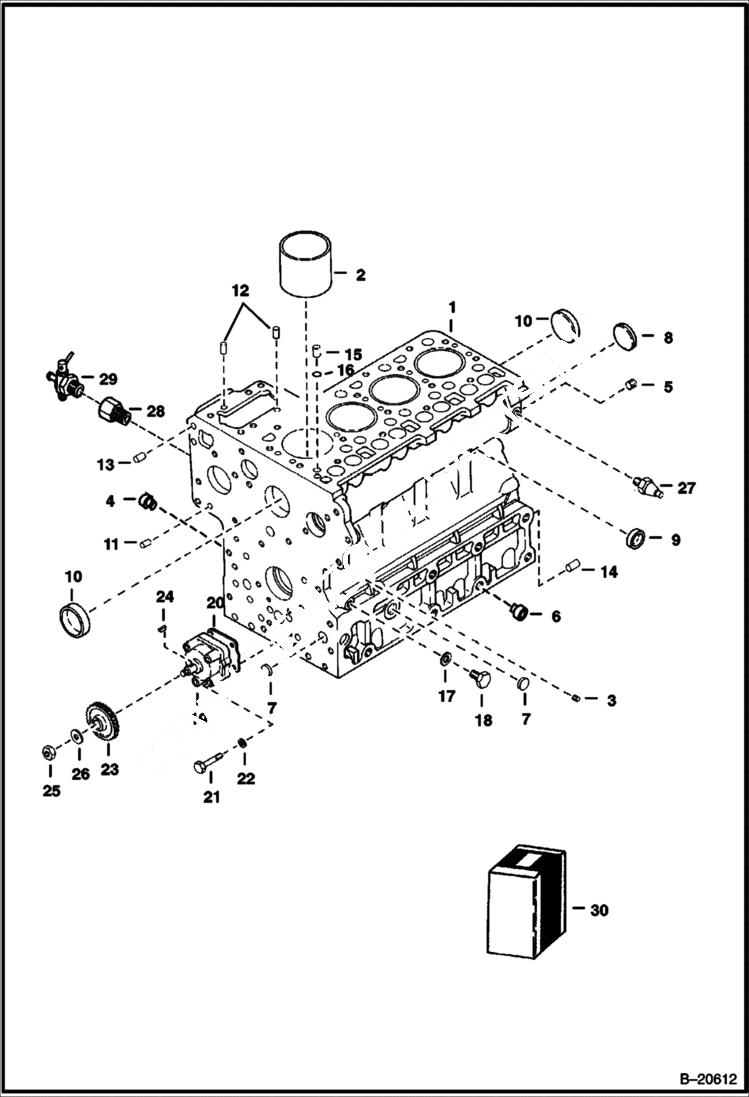

Запчасти Bobcat Articulated Loaders CRANKCASE POWER UNIT

1

6598183

CRANKCASE W/Ref. 2-15

2

6598109

LINER, CYL CRANKCASE cylinder

3

6652574

PLUG Was 6598169 - A

4

3974399

PLUG

5

6652575

PLUG Was 6598170 - A

6

6598187

PLUG

7

4FM18

PLUG expansion

8

4FM45

PLUG expansion

9

3974389

CAP, SEALING sealing

10

3974390

PLUG sealing

11

3974393

PIN straight

12

3974394

PIN straight

13

3974395

PIN straight

14

3974868

PIN straight

15

3974037

PIN pipe

16

3974038

O RING

17

3974095

MET-GASK

18

6655884

PLUG Was 3974840 - A

19

6689441

PUMP, OIL ENG Was 3975426 - A

20

6666782

GASKET Was 3974456 - A

21

4CM650

HEX BOLT

22

6EM60

WASHER, SPRING

23

3975441

GEAR, CAMSHAFT Was 3974869B - A

24

6969805

KEY,FEATHER Was 15JM00410B - A

25

6653888

NUT Was 3DM00012B - A

26

3974870

WASHER

27

6969775

SWITCH, OIL PRESSURE lower gasket - Was 6652576 - A

28

3974871

CONNECTOR

29

6672190

DRAINCOCK Was 6630177 - A

30

6630555

GASKET KIT See Illustration LOWER GASKET KIT/ NA6696 - lower
