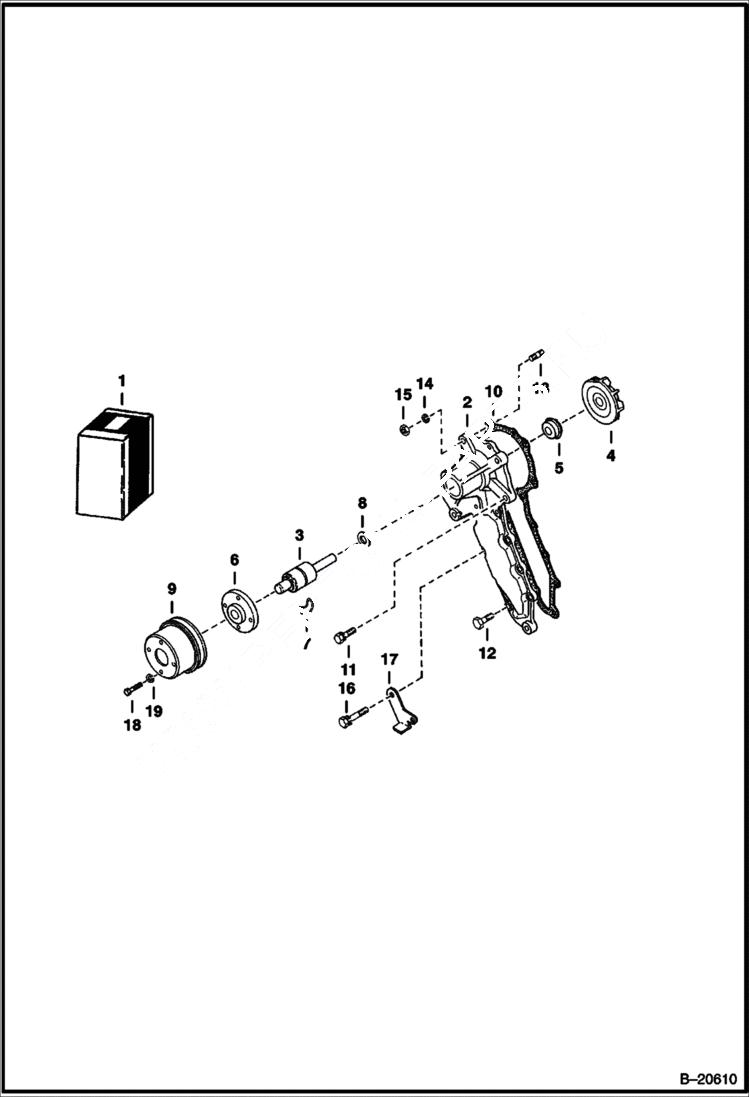

Запчасти Bobcat Articulated Loaders WATER PUMP POWER UNIT

1

6684225

WATER PUMP water - Ref. 2 - 8 - Was 6653941 - A

2

BODY NLA - water pump

3

3974991

BEARING

4

6653944

IMPELLER water pump - Was 3974683 - A

4

6653944

IMPELLER Was 6653577 - A

4

6667460

IMPELLER for one piece seal

5

6653945

SET SEAL Was 3974684B - A

5

6653945

SET SEAL Was 6653576 - A

5

6667465

SEAL one piece seal

6

3974992

FLANGE water pump shaft

7

3974993

PIN snap

8

6598108

SLINGER Was 3974688B - A

9

6674169

PULLEY water pump - Was 6598155 - A

10

6666804

GASKET water pump - Was 3974995B - A

11

4CM828

BOLT

12

4CM618

BOLT

13

3974267

STUD

14

6EM80

WASHER, SPRING

15

1DM8

NUT Was 25DM8 - A

16

1CM620

BOLT Was 4CM620 - A

17

6598185

INDICATOR timing - Was 6653688 - A

18

29CM612

BOLT, FLANGED Was 6652762 - A

19

6598119

WASHER Use without flanged bolt
