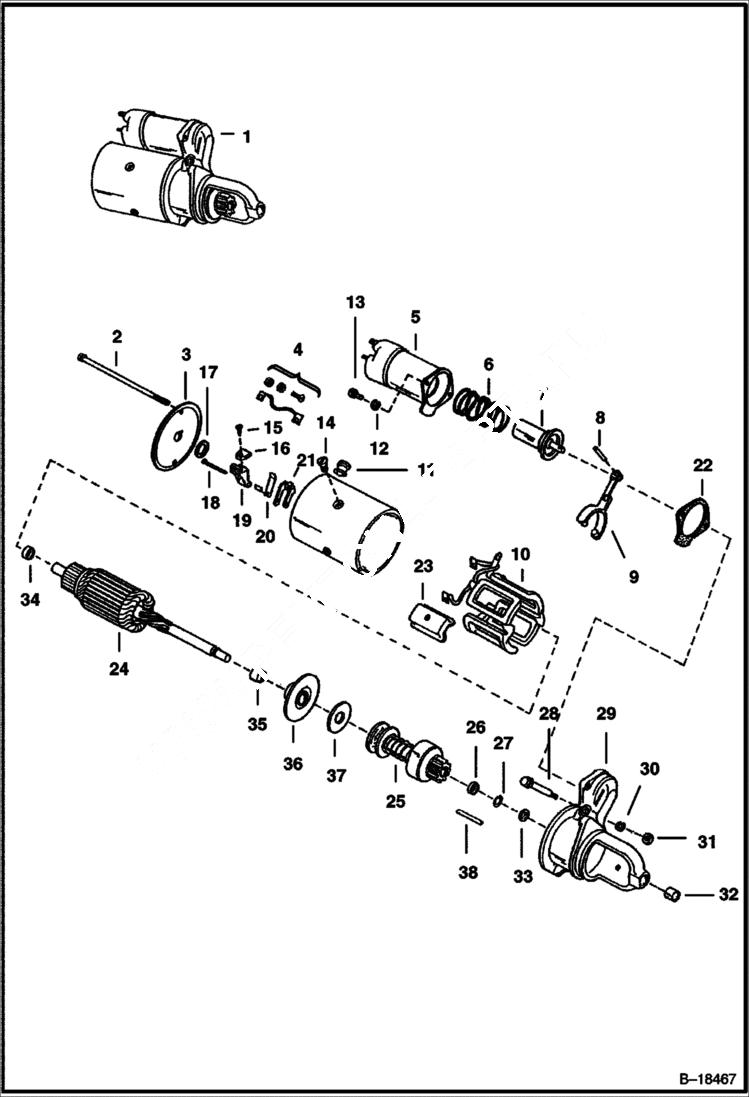

Запчасти Bobcat Articulated Loaders STARTER (Delco 1113598) ELECTRICAL SYSTEM

1

STARTER NLA - Delco 1998339 - Order 6660797 - Was 6630182 - A

1

STARTER NLA - Delco 1113598 - Order 6660797 - Was 6645246 - A

1

6630182REM

STARTER remanufactured

2

6630404

BOLT

3

6630408

FRAME W/Ref. 34

4

6511627

HOLDER

5

6599449

SOLENOID Delco 1998339

5

6632400

SOLENOID Delco 1113598

6

888968

SPRING Delco 1998339 - Was 906910B - A

6

6645248

SPRING Delco 1113598

7

6599448

PLUNGER

8

PIN NLA - Was 6630414 - A

9

896126

LEVER

10

6630407

COIL field

11

GROMMET NLA - Was 898131B - A

12

23E4

WASHER Was 23E000008B - B

13

SCREW NLA - Was 43G000408B - A

14

859377

SCREW

15

6517496

SCREW Ground

15

6630415

SCREW Washer

16

6630403

BRUSH

17

WASHER NLA - Was 863995B - A

18

871521

PIN Was NSS

19

6630402

HOLDER

20

6630406

SPRING

21

6511626

HOLDER

22

991374

GASKET

23

SHOE POLE NLA - Was 887834B - A

24

6511629

ARMATURE Was 991100B - A

25

6598233

DRIVE Delco 1998339

25

6645247

DRIVE ASSY. Delco 1113598 - Was 899271B

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

6630419

HOUSING W/Ref. 32

30

23E5

L WASHER

31

NUT NLA - Was 856357B - A

32

860669

BUSHING

33

COLLAR NLA - Was 898127B - A

34

874935

BUSHING

35

BUSHING NLA - Was 907828B - A

36

6630411

PLATE center bearing - W/Ref. 35

37

6630412

WASHER

38

6630405

DOWEL PIN
