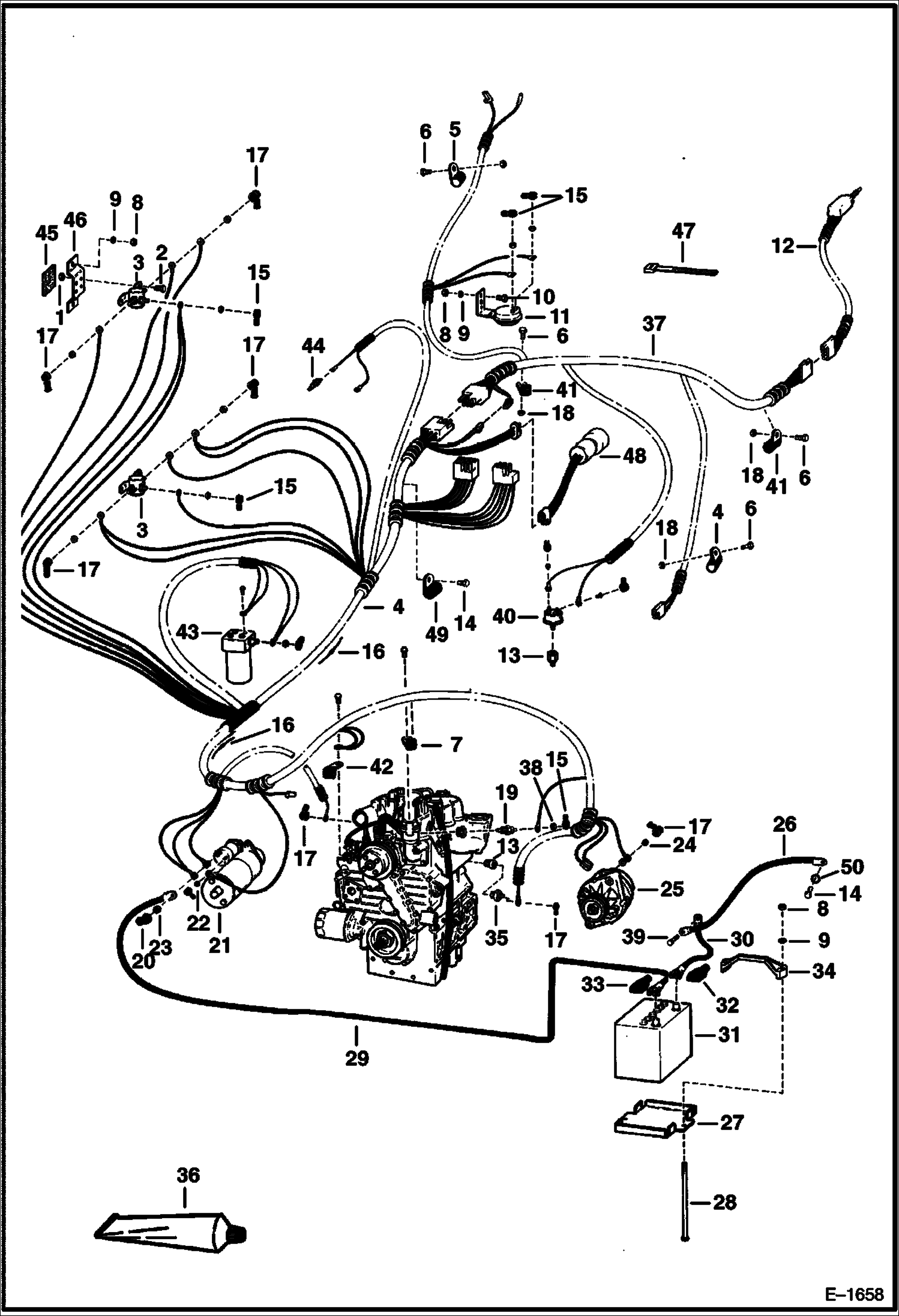

Запчасти Bobcat Articulated Loaders ENGINE ELECTRICAL (S/N 11176 & Above) ELECTRICAL SYSTEM

1

85D4

NUT 5

2

17C408

BOLT

3

6659319

SOLENOID Was 6632186 - A

4

6584478

HARNESS Delco Alternator

4

6529451

HARNESS Bobcat Alternator

4

6529291

HARNESS

5

30H23

CLAMP

6

17C614

BOLT

7

30H41

CLIP Was 30H000030B - A

8

85D5

NUT 5

9

25E15

WASHER

10

17C514

BOLT

11

6665558

HORN Was 6630931 - A

12

SWITCH See Illustration CENTERING MECHANISM/ C2843 See Illustration CENTERING MECHANISM/ B9272 NEUTRAL START & BACK-UP ALARM

13

6563922

SNUBBER W/Filter

13

6563920

FILTER

14

84G3712

BOLT 5

15

616334

COVER

16

3675725

DIODE

16

6567537

DIODE

17

624425

COVER

18

85D6

NUT, 5

19

SWITCH See BTI259 NLA - engine temp. - Was 6599492 - A

19

6658818

SENDER See BTI259 eng temp - threaded connector

20

6560172

COVER

21

STARTER See Illustration STARTER/ B18466 See Illustration STARTER/ D2119 See Illustration STARTER/ B18467

22

12D8

NUT

23

61D6

NUT 5

24

1DM6

NUT Was 4DM6 - A

25

ALTERNATOR See Illustration ALTERNATOR/ B18939 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ D1760

26

6563025

CABLE

27

6561733

MOUNT

28

6569623

BOLT

29

6564991

CABLE Positive

30

6553094

CABLE Negative - Was 6562905 - B

31

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

32

6599652

BOOT

33

2356058

BOOT

34

6569203

CLAMP battery

35

3974263

SWITCH,OIL eng. oil press.

36

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz - See Service Letter dated 24 May 82

37

6584479

HARNESS

37

6529292

HARNESS

38

14D10

NUT

39

17C610

BOLT

40

6671062

SWITCH Hydro pressure - Was 6664577 - A

41

30H46

CLIP

42

30H54

CLIP Was 30H000029B - B

43

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

44

6632633

SWITCH hyd temp

45

6511855

SEAL self adhesive - bulk - sold per foot

46

6584973

BRACKET

47

6610510

TIE nylon

48

6588422

SOLENOID See Illustration THROTTLE & FUEL SHUT-OFF/ D1837 FUEL SHUT-OFF - WAS 6530732 - A

49

30H50

CLIP

50

6E6

WASHER
