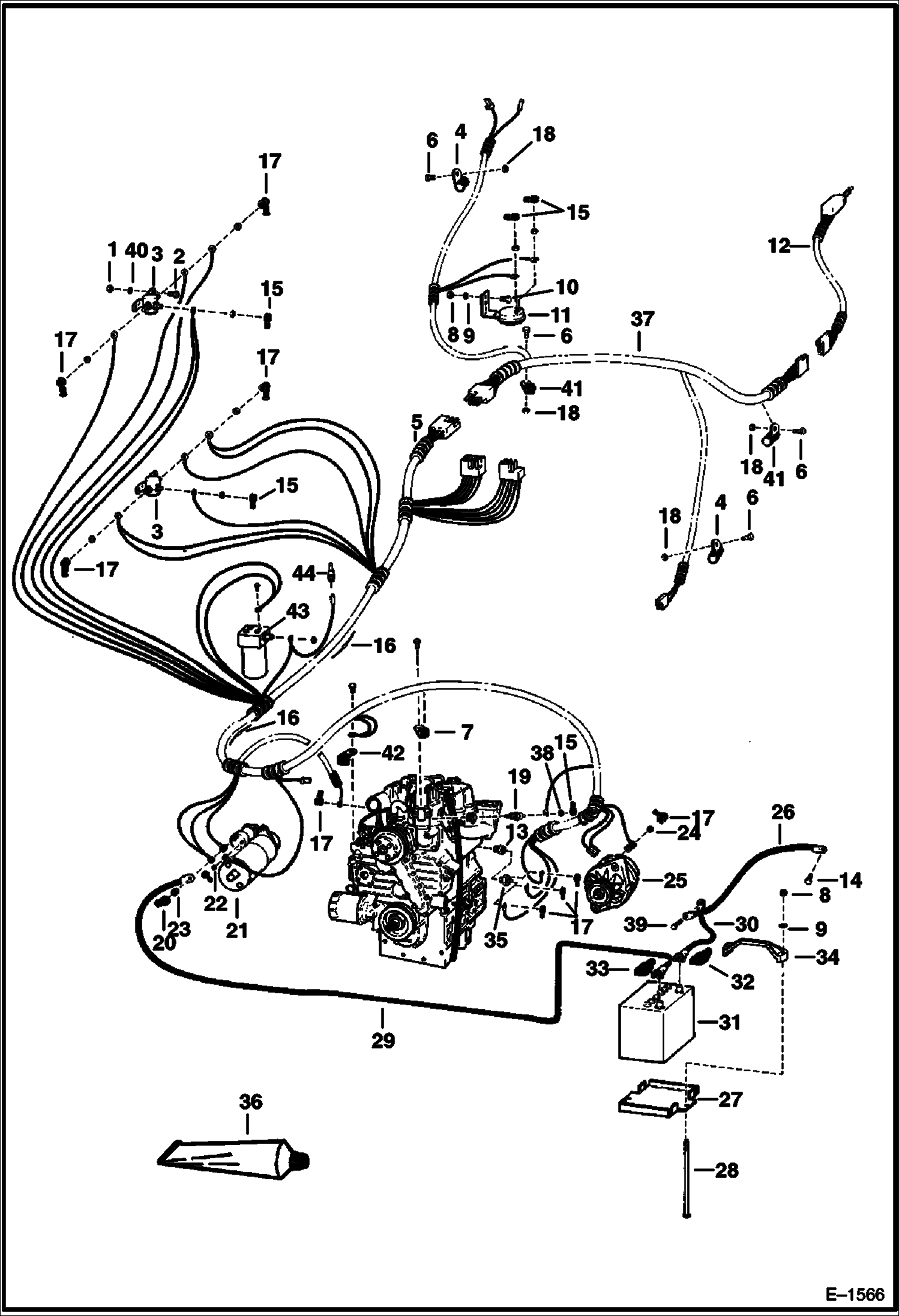

Запчасти Bobcat Articulated Loaders ENGINE ELECTRICAL (S/N 11175 & Below) ELECTRICAL SYSTEM

1

85D4

NUT 5

2

17C412

BOLT 5

3

6659319

SOLENOID Was 6632186 - A

4

30H23

CLAMP

5

6585515

HARNESS

6

17C614

BOLT

7

30H30

CLAMP

8

85D5

NUT 5

9

25E15

WASHER

10

17C514

BOLT

11

6665558

HORN Was 6630931 - A

12

6584599

SWITCH neutral start & back-up alarm - Was 6584975 - A

13

6557453

ADAPTER

14

84G3712

BOLT 5

15

616334

COVER

16

3675725

DIODE

17

624425

COVER

18

85D6

NUT, 5

19

SWITCH NLA - temp. engine - Order 6669663 gauge & 6687620 temp sender - Was 6599933 - A

20

6560172

COVER

21

STARTER See Illustration STARTER/ B18466 See Illustration STARTER/ D2119 See Illustration STARTER/ B18467

22

12D8

NUT

23

61D6

NUT 5

24

1DM6

NUT Was 4DM6 - A

25

ALTERNATOR See Illustration ALTERNATOR/ B18939 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ D1760

26

6563025

CABLE

27

6561733

MOUNT

28

6569623

BOLT

29

6564991

CABLE Positive

30

6553094

CABLE Negative - Was 6562905 - B

31

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

32

6599652

BOOT

33

2356058

BOOT

34

6569203

CLAMP battery

35

6585357

SWITCH eng. oil press.

36

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz - See Service Letter dated 24 May 82

37

6585514

HARNESS

38

14D10

NUT

39

17C610

BOLT

40

6E4

WASHER 10

41

30H31

CLAMP 10

42

30H29

CLAMP

43

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

44

6598384

SWITCH hyd. temp.
