Запчасти Bobcat Articulated Loaders BRAKE Mico/(Sy-Tec - S/N 12001 & Above) HYDROSTATIC SYSTEM

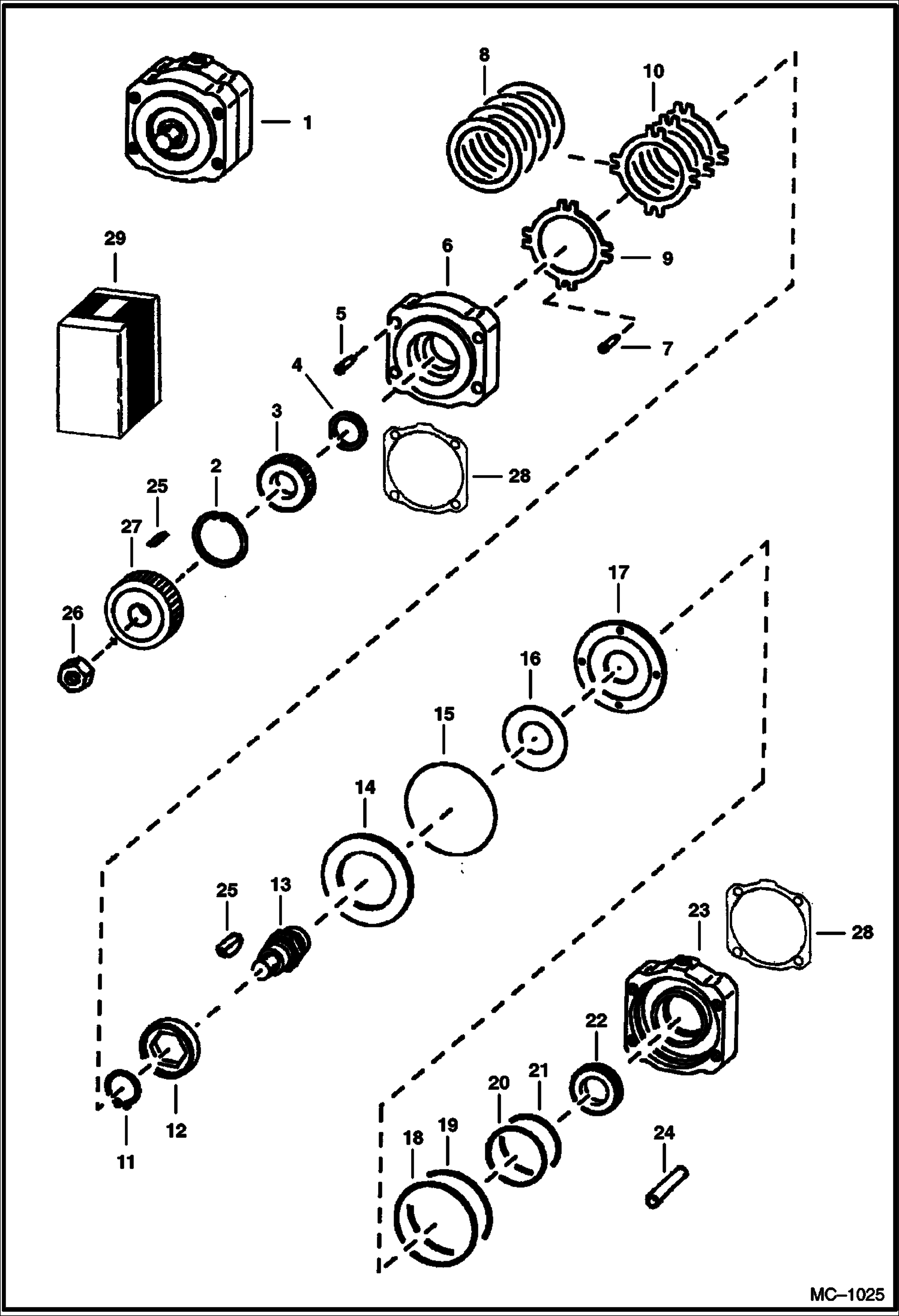

Схема запчастей Bobcat Articulated Loaders - BRAKE Mico/(Sy-Tec - S/N 12001 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6643308

BRAKE ASSY. ref. 2-24

2

6646657

SNAP RING

3

6646656

BEARING

4

6646673

SEAL

5

6646674

SCREW

6

6646658

HOUSING

7

6646659

SCREW

8

6646663

ROTOR

9

6646660

PRIMARY

10

6646661

STATOR

11

6646672

SNAP RING

12

6646671

SPLINE

13

6646655

SHAFT

14

6646676

PLATE

15

6646662

O-RING

16

6646669

SPRING Belleville

17

6646666

PISTON

18

6646664

RING back-up

19

6646665

O-RING

20

6646667

RING back-up

21

6646668

O-RING

22

6646670

BEARING

23

HOUSING NLA - Was 6646675 - A

24

DOWEL PIN NLA - Was6646677 - A

25

6586235

KEY

26

6584119

NUT

27

GEAR NLA - Was 6632457 - A

28

6662341

GASKET

29

6661358

KIT Lining/disk repair - W/Ref. 8-10, 15 & 28

29

6661359

KIT Bearing repair - W/Ref. 3, 4 ,15 & 28

29

6661360

KIT O-ring/seal repair - W/Ref. 4, 15 , 18-21 & 28

Выбрано товаров: 31
