Запчасти Bobcat Articulated Loaders BRAKE LINKAGE HYDROSTATIC SYSTEM

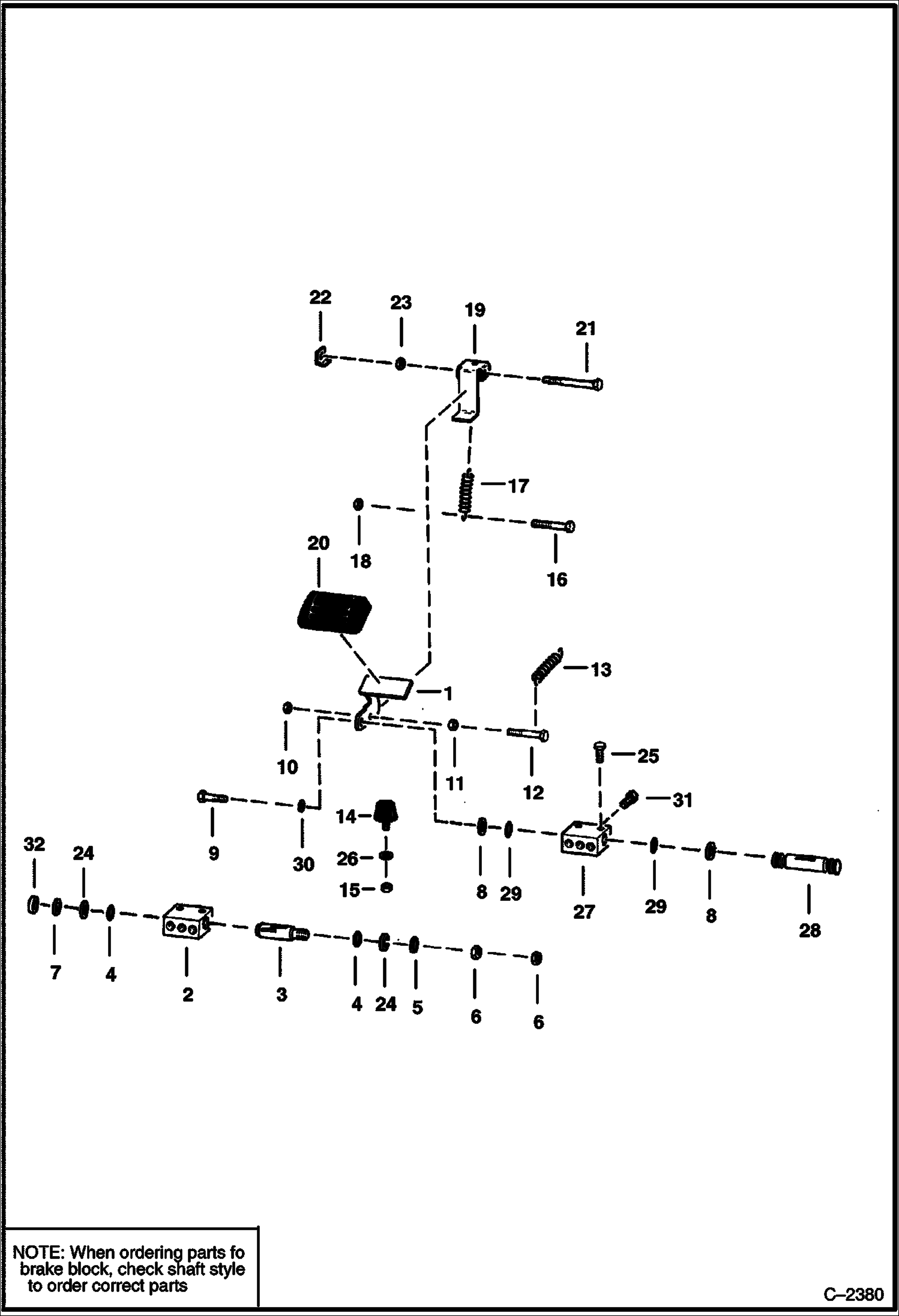

Схема запчастей Bobcat Articulated Loaders - BRAKE LINKAGE HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6584857

BRAKE PEDAL

2

BLOCK NLA - Order Ref. 8, 9 & 27-31

3

6584861

SHAFT

4

25K30020

O-RING 10

5

6584863

SPACER

6

7D8

NUT 5

7

6584862

SPACER

8

799119

RING

9

35C412

BOLT Was 17C000412B - A

10

85D6

NUT, 5

11

7D6

NUT

12

17C620

BOLT

13

6505076

SPRING

14

6630167

STOP rubber

15

61D4

NUT 5

16

17C528

BOLT

17

6519417

SPRING

18

7D5

NUT

19

6584854

LOCK

20

PAD NLA - Was 1618250B - A

21

17C540

BOLT

22

6584855

ANGLE

23

61D5

NUT

24

73K114

RING back-up

25

17C516

BOLT

26

6E4

WASHER 10

27

6530620

BLOCK

28

6530626

SHAFT

29

6647876

O-RING Was 6646631 - A

30

25E14

WSHR

31

24K3

PLUG

32

6584870

WASHER

Выбрано товаров: 32
