Запчасти Bobcat Articulated Loaders SERVO (S/N 11999 & Below) HYDROSTATIC SYSTEM

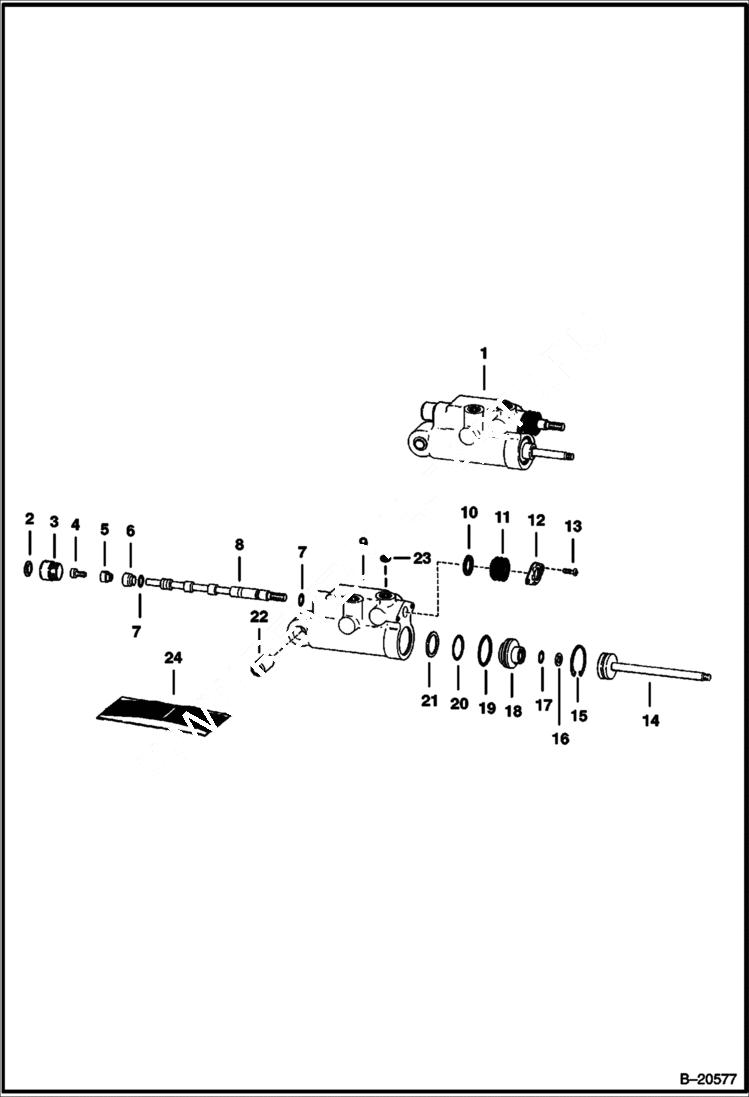

Схема запчастей Bobcat Articulated Loaders - SERVO (S/N 11999 & Below) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

SERVO NLA - Ref. 2-22 - Order 6632644 - Was 6584477 - A

1

SERVO, HYD STEERING NLA - Was 6632644 - A

2

2509193

PLUG

3

6598863

CAP

4

73G416

SCREW

5

6599743

STOP spool

6

994785

RETAINER

7

O-RING NSS

8

SPOOL NSS

9

BODY NSS

10

WASHER NLA - breather - Was 5290347 - A

11

5290349

SEAL

12

5290348

RET

13

87G1005

SCREW

14

6630483

ROD & PISTON assy.

15

661415

SNAP RING retainer

16

SEAL NSS - wiper

17

O-RING NSS

18

6598866

HEAD

19

O-RING NSS

20

O-RING NSS

21

RING NSS - wear

22

6598865

BUSHING

23

6630273

ORIFICE .070 - Not with Servo

24

6630484

SEAL KIT ref. 7, 11, 12, 15-17, 19, 20 & 21

Выбрано товаров: 25
