GEAR PUMP (Tyrone)

Запчасти Bobcat Articulated Loaders GEAR PUMP (Tyrone) HYDROSTATIC SYSTEM

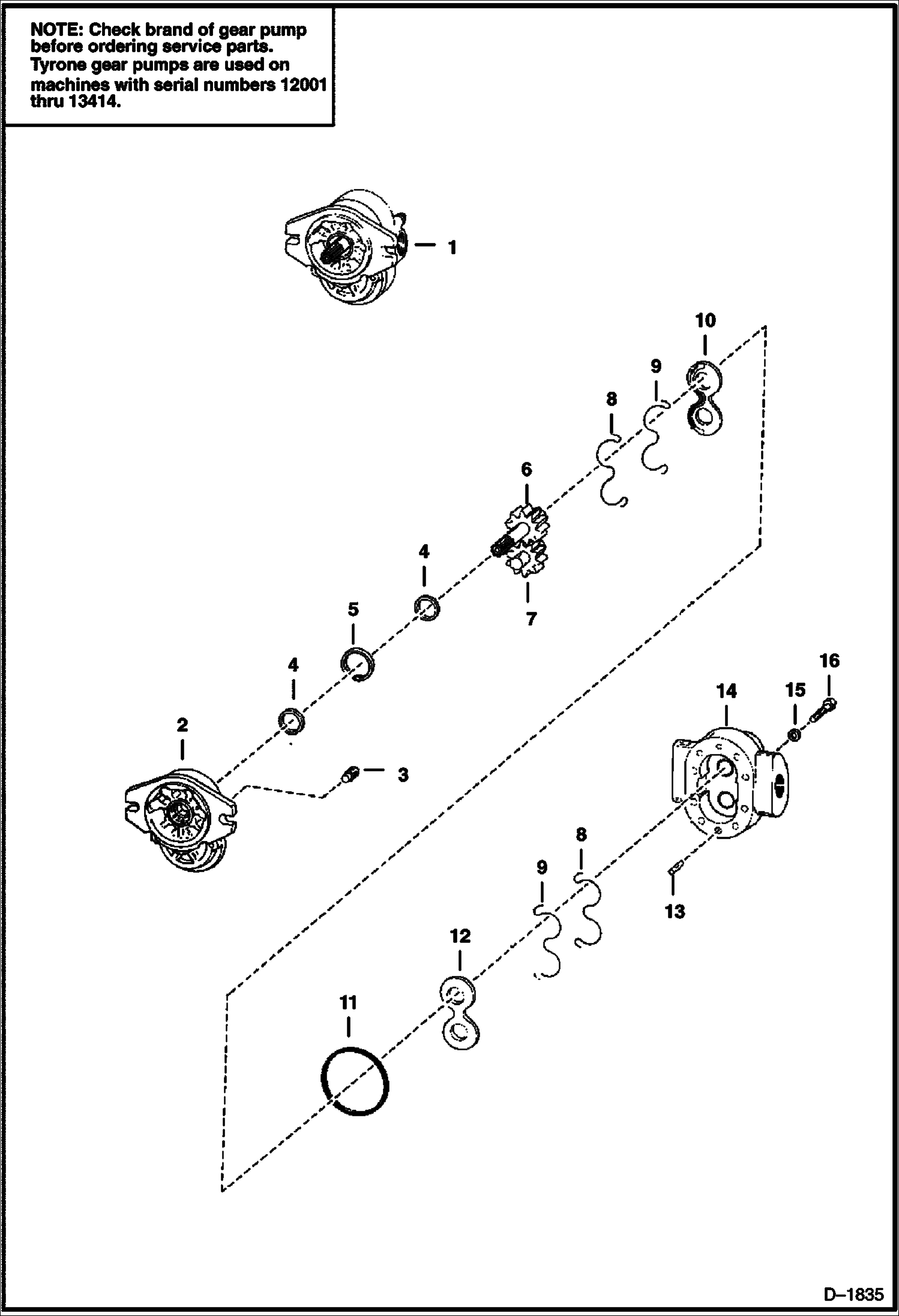

Схема запчастей Bobcat Articulated Loaders - GEAR PUMP (Tyrone) HYDROSTATIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PUMP NLA - Order 6663903 pump & 6588335 tubeline - Was 6632458 - A

2

6646820

FLANGE

3

6646834

PLUG

4

6646825

SEAL

5

6646824

SNAP RING

6

6646822

DRIVE GEAR

7

6646823

IDLER GEAR

8

6646831

O-RING

9

6646830

RING

10

6646828

PLATE

11

6646826

O-RING

12

6646829

PLATE

13

6646827

DOWEL

14

6646821

BODY

15

6646832

WASHER

16

6646833

BOLT
