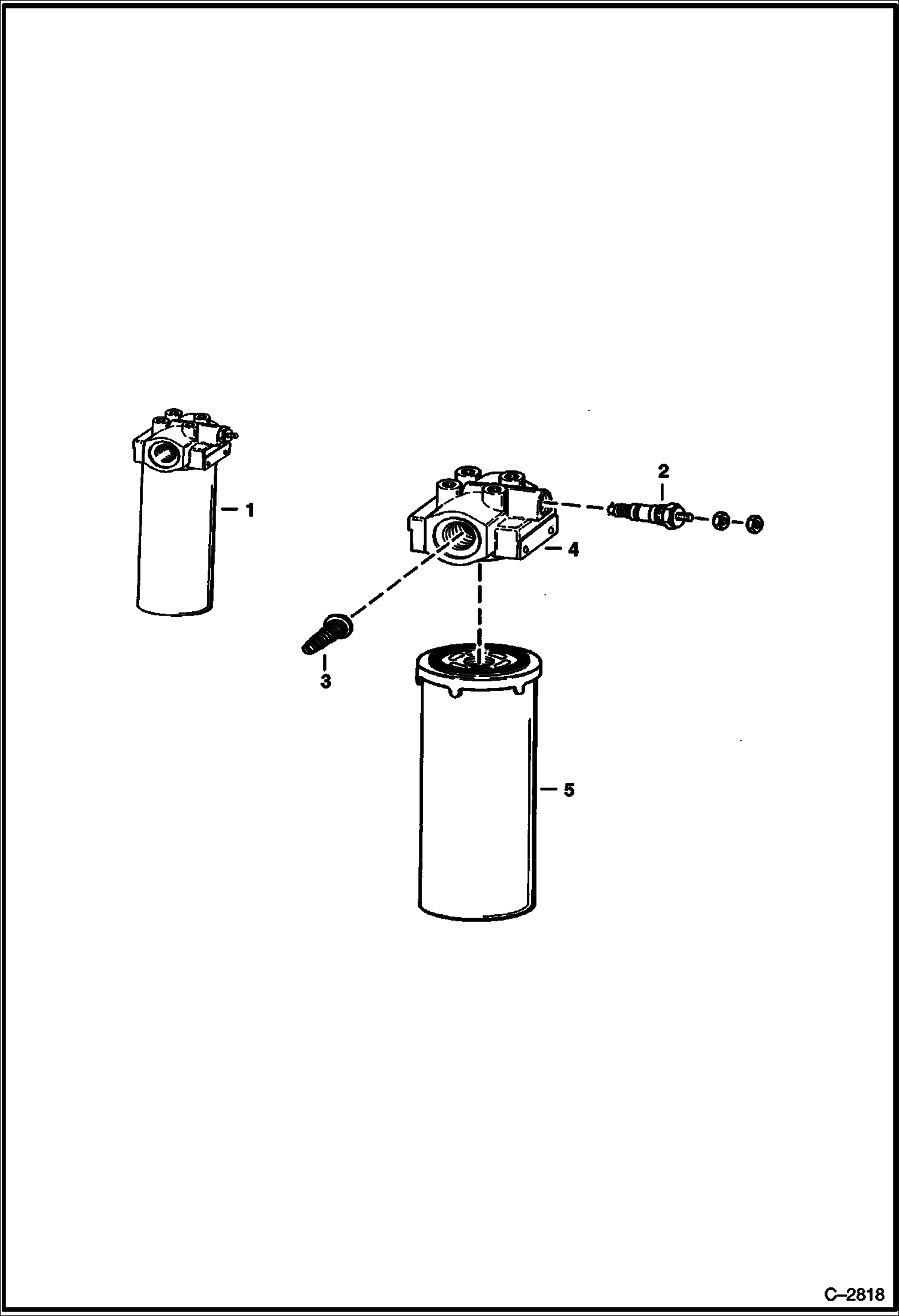

Запчасти Bobcat Articulated Loaders HYDROSTATIC OIL FILTER HYDROSTATIC SYSTEM

1

FILTER ASSY. NLA - W/Ref. 2-5 - 25 PSI by-pass & switch - When replacing the 25 PSI by-pass filter assy. with the 50 PSI by-pass filter assy., metal stamp the 50 PSI filter head to read 50 PSI so when

1

6631706

FILTER ASSY. W/Ref. 2-5 - 50 PSI by-pass & switch

2

6599364

SWITCH pressure - Use W/25 PSI Filter

2

6632053

SWITCH pressure - Use W/50 PSI Filter

2

6599365

KIT Nut, washer & o-rings for 6599364 & 6632053 switches

3

VALVE NLA - by-pass - 25 PSI - Order Ref. 1

3

VALVE NLA - by-pass - 50 PSI - Order Ref. 1

4

HEAD NSS - Order Ref. 1

5

6668819

FILTER, OIL HYD Was 6598903 - A
