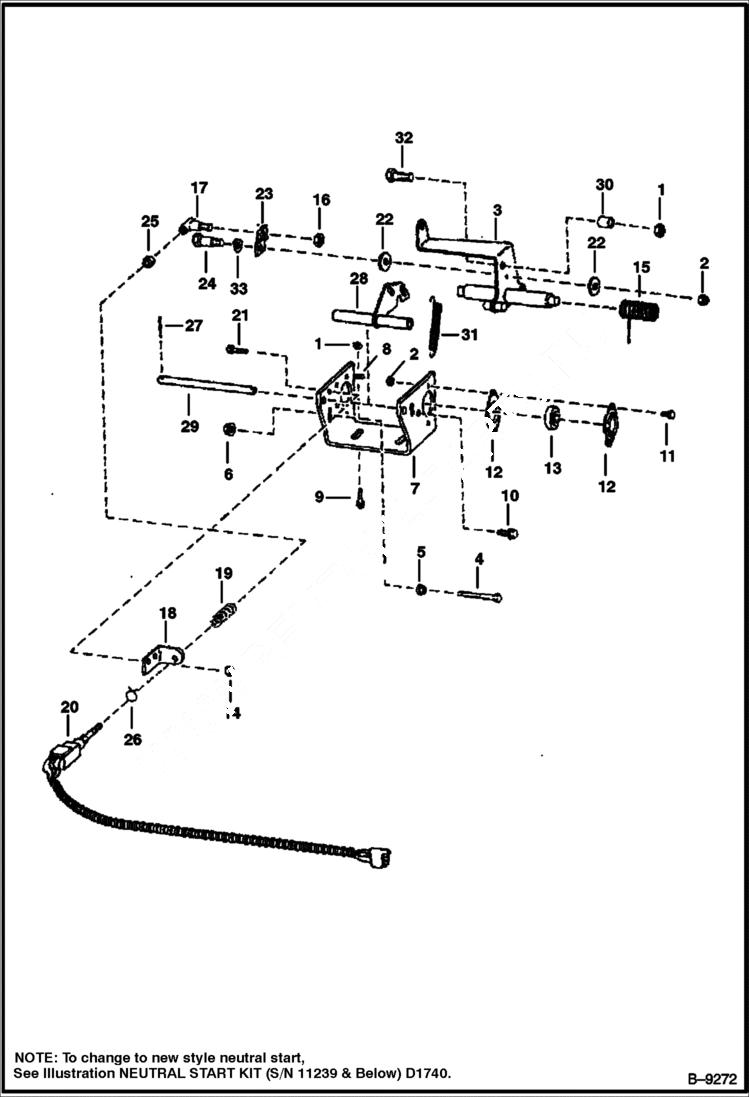

Запчасти Bobcat Articulated Loaders CENTERING MECHANISM (S/N 11239 & Below) HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

85D4

NUT 5

3

6585419

BELLCRANK

4

17C652

BOLT

5

55D6

NUT Was 6599334

6

6599336

NUT

7

6585451

MOUNT

8

25E17

WASHER 5

9

17C620

BOLT

10

84G3716

SCREW 5

11

17C412

BOLT 5

12

6584087

FLANGETTE

13

6584086

BEARING

14

85D5

NUT 5

15

6561197

SPRING

16

86D5

NUT

17

6512356

BALL JOINT

18

6584746

BRACKET

19

6599777

BOOT

20

6584599

SWITCH neutral start & back-up alarm - See Service Letter 19 Nov 85 - Was 6584975 - A

21

17C512

BOLT 5

22

6584346

WASHER plastic

23

6584344

LINK

24

1307966

SCREW

25

8D5

NUT

26

42H6

HOSECLAM5 Was 17H000007B - A

27

1F416

PIN

28

6585457

BRACKET lockout

29

6585458

PIN lockout

30

6585460

TUBE

31

6610077

SPRING

32

17C624

BOLT 5

33

9EM80

WSHR PLTE
