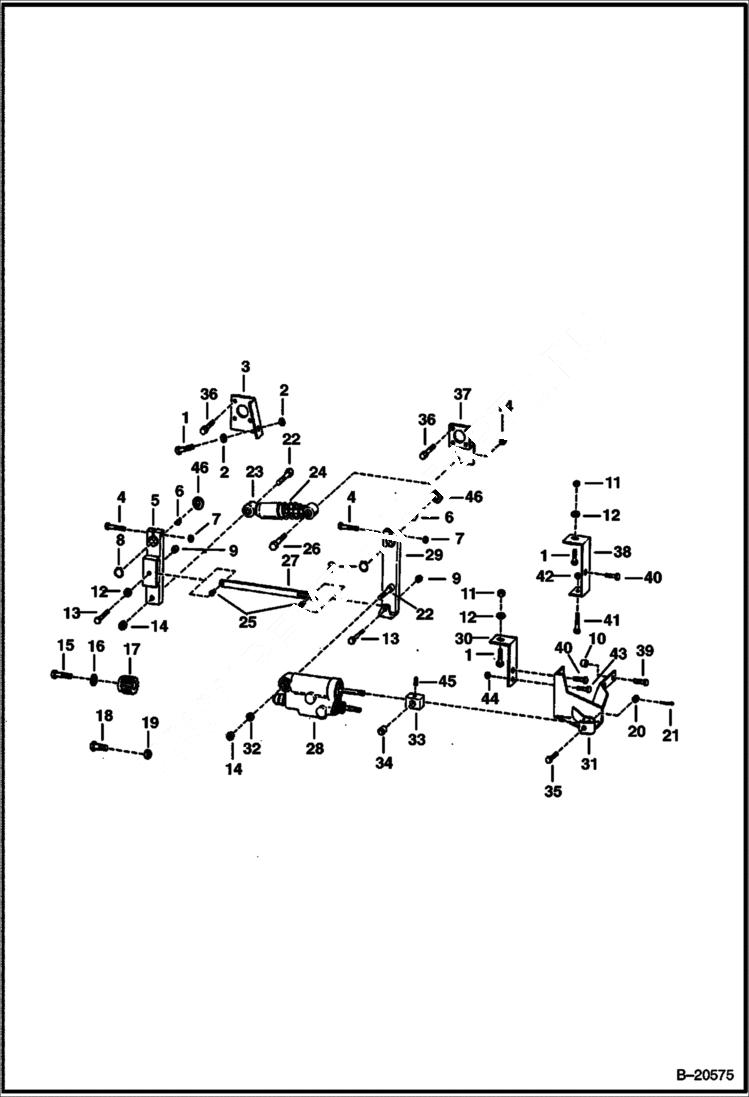

Запчасти Bobcat Articulated Loaders HYDROSTATIC CONTROLS (S/N 11999 & Below) HYDROSTATIC SYSTEM

1

17C620

BOLT

2

61D6

NUT 5

3

6585494

STOP

4

17C540

BOLT

5

6585454

LEVER pintle

6

5J806

KEY

7

61D5

NUT

8

1320431

RING, SNAP Was 6538286 - A

9

86D6

NUT

10

6585244

SPACER

11

85D6

NUT, 5

12

25E17

WASHER 5

13

18C628

BOLT

14

85D10

NUT, 5

15

18C616

BOLT 5

16

616783

WASHER

17

7106572

ADAPTER, SHAFT Was 6558924 - A

18

17C828

BOLT

19

6512896

NUT

20

4D6

NUT

21

1F312

PIN

22

17C1048

BOLT

23

SHOCK NLA - Was 6632030 - A

24

6584137

SPRING

25

6584369

BUSHING

26

17C1036

BOLT

27

6585456

LINK

28

SERVO See Illustration SERVO/ B20577

29

6585432

LEVER pintle

30

6585421

MOUNT R.H.

31

6585247

MOUNT

32

6584265

WASHER

33

6521959

BLOCK servo - fine thread

34

6665701

BUSHING, PRESS FIT Was 6630081 - A

35

6584753

BOLT

36

6598727

BOLT

37

6584111

MOUNT

38

6585422

MOUNT L.H.

39

17C676

BOLT

40

17C816

BOLT

41

17C440

BOLT

42

85D4

NUT 5

43

17C616

BOLT 5

44

61D6

NUT 5

45

33G404

SET SCRW5

46

6529479

BUSHING
