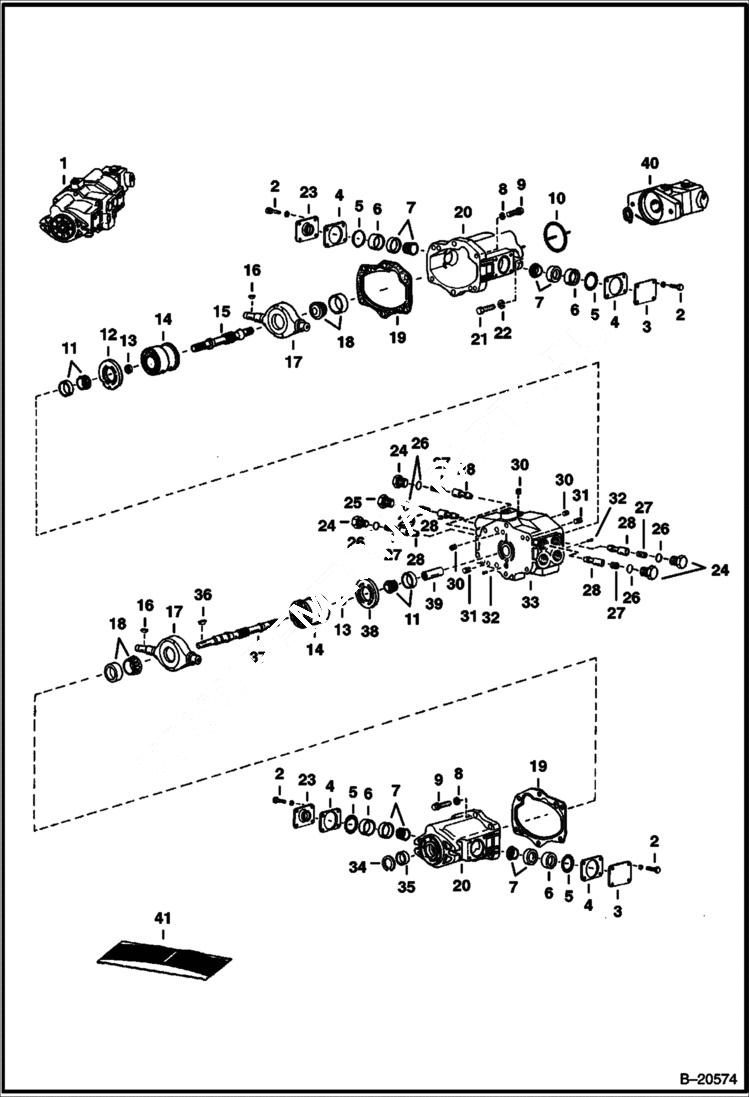

Запчасти Bobcat Articulated Loaders HYDROSTATIC PUMP (Vickers - S/N 11999 & Below) HYDROSTATIC SYSTEM

1

6599901

PUMP New

1

6630504REM

PUMP, HYD remanufactured - Was 6630504 - A

2

6513631

BOLT

3

6512939

COVER

4

6512940

SHIM KIT

5

O-RING NSS

6

6512938

SPACER

7

232539

BEARING

8

4E6

WASHER

9

93G624

SCREW

10

6512949

O-RING Was NSS - D

11

6513093

BEARING

12

6598478

WEAR PLATE

13

6512948

KIT

13

6674240

SPACER (.137 in.)

13

6674241

SPACER (.139 in.)

13

6674242

SPACER (.142 in.)

13

6674243

SPACER (.145 in.)

13

6674244

SPACER (.148 in.)

13

6674245

SPACER (.151 in.)

13

6674246

SPACER (.154 in.)

13

6674247

SPACER (.157 in.)

13

6674248

SPACER (.160 in.)

13

6674249

SPACER (.163 in.)

13

6674250

SPACER (.166 in.)

13

6674251

SPACER (.169 in.)

14

ROTATING GROUP NLA - Was 6512930 - A

15

6512932

SHAFT

16

5J806

KEY

17

6512929

YOKE

18

6513091

BEARING

19

6512941

GASKET

20

HOUSING NLA - Was 6598433 - A

21

17C820

BOLT

22

616791

WASHER

23

6513094

COVER & SEAL

24

24K8

PLUG

25

6513434

PLUG

26

79K12

O RING 10

27

6512944

SPRING

28

POPPET NLA - Was 6512945 - A

29

6512946

SPRING

30

16F4

PLUG

31

6513089

PIN

32

6513092

PIN

33

BODY NLA - valve - Was 6512931 - A

34

507695

SNAP RING

35

6513090

SEAL, SHAFT

36

6519654

KEY

37

6512942

SHAFT, DRIVE HYD

38

WEAR PLATE NLA - Was 6598477 - A

39

6512933

COUPLER

40

PUMP See Illustration VANE PUMP/ D1171 VANE

41

6598826

SEAL KIT ref. 5, 10, 19, 23, 26 & seals in vane pump
