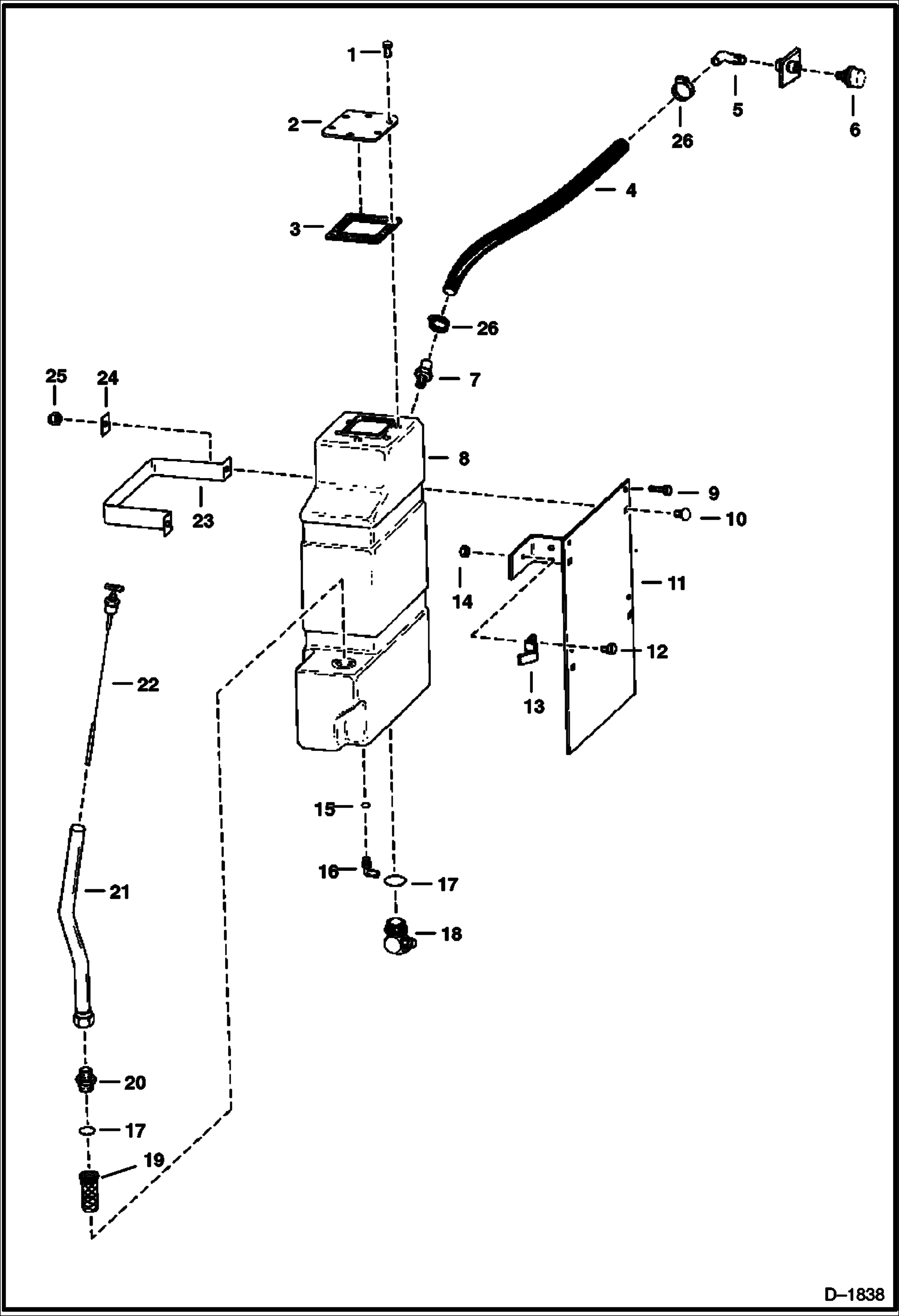

Запчасти Bobcat Articulated Loaders HYDRAULIC TANK (S/N 12001 & Above) HYDROSTATIC SYSTEM

1

17C410

BOLT 10

2

6530713

COVER

3

6584499

GASKET

4

6577822

HOSE bulk - Sold Per Foot - Was 672221B - A

5

6631061

ELBOW

6

7025626

VENT, BREATHER - Was 6684923 - A

7

6512805

ADAPTER

8

TANK NLA - Was 6584503 - A

9

17C610

BOLT

10

7C612

BOLT

11

6585572

MOUNT

12

17C510

BOLT

13

30H58

CLIP

14

85D5

NUT 5

15

79K10

O RING 10

16

17K7

ELBOW W/Ref. 15

17

79K20

O RING 10

18

6002264

ELBOW

19

6564059

SCREEN

20

15K11

FTG

21

6584501

TUBE dipstick

22

6646632

DIPSTICK

23

6584493

BAND

24

6559447

WASHER

25

85D6

NUT, 5

26

42H12

CLAMP 10
