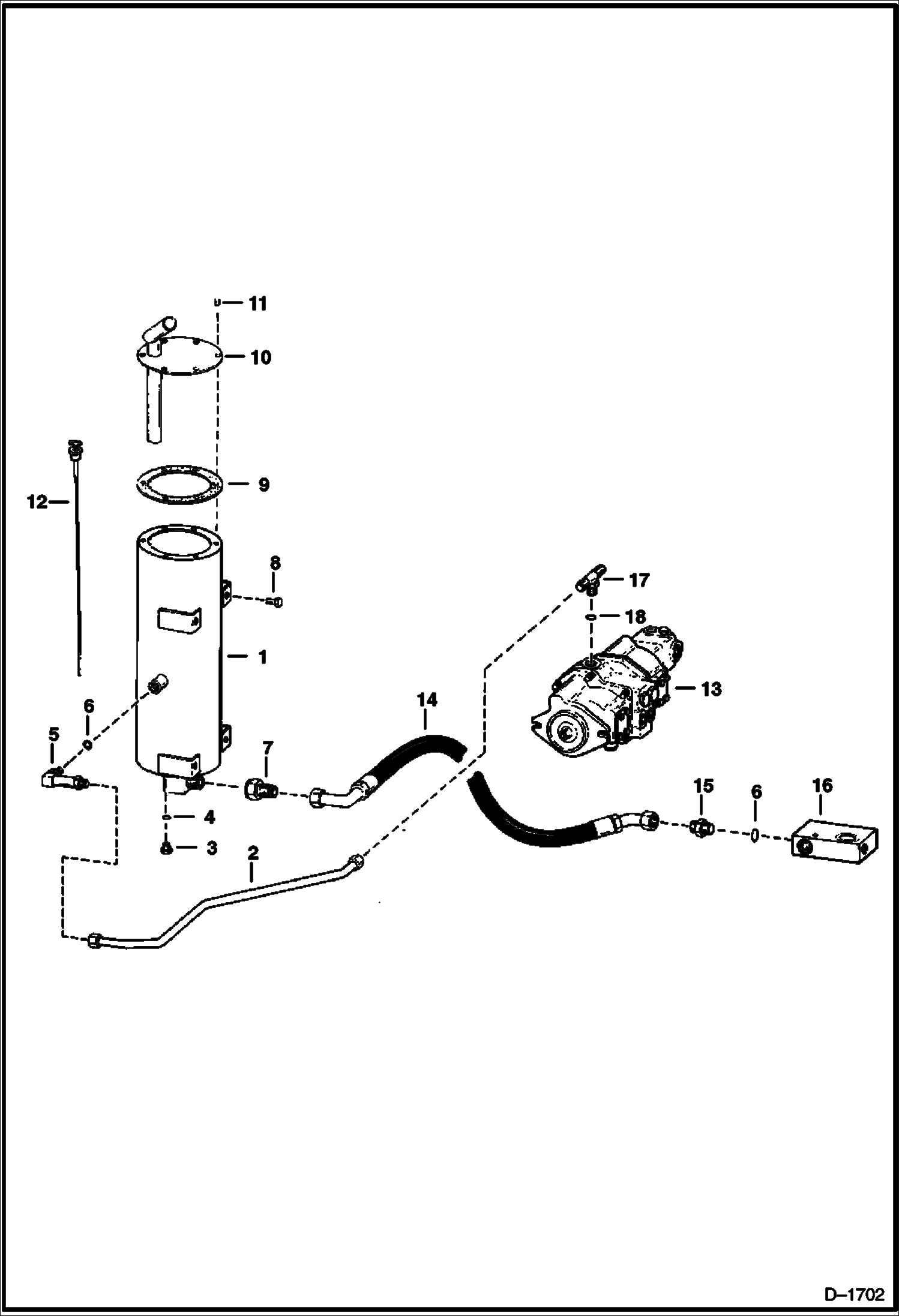

Запчасти Bobcat Articulated Loaders HYDRAULIC TANK (S/N 11175 & Below) HYDROSTATIC SYSTEM

1

6585224

TANK

2

6585436

TUBE

3

24K7

PLUG W/Ref. 4

4

79K10

O RING 10

5

755834

ELBOW W/Ref. 6

6

79K16

O RING 10

7

1325584

ADAPTER

8

17C512

BOLT 5

9

GASKET NLA - Was 6585564 - A

10

6585562

COVER

11

35C512

BOLT

12

6585355

DIPSTICK

13

PUMP

14

6585583

HOSE Was 6584319 - A

15

15K10

ADAPTOR W/Ref. 6

16

6585202

BLOCK

17

6561477

TEE W/Ref. 18

18

79K12

O RING 10
