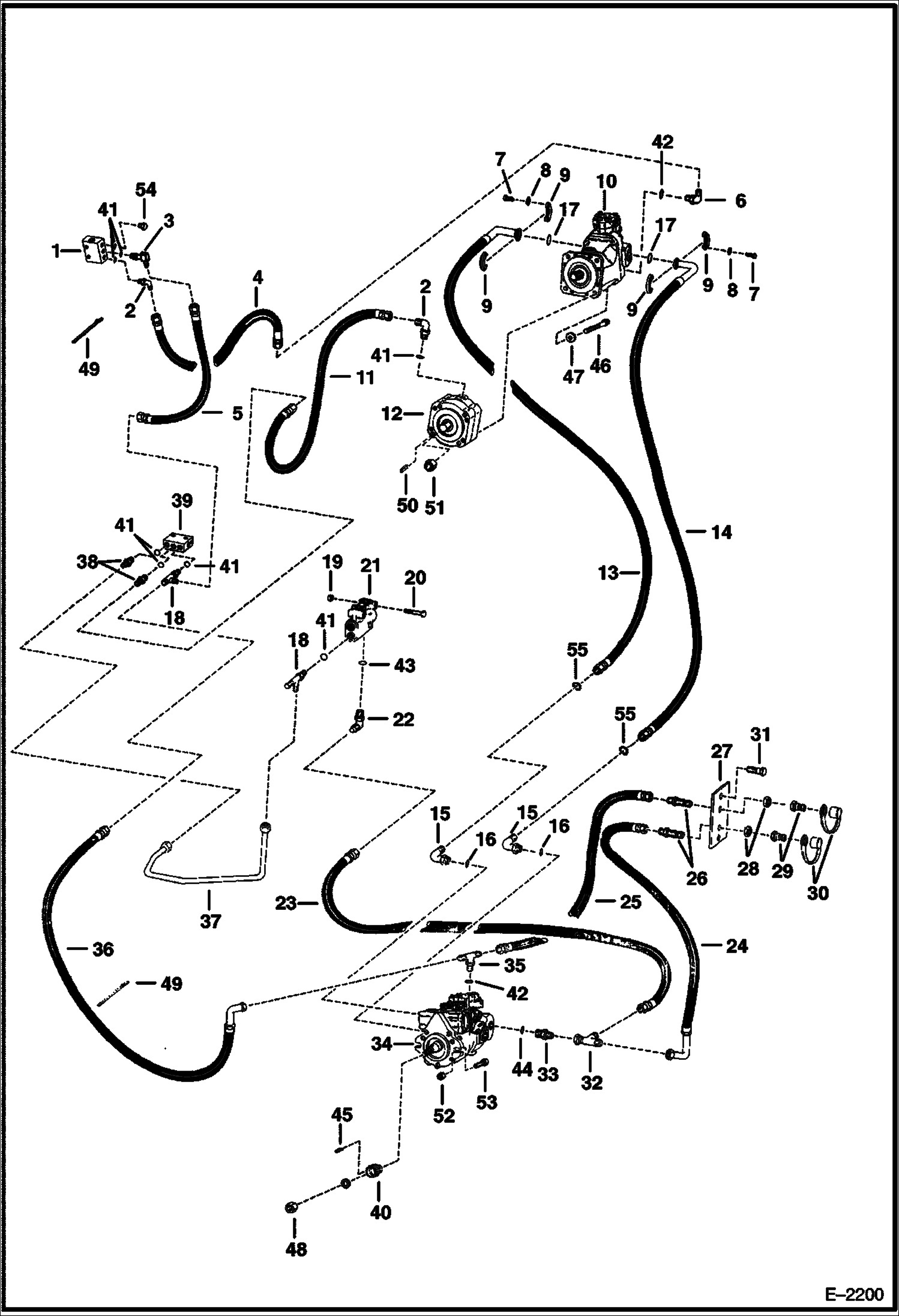

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY (S/N 12313 & Above) HYDROSTATIC SYSTEM

1

VALVE ASSY. See Illustration 2-SPEED VALVE/ B11659 NLA - 2-SPEED - WAS 6530693 - A

2

17K3

ELBOW W/Ref. 41

3

6564153

ELBOW

4

6587179

HOSE

5

6530901

HOSE

6

17K5

ELBOW W/Ref. 42

7

17C728

BOLT

8

4E7

WASHER

9

20J16

FLANGE

10

MOTOR See Illustration HYDROSTATIC MOTOR/ B13754

11

6530719

HOSE

12

BRAKE See Illustration BRAKE/ MC1025

13

6646615

HOSE

14

6646616

HOSE

15

42E1616

ELBOW Was 55E000016B - A

16

79K16

O RING 10 Was 58K000021B - B

17

58K219

O RING 10 Was 79K000016B - B

18

21K3

CONNECTOR W/Ref. 41

19

85D5

NUT 5

20

17C536

BOLT

21

6599775

VALVE See Illustration PRIORITY VALVE/ B6915 PRIORITY

22

17K7

ELBOW W/Ref. 43

23

6544697

HOSE

24

6530715

HOSE

25

6530714

HOSE

26

45K6

CONNECTR

27

6530716

MOUNT

28

86F6

NUT

29

6646635

COUPLER diagnostic

30

6630367

CAP

31

17C512

BOLT 5

32

13K7

FITTING

33

15KB1012

FITTING, HYD CONNECTOR W/Ref. 44 - Was 755055B - B

34

PUMP See Illustration HYDROSTATIC PUMP/ E1805

35

19K5

FITTING W/Ref. 42

36

6530697

HOSE

37

6585442

TUBE

38

15K3

CONNECTOR W/Ref. 41

39

VALVE brake Assy.

40

6530623

ADAPTER spline

41

79K4

O RING 10

42

79K6

O RING 10

43

79K10

O RING 10

44

79K12

O RING 10

45

6J807

KEY, WOODRUFF Was 7J-4106 - D

46

73G882

BOLT

47

6557929

WASHER

48

92D12

NUT Was 86D000012B - B

49

6624289

STRAP, TIE

50

6586235

KEY

51

6584119

NUT

52

83D8

NUT 5

53

17C836

BOLT

54

24K3

PLUG

55

58K21

O RING 10
