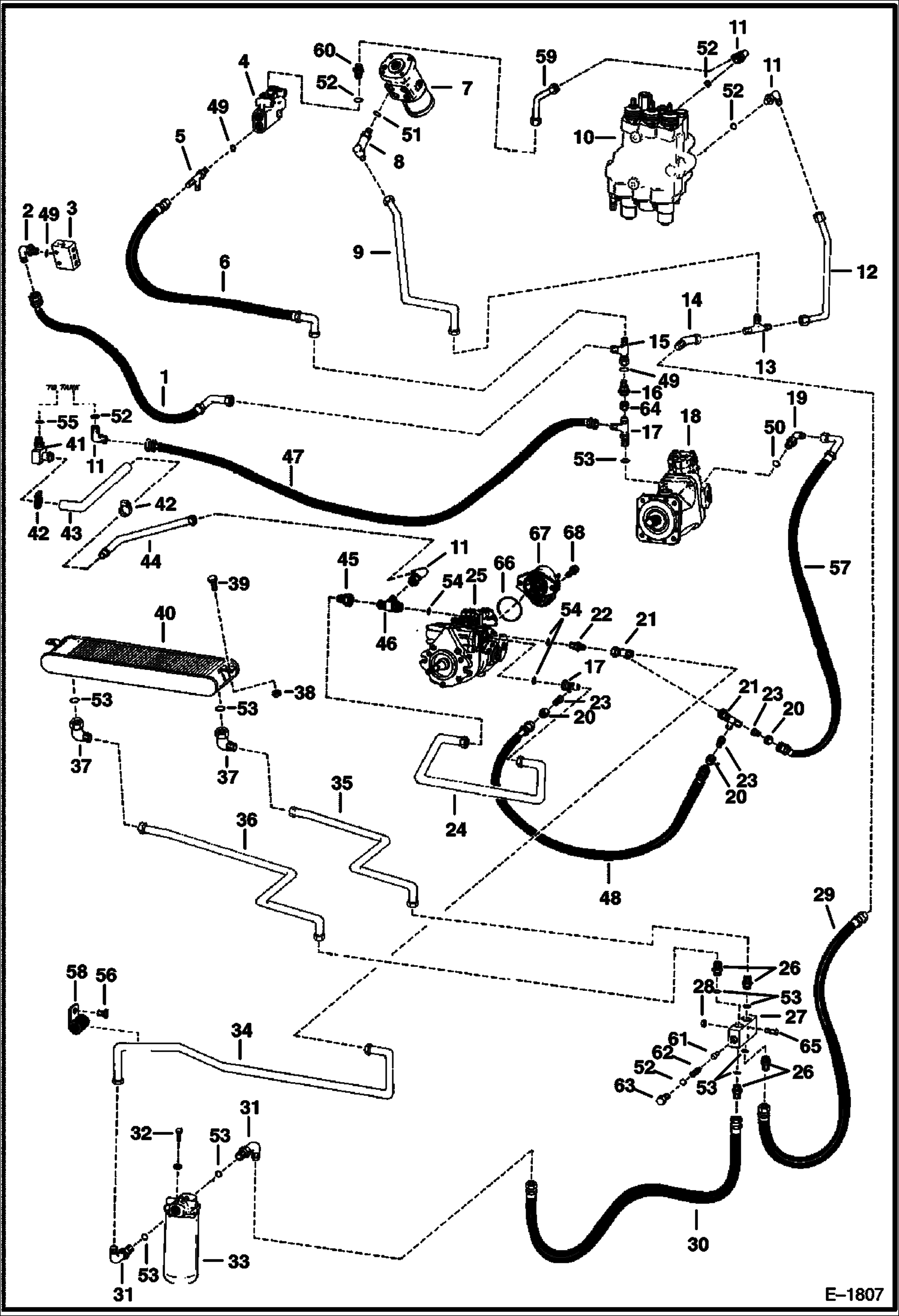

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY (S/N 12001 & Above) HYDROSTATIC SYSTEM

1

1516294

HOSE Was 6530903 - A

2

17K3

ELBOW W/Ref. 49

3

VALVE ASSY. See Illustration 2-SPEED VALVE/ B11659 NLA - 2-SPEED - WAS 6530693 - A

4

6599775

VALVE See Illustration PRIORITY VALVE/ B6915 PRIORITY

5

21K3

CONNECTOR W/Ref. 49

6

6530902

HOSE

7

6599737

VALVE steering control

8

6812820

ELBOW W/Ref. 51 - Was 6511914 - A

9

6530699

TUBE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 See Illustration VALVE/ B20571

11

17K7

ELBOW W/Ref. 52

12

6530700

TUBE

13

1316264

TEE Was 12K000008B - D

14

12K7

UNION

15

13K3

TEE

16

6646896

ADAPTER

17

TEE NLA - W/Ref. 53 - Was 21K000008B - A

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B13754 See Illustration HYDROSTATIC MOTOR/ D1828

19

17K5

ELBOW W/Ref. 50

19

1308474

FITTING W/Ref. 53

20

80F8

ADAPTER

21

13K8

TEE

22

15KB1216

FITTING, HYD CONNECTOR W/Ref. 54 - Was 712555B - A

23

9K8

ADAPTER reducing - Was 16K000008B - A

24

6530708

TUBE Use with Tyrone gear pump

24

6588335

TUBE Use with J.S.Barnes gear pump

25

PUMP See Illustration HYDROSTATIC PUMP/ E1805

26

15K8

FITTING W/Ref. 53

27

6584645

VALVE ASSY. by-pass

28

85D6

NUT, 5

29

6530704

HOSE

30

6530904

HOSE Was 6530705 - A

31

17K8

FITTING W/Ref. 53

32

35C610

BOLT 5

33

6631706

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

34

6530706

TUBE

35

6530702

TUBE

36

6530701

TUBE

37

11K8

ELBOW

38

83D6

NUT 5

39

35C612

BOLT

40

6645543

OIL COOLER

41

6002264

ELBOW W/Ref. 55

42

44H20

CLAMP Was 42H000020B - A

43

6530797

HOSE

44

6530796

TUBE

45

2549298

ADAPTER Was 6646643 - A

46

TEE NLA - W/Ref. 54 - Was 21K000010B - A

47

6586259

HOSE

48

6586240

HOSE Was 6530799 - D

49

79K4

O RING 10

50

79K6

O RING 10

50

79K12

O RING 10

51

79K8

O RING 10

52

79K10

O RING 10

53

79K12

O RING 10

54

79K16

O RING 10

55

79K20

O RING 10

56

84G3712

BOLT 5

57

6586241

HOSE Was 6583836 - A

57

6587180

HOSE

58

6536952

CLAMP Was 30H000042B - B

59

6585204

TUBE

60

15K7

FITTING W/Ref. 52 - Was 15K000003B - B

61

6515078

POPPET

62

SPRING NLA - Was 6584305 - A

63

24K7

PLUG W/Ref. 52

64

6646897

NUT

65

17C644

BOLT

66

25K30308

O RING 10

67

PUMP See Illustration GEAR PUMP/ D1835

68

35C620

BOLT 5
