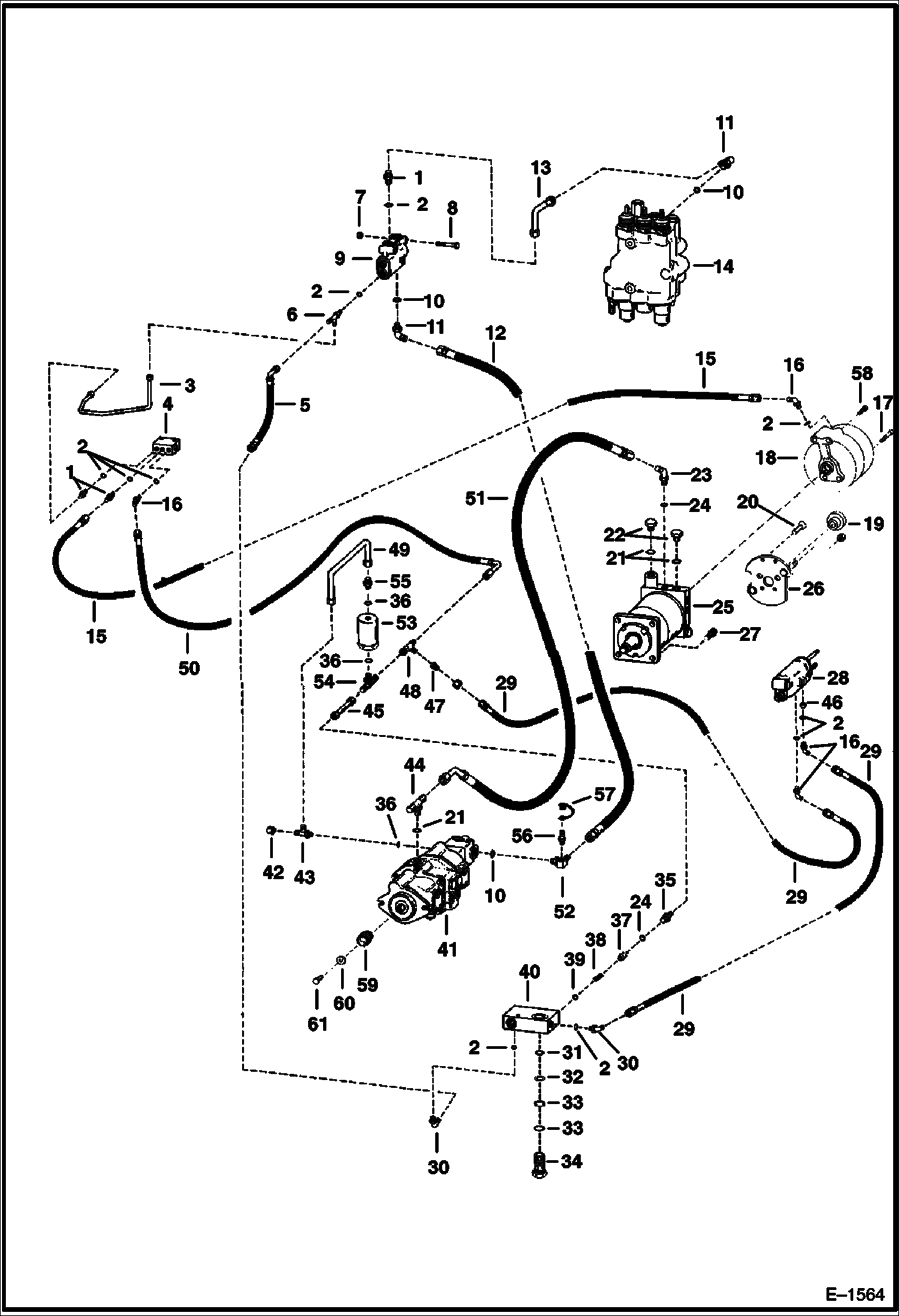

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY (S/N 11999 & Below) HYDROSTATIC SYSTEM

1

15K3

CONNECTOR W/Ref. 2

2

79K4

O RING 10

3

6585442

TUBE

4

VALVE brake assy.

5

6584556

HOSE

6

21K3

CONNECTOR

7

85D5

NUT 5

8

17C536

BOLT

9

6599775

VALVE See Illustration PRIORITY VALVE/ B6915 PRIORITY

10

79K10

O RING 10

11

17K7

ELBOW W/Ref. 10

12

1301877

HOSE ASSY

13

6585204

TUBE

14

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 See Illustration VALVE/ B20571 CONTROL

15

1516790

HOSE

16

18K3

ELBOW W/Ref. 2

17

85D8

NUT, 5

18

BRAKE See Illustration BRAKE/ E1707 See Illustration BRAKE/ C2834 See BTI227

18

6585588

BRAKE ASSY

19

6584867

BUSHING pilot

20

95G816

SCREW

21

79K12

O RING 10

22

24K8

PLUG W/Ref. 21

23

18K6

FITTING W/Ref. 24

24

79K8

O RING 10

25

MOTOR See Illustration HYDROSTATIC MOTOR/ D1679

26

PLATE NLA - Was 6584866 - A

27

94G820

BOLT

28

SERVO See Illustration SERVO/ B20577

29

1516789

HOSE

30

17K3

ELBOW W/Ref. 2

31

79K16

O RING 10

32

6562655

WASHER

33

1K127

O-RING 10 Was 93K127 - A

34

6585546

BOLT hollow

35

6585571

ADAPTER

36

79K6

O RING 10

37

6585438

POPPET

38

SPRING NLA - Was 217685 - A

39

6630217

SHIM Not Use W/Adjustable Adapter

40

6585202

BLOCK

41

6599901

PUMP See Illustration HYDROSTATIC PUMP/ B20574

42

36K5

CAP

43

21K5

TEE W/Ref. 36

43

17K5

ELBOW W/Ref. 36

44

6561477

TEE W/Ref. 21

45

6585570

TUBE

46

6630273

ORIFICE 0.07

47

9K1

ADAPTER

48

13K5

TEE

48

TEE NLA - Was 6585956 - A

49

6585569

TUBE

50

6585443

HOSE

51

6585214

HOSE

52

763818

ELBOW W/Ref. 10

52

6585958

ELBOW W/Ref. 10

53

6630521

FILTER See Illustration REAR AUX. IN-LINE FILTER/ B17468

54

19K5

FITTING W/Ref. 36

55

15K5

FITTING W/Ref. 36

56

6630813

COUPLER diagnostic

57

6630367

CAP

58

73G832

BOLT

59

7106572

ADAPTER, SHAFT Was 6558924 - A

60

616783

WASHER

61

18C616

BOLT 5
