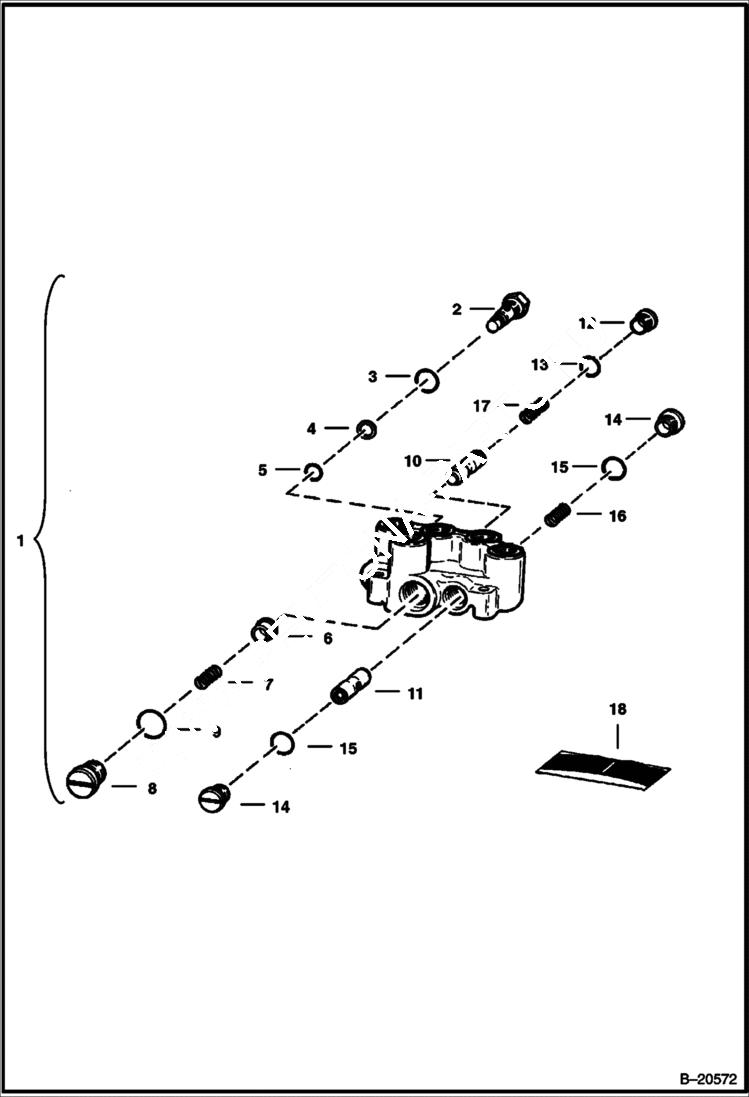

Запчасти Bobcat Articulated Loaders BUCKET POSITION VALVE (S/N 12026 & Below) HYDRAULIC SYSTEM

1

VALVE NLA - Was 6599776 - A

2

947751

PLUG

3

O-RING NSS

4

WASHER NSS - back-up

5

O-RING NSS

6

947717

PLUNGER

7

947737

SPRING

8

6511372

PLUG W/Ref. 9

9

58K111

O RING 10

10

SPOOL NSS

11

SPOOL NSS

12

6630119

PLUG W/Ref. 13

13

58K114

O RING 10

14

6630120

PLUG W/Ref. 15

15

58K115

O RING

16

6630121

SPRING

17

6630115

SPRING

18

6630130

SEAL KIT W/Ref. 3-5, 9, 13 & 15
