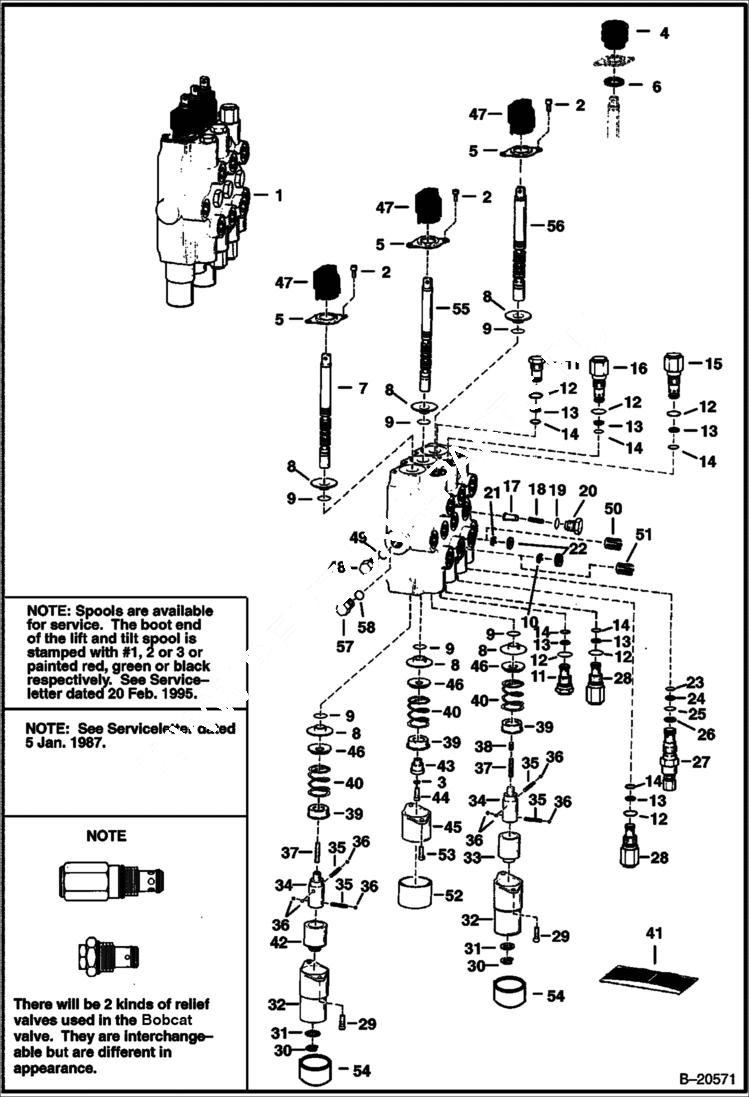

Запчасти Bobcat Articulated Loaders VALVE HYDRAULIC SYSTEM

1

VALVE NLA - REF. 2-53 - BEFORE ORDERING REPAIR PARTS, MAKE SURE THAT THIS IS THE CORRECT STYLE VALVE . ALSO REF. VALVE on Ill. E2252 - VALVE SHOWN HERE USES STAMPED BOOT RETAINERS, REF. 5, WHICH FIT F

1

SHORT BLOCK NLA - W/REF. 2-10 - Order 6802997 - WAS 6537937 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BOOT NLA - Order Ref. 47 - Was 6592122 - A

5

6592123

RETAINER

6

FILTER NLA - sintered - Order Ref. 47 - Was 6592124 - A

7

6592119

SPOOL Auxiliary - Was NSS - D

8

6592103

BUSHING See Serviceletter Dated 5 Jan. 87

8

6538466

BUSHING With part no. 6538466 stamped on top

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

9

6646372

SEAL See BTI374 quad ring seal

10

6592111

ORIFICE .154/.161

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

14

6677106

O-RING Backup Washer Not Required

15

6667549

VALVE relief - W/Ref. 12-14 - Was 6661345 - A

16

6682568

VALVE anti-cav. check - W/Ref. 12-14 - SEE NOTE - Was 6599162 - A

17

6592115

SEAT

18

6592117

SPRING, LOAD CHECK

19

79K8

O RING 10

20

6592116

NUT load check

21

6592112

ORIFICE .187/.195

22

6593680

RETAINER

23

O-RING NSS

24

WASHER NSS - back-up

25

O-RING NSS

26

WASHER NSS - back-up

27

6676199

VALVE main relief - W/Ref. 23-26 - Was 6649321 - A

28

6599161

RELIEF VALVE relief - W/Ref. 12-14 - See Note

29

6588163

SCREW 7/8'' - Was 69G000412B - A

29

29G416

BOLT 1.00''

30

799119

RING

31

6592098

WASHER

32

BONNET NLA - W/.25'' Flange - Order 6589226 , 6631704 & 2 of 6588982 - Was 6592094 - A

32

6589226

COVER, END 0.63'' flange

33

6592096

SLEEVE

34

6587575

ADAPTER Was 6592099 - A

35

6592107

SPRING

36

6592105

BALL

37

6586918

SCREW Was 6535747 - A

38

PLUG NLA - Plastic - Order 6596807 plug & 54K-20002 O-Ring - Was 6592752 - A

38

6596807

PLUG plastic - 0.46'' long

38

54K20002

O'RING 10

39

6592100

COLLAR

40

6587580

SPRING Was 6592106 - A

41

6803606

SEAL KIT See BTI374 - Ref. 4, 6, 9,12-14, 19, 23-26 & 29 - Was 6803606 - A

41

6816250

KIT, SEAL See BTI374 - Ref. 4, 6, 9 & 29 - For One Spool - Was 6803605 - A

41

6661328

SEAL KIT ref. 23-26 - Was 6592474 - A

41

6809425

SEAL KIT ref. 12-14 & 19 - Was 6586461 - A

42

6593349

SLEEVE

43

6592109

ADAPTER

44

6588166

SCREW Was 74G000416B - A

45

BONNET NLA - W/.25'' flange - order 6587633 , 6662848 & 2 of 6588164 - Was 6592097 - A

45

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

46

7211397

WASHER, SPRING Was 6587523 - A

47

6587763

BOOT See Note - Was 6583727 - A

48

47K7

PLUG

49

79K10

O RING 10

50

6587318

RESTRICTOR 0.19

51

6532633

RESTRICTOR 0.153

52

6662848

CAP Use with 6587633 bonnet

53

69G414

BOLT Was 6588164 - A

54

6660644

CAP

55

6666585

SPOOL Tilt - #1 or Red

55

6666586

SPOOL Tilt - #2 or Green

55

6666587

SPOOL Tilt - #3 or Black

56

6666582

SPOOL Lift - #1 or Red

56

6666583

SPOOL Lift - #2 or Green

56

6666584

SPOOL Lift - #3 or Black

57

47K9

PLUG 1.187 - 12

58

79K14

O RING 10
