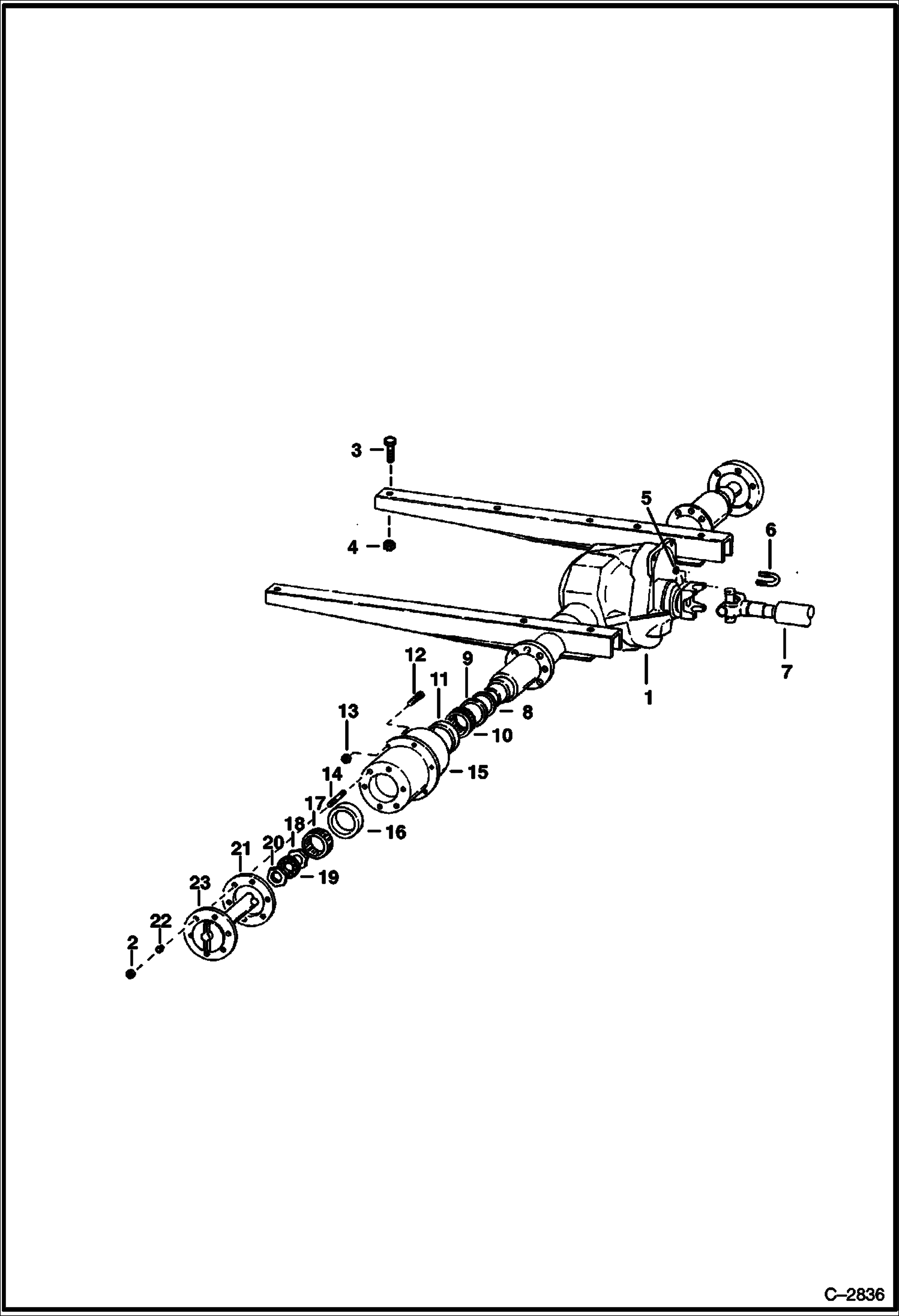

Запчасти Bobcat Articulated Loaders REAR DIFFERENTIAL & HUB ASSY. DRIVE TRAIN

1

DIFFERENTIAL See Illustration REAR DIFFERENTIAL/ C2837 REAR - W/Ref. 1 & 23 - LESS REF. 2-22

2

86D8

NUT

3

17C1224

BOLT

4

85D12

NUT, 5

5

86D6

NUT

6

954530

U BOLT Was 954530B - A

7

6598357

SHAFT drive

8

6584010

WASHER seal

9

5203689

SEAL

10

710791

CONE

11

710790

BEARING

12

6709170

BOLT, WHEEL Was 6559502 - A

13

6564669

NUT, 10 Was 6519169 - A

14

6584009

STUD

15

6584007

HUB

16

660181

CUP

17

1313674

BEARING

18

6584032

NUT

19

6584034

WASHER lock

20

6584033

NUT

21

GASKET NLA - Use 6983289 - Was 6584068 - A

22

6584036

WASHER cone

23

AXLE NLA - Was 6598450 - A
