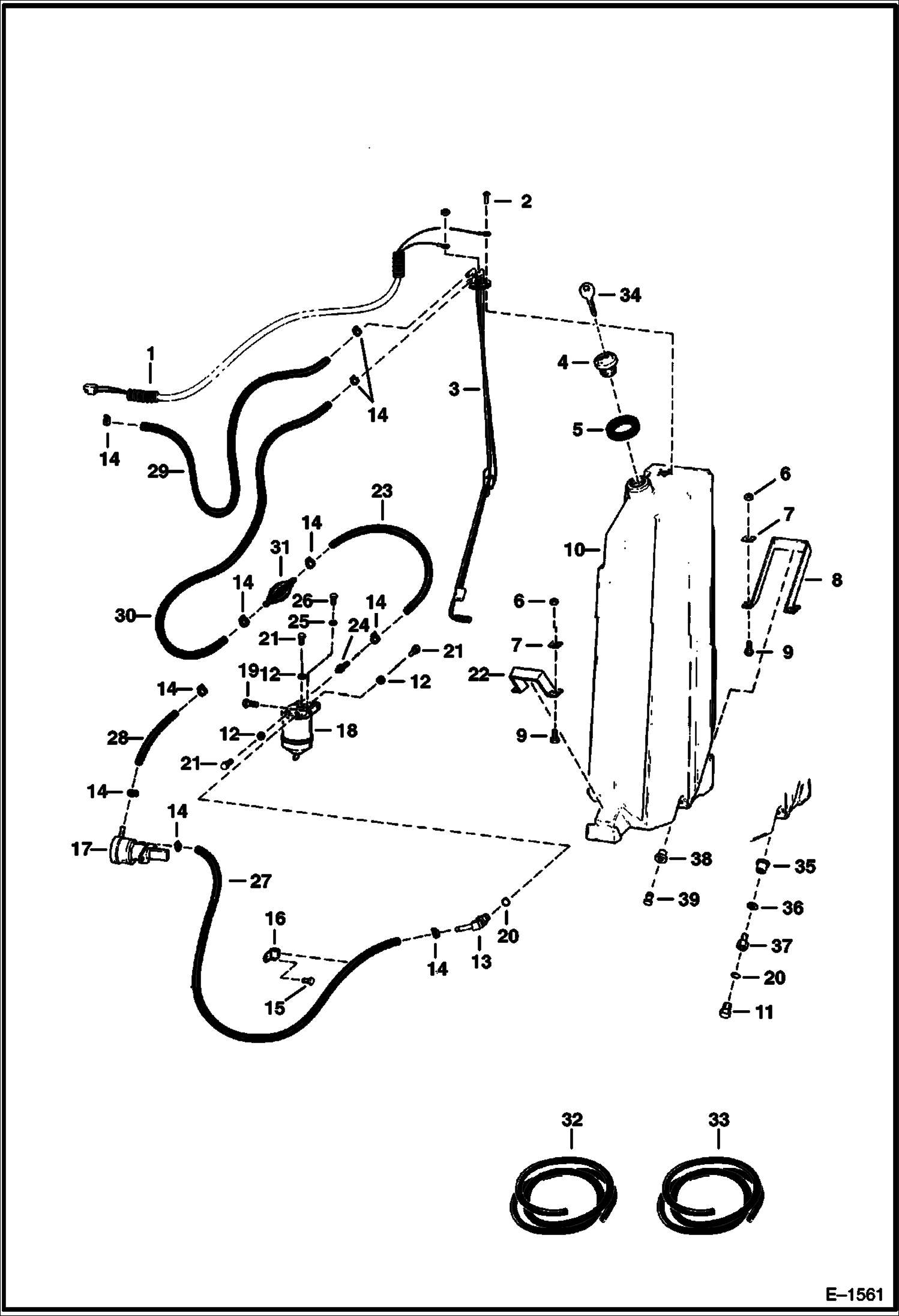

Запчасти Bobcat Articulated Loaders FUEL SYSTEM MAIN FRAME

1

6585255

HARNESS wire

2

85G1006

SCREW

3

6538813

SENDER Was 6585182 - A

4

6661114

CAP. DIESEL Green - Was 6632468 - A

4

CAP NLA - locking - W/Ref. 34 - Code GC020 - Was 6654373 - A

4

6661696

CAP, FUEL LOCKING locking - W/Ref. 34 - Code PK510

5

6561561

GROMMET

6

85D6

NUT, 5 hex

6

NUT NLA - square - Was 24D000006B - A

7

6585286

WASHER square - Not Required with Square Nut

8

6585291

STRAP

9

17C612

BOLT 5

10

FUEL TANK NLA - Order 6538812 & 6538813 - Was 6585098 - A

10

6538812

FUEL TANK

11

40K4

PLUG W/Ref. 20

12

6515466

WASHER

13

6657083

ELBOW Was 6599488 - B

14

42HS04

CLAMP, HOSE Was 6515575 - A

15

6CM1220

BOLT

16

30H40

CLAMP

17

6598121

FUEL PUMP See Illustration INJECTION PUMP/ B3612

18

6560348

FITLER, FUEL ASSY See Illustration FUEL FILTER/ B5653

19

17C616

BOLT 5

20

79K5

O RING 10 Was 91F000004B - A

21

6515682

PLUG

22

6585290

STRAP

23

HOSE NLA - Order Ref. 32

24

6560355

FITTING

25

6515468

WASHER

26

6515676

PLUG

27

HOSE NLA - Order Ref. 33

28

HOSE NLA - Order Ref. 33

29

HOSE NLA - Order Ref. 32

30

HOSE NLA - Order Ref. 32

31

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

32

6577821

HOSE bulk - sold per foot - Was 672221 - A

33

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

34

6587458

KEY Code PK510

34

6654374

KEY Code GC020

35

6630036

FITTING

36

25E20

WASHER

37

6624546

FITTING

38

6553411

BUSHING 0.38'' ID

39

6599645

PLUG, STEEL
