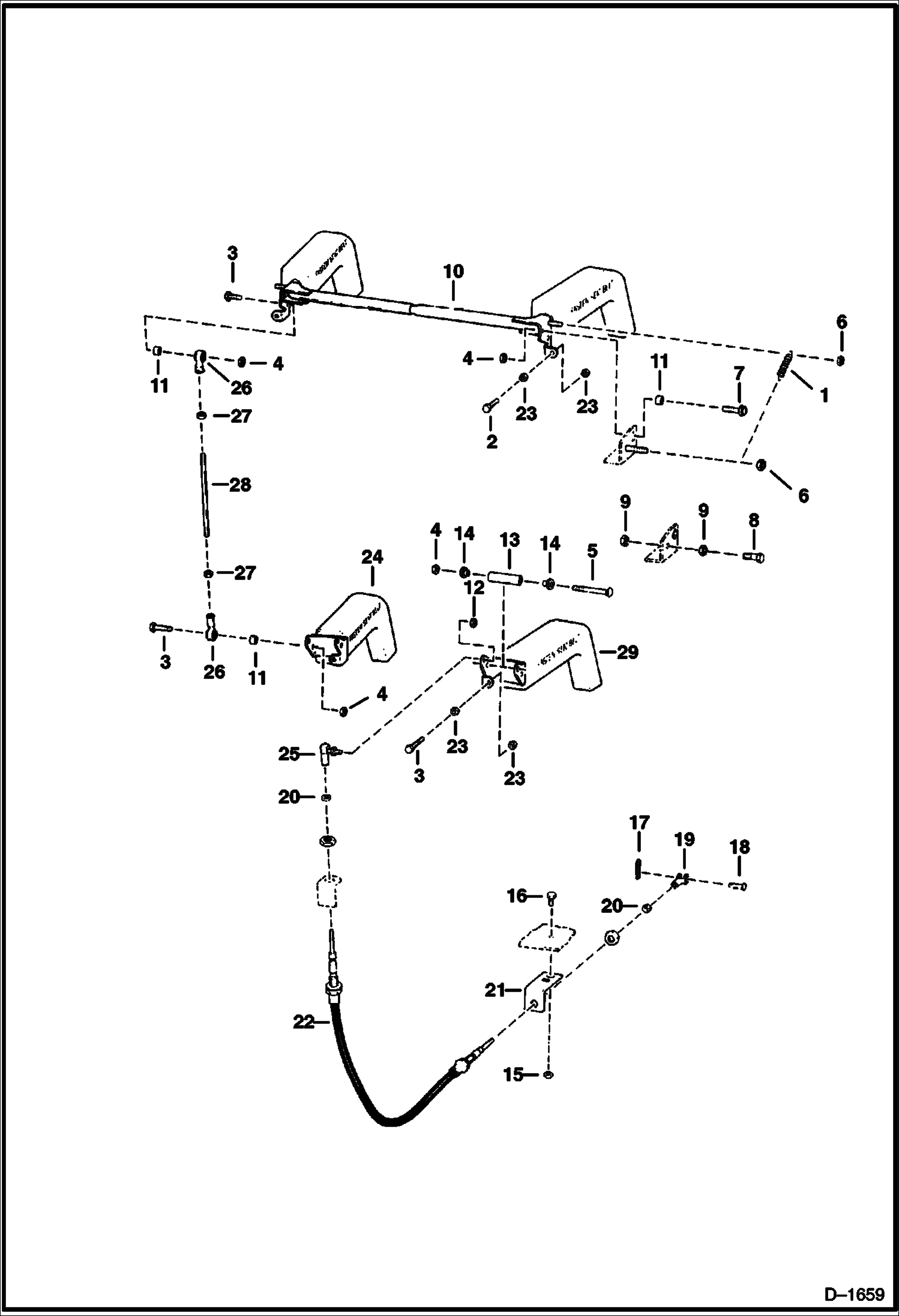

Запчасти Bobcat Articulated Loaders SEAT BAR MAIN FRAME

1

6584584

SPRING

2

17C620

BOLT

3

17C624

BOLT 5

4

85D6

NUT, 5

5

7C672

BOLT

6

85D8

NUT, 5

7

35C620

BOLT 5

8

17C632

BOLT 5

9

61D6

NUT 5

10

6585468

SEAT BAR Upper

11

6584582

BUSHING

12

86D4

NUT

13

6585477

BUSHING

14

6631646

BUSHING

15

6599336

NUT Was 85D000006B - B

16

17C616

BOLT 5 Was 17C000512B - B

17

1F208

PIN

18

4F4051

PIN

19

2J4200

CLEVIS

20

8D4

NUT

21

6585466

BRACKET

22

6630192

CABLE

23

7D6

NUT

24

6585461

SEAT BAR L.H.

25

6554858

BALL JOINT

26

6512954

ROD END R.H. threads

27

8D6

NUT 5

28

6585478

ROD

29

6585465

SEAT BAR R.H.
