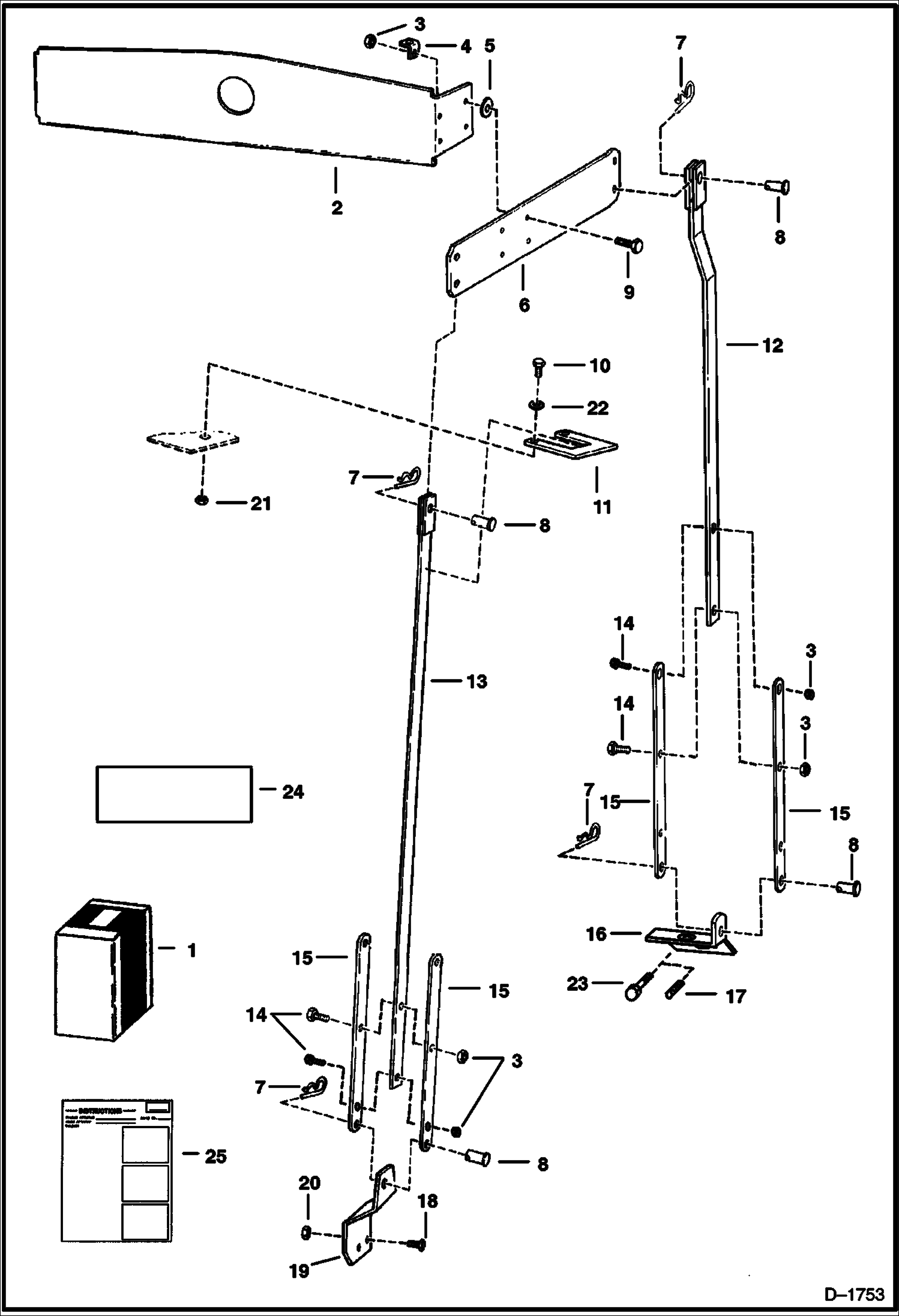

Запчасти Bobcat Articulated Loaders SINGLE POINT LIFT ACCESSORIES & OPTIONS

1

6584598

KIT ref. 2-25

2

6584623

BRACKET

3

85D8

NUT, 5

4

6584632

MOUNT flashers

5

25E22

WASHER

6

6584622

BRACKET

7

1320075

PIN, COTTER

8

6567838

PIN

9

17C824

BOLT 5

10

17C616

BOLT 5

11

6584629

PLATE

12

6584627

STRAP rear

13

6584624

STRAP Front

14

17C828

BOLT

15

6584613

STRAP

16

6584614

MOUNT L.H.

16

6584617

MOUNT R.H.

17

2757179

ROD threaded

18

17C1020

BOLT 5

19

6584600

BRACKET L.H.

19

6584611

BRACKET R.H.

20

85D10

NUT, 5

21

85D6

NUT, 5

22

25E18

WASHER

23

35C824

BOLT

24

6565932

DECAL safety

25

6570066

INSTRUCTIONS
